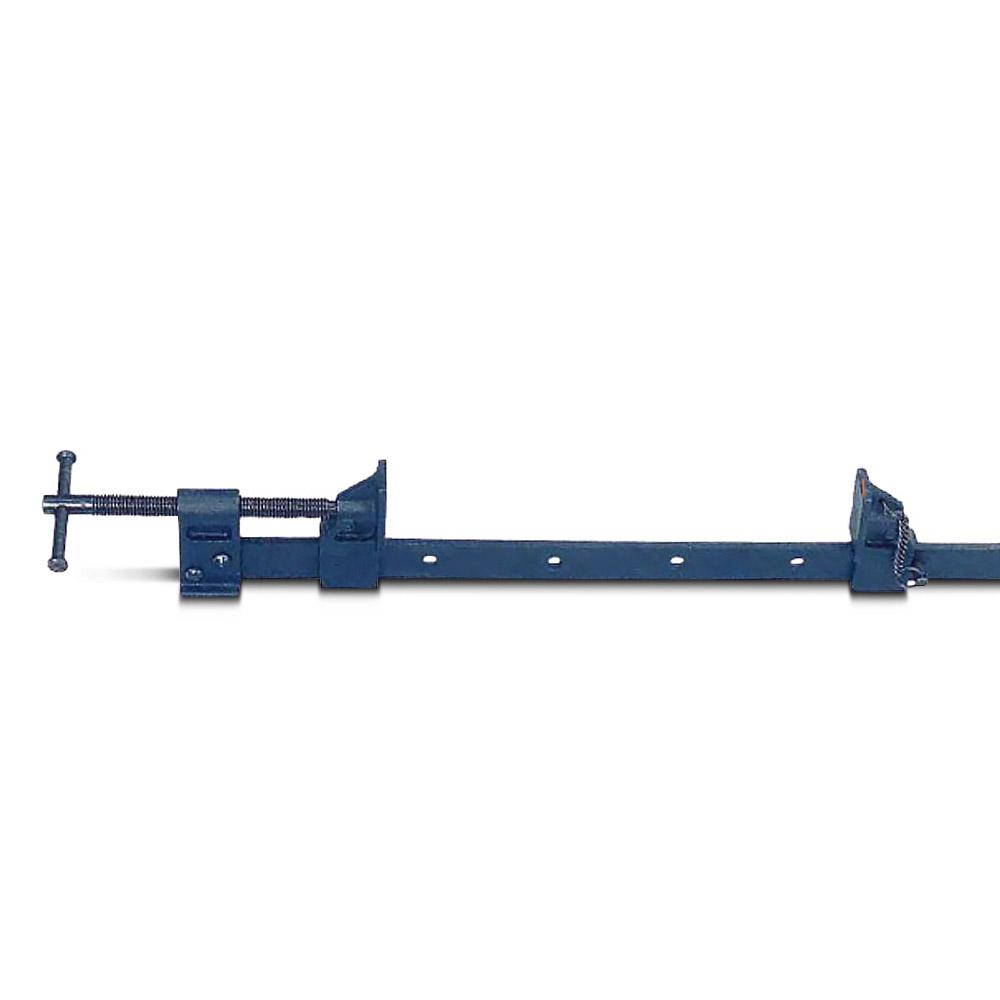

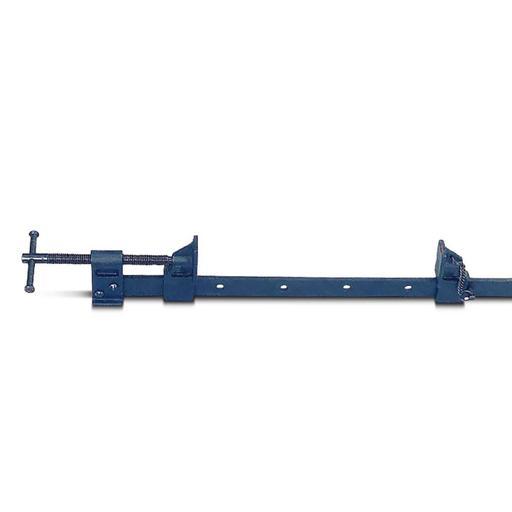

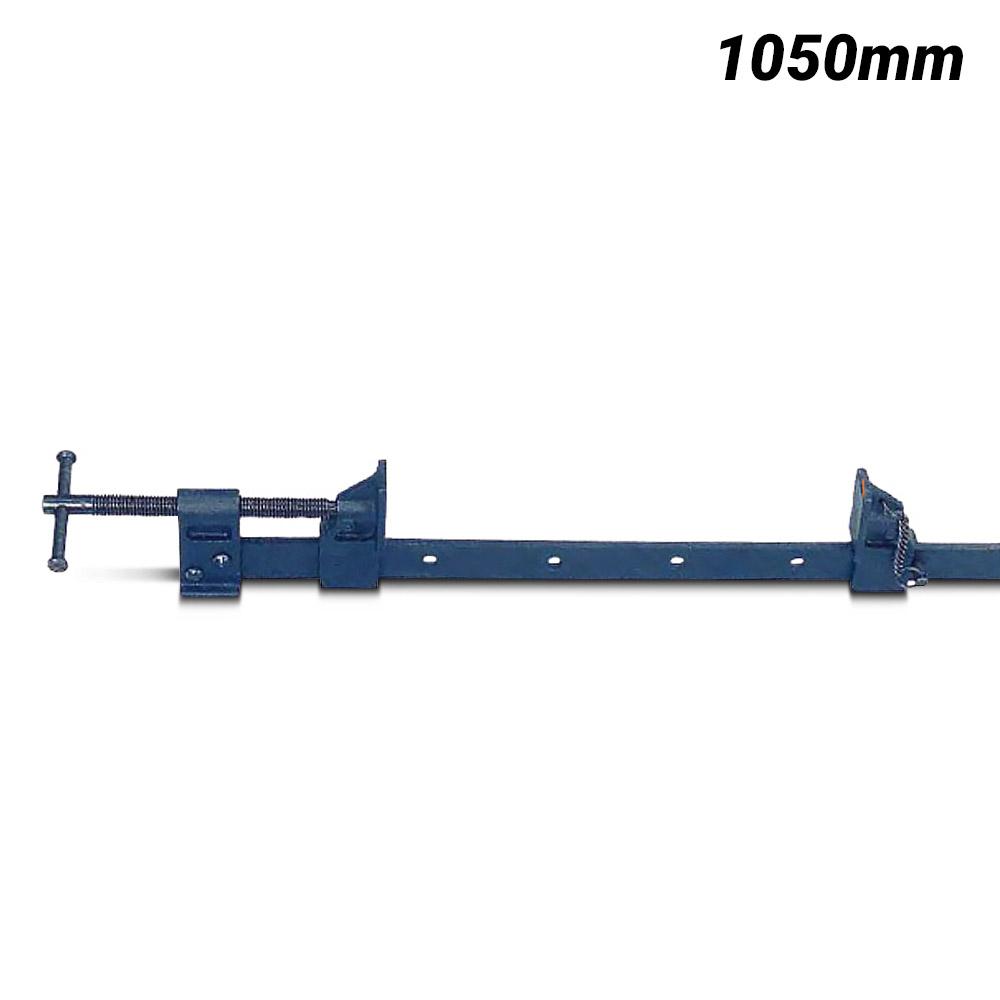

Groz GZ-39114 (SBC/48) 1050mm (41-1/4") Rectangular Section Sash Clamp

Groz GZ-39114 (SBC/48) 1050mm (41-1/4") Rectangular Section Sash Clamp

These Sash Clamps are especially useful for clamping large section workpieces during fabrication, gluing in joinery, carpentry and boat building.

Features:

• The bars are made from drawn steel with a section of 32mm x 6mm
• Malleable iron head and slides provide rigidity and strength even under heavy tension
• Both head and slide have a flat bottom allowing the bar to stand upright without support
• The head is fitted square to the bar with 1.5° to 2° taper for true parallel clamping action
• Main screw and handle are made from high-grade steel and have a blackened finish for increased resistance to corrosion
• The screw has rolled Acme threads that impart extra strength and are wear resistant.

Specifications:

• Clamp Capacity: 1050mm
• Bar Length: 1200mm
• Throat Depth: 50mm
• Width of Clamp Face: 30mm
