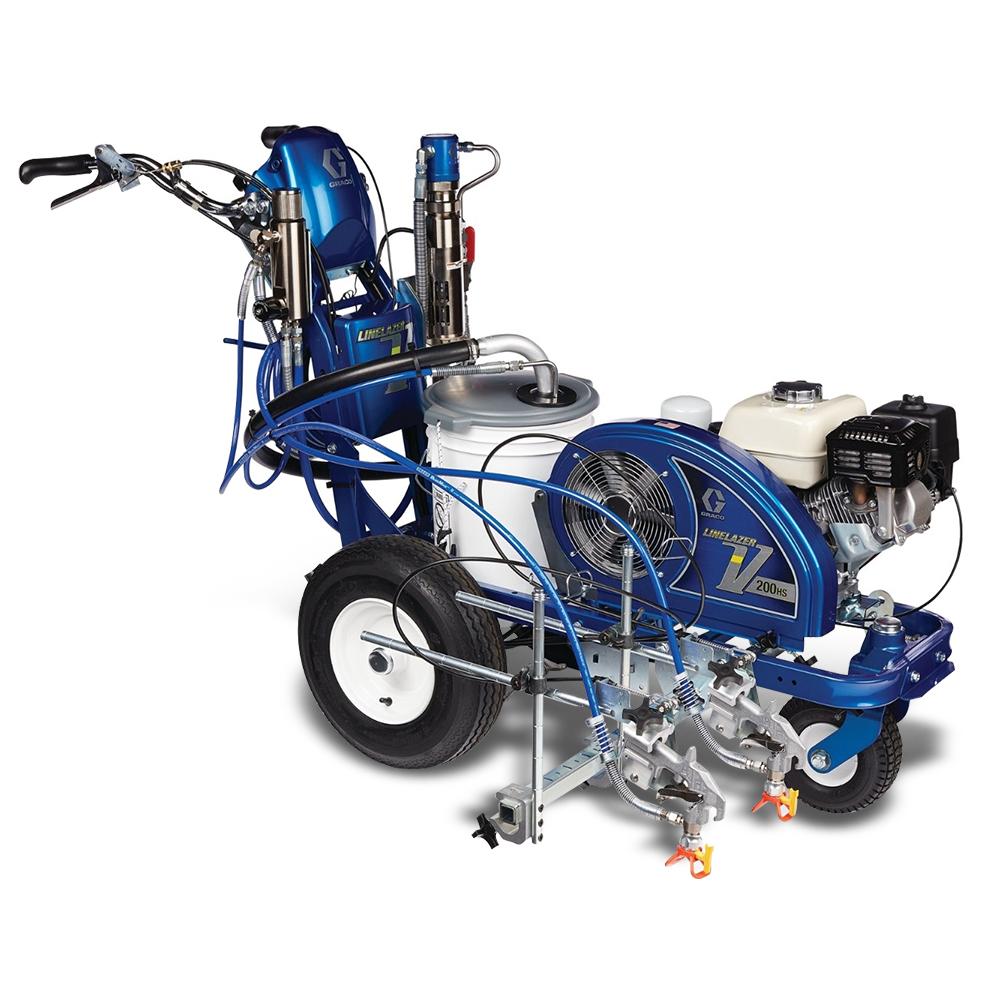

Graco 17H461 13HP 2 Gun LineLazer V 200HS Standard Gas Hydraulic Airless Line Striper

Graco 17H461 13HP 2 Gun LineLazer V 200HS Standard Gas Hydraulic Airless Line Striper

The LineLazer V 200HS Standard Series is a true workhorse designed for high performance striping on demanding jobs like large parking lots, airports, and city jobs that require precise lines.
The LineLazer V Standard Series is ideal for the higher production re-striping contractor completing and considering larger re-striping jobs with basic pattern applications requiring a single-color, single or dual gun striping solution.

Includes:

• 1 x Airless Hose
• 2 x Flex Plus gun (Manual)
• 2 x RAC V Tip Guard with Tip

Features:

• LiveLook Display with SmartControl
• Striping Information At-A-Glance
• Track, measure and control every aspect of your job
• Accessible proof-of-job data from the J-Log System with USB Download
• Consistent spraying pressure for perfect lines
• Honda® GX Engine, Reliable, Easy-to-Start Power
• Contractor-preferred — excellent power and proven reliability
• Oil Alert shuts down engine to prevent damage if oil level drops too low
• EasyMark Gun Adjustment System
• Easy Gun Adjustments
• Perfect gun alignment every time with easy-to-use guide mark system
• 2-gun capability with QuikSelect gun selector
• EZ Align Wheel System
• Perfect Striper Tracking
• Simple front wheel alignment, no special tools needed
• DualComfort Handlebar System
• Easy Handlebar Adjustment
• Endurance Chromex Pump
• Reliable, Long-Life Pump
• Industry-best pump performance — field-proven design
• Handle the most demanding materials with long-life rod treatment
• 4X harder than ordinary chrome
• High-Efficiency Hydraulic Motor
• Uninterrupted Performance
• No-Stall design
• High-Capacity Cooling System
• Reduced Downtime
• Innovative design allows the pump to run cooler and more efficiently
• Easier and more thorough fluid changes
• Reservoir cooling fins deflect more heat
• No special hydraulic fluid needed
• QuikSelect Gun Selector
• Simple Gun Control
• Independently control of two guns with one lever — solid/skip
• Easy Out Pump Filter
• Easy Pump Maintenance & Less Clogging
• Inside-out design means less mess with fewer tip clogs

Specifications:

• Max Tip Size:

  • 1 Gun: 0.047"
  • 2 Guns: 0.033"
• Max Flow: 8.14 LPM
• Max Pressure: 3300 psi
• Motor Type: Honda GX200
• Weight: 306Kg

Warranty:

• 12 Month Warranty
