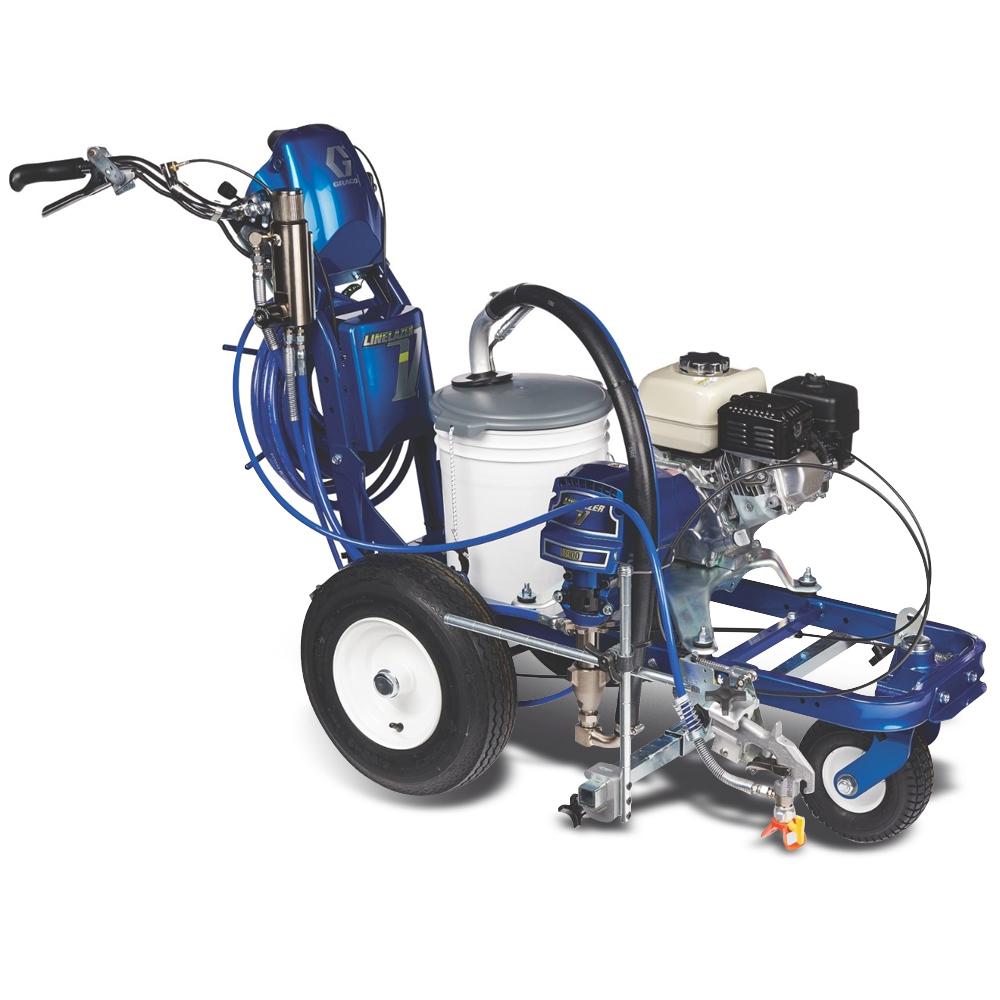

Graco 17H449 4HP 1 Gun LineLazer V3900 Standard Gas Airless Line Striper

Graco 17H449 4HP 1 Gun LineLazer V3900 Standard Gas Airless Line Striper

When it’s time for 1 or 2-gun airless line striping performance, the LineLazer V 3900 Standard Series striper is an excellent choice. These durable striping machines deliver consistent lines for all your basic striping needs.
The LineLazer V Standard Series is ideal for the higher production re-striping contractor completing and considering larger re-striping jobs with basic pattern applications requiring a single-colour, single or dual gun striping solution.

Includes:

• 1 x Tips
• 1 x Guard
• 1 x Gun
• 1 x Hose
• 1 x Pump Filter
• 1 x TSL

Features:

• LiveLook Display with SmartControl
• Striping Information At-A-Glance
• Track, measure and control every aspect of your job
• Accessible proof-of-job data from the J-Log System with USB Download
• Consistent spraying pressure for perfect lines
• Honda® GX Engine, Reliable, Easy-to-Start Power
• Contractor-preferred – excellent power and proven reliability
• Oil alert shuts down engine to prevent damage if oil level drops too low
• EasyMark Gun Adjustment System
• Easy Gun Adjustments
• Perfect gun alignment every time with easy-to-use guide mark system
• 2-gun capability with QuikSelect gun selector
• EZ Align Wheel System
• Perfect Striper Tracking
• Simple front wheel alignment, no special tools needed
• DualComfort Handlebar System
• Easy Handlebar Adjustment
• QuikSelect Gun Selector
• Simple Gun Control
• Independently control of two guns with one lever – solid/skip
• Endurance Chromex Pump
• Reliable, Long Life Pump
• Industry best pump performance – field proven design
• Handle the most demanding materials with long life rod treatment
• 4 times harder than ordinary chrome
• Easy Out Pump Filter
• Easy Pump Maintenance & Less Clogging
• Inside-out design means less mess with fewer tip clogs

Specifications:

• Pavement
• Turf

Specifications:

• Engine Model: GX120
• Fuel Tank Capacity: 2.5L
• Gun Activation: Manual
• Maximum Flow Rate: 4.7l/min
• Maximum Sound Pressure Level: 85.5dB(A)
• Maximum Tip Size (mm): 0.8890
• Maximum Working Pressure: 2270kPa
• Number of Guns: 1
• Number of Pumps: 1
• Overall Height: 1130mm x 1733mm x 870mm
• Power Rating: 4HP
• Power Source: Gas
• Series: 3900
• Weight: 104kg
