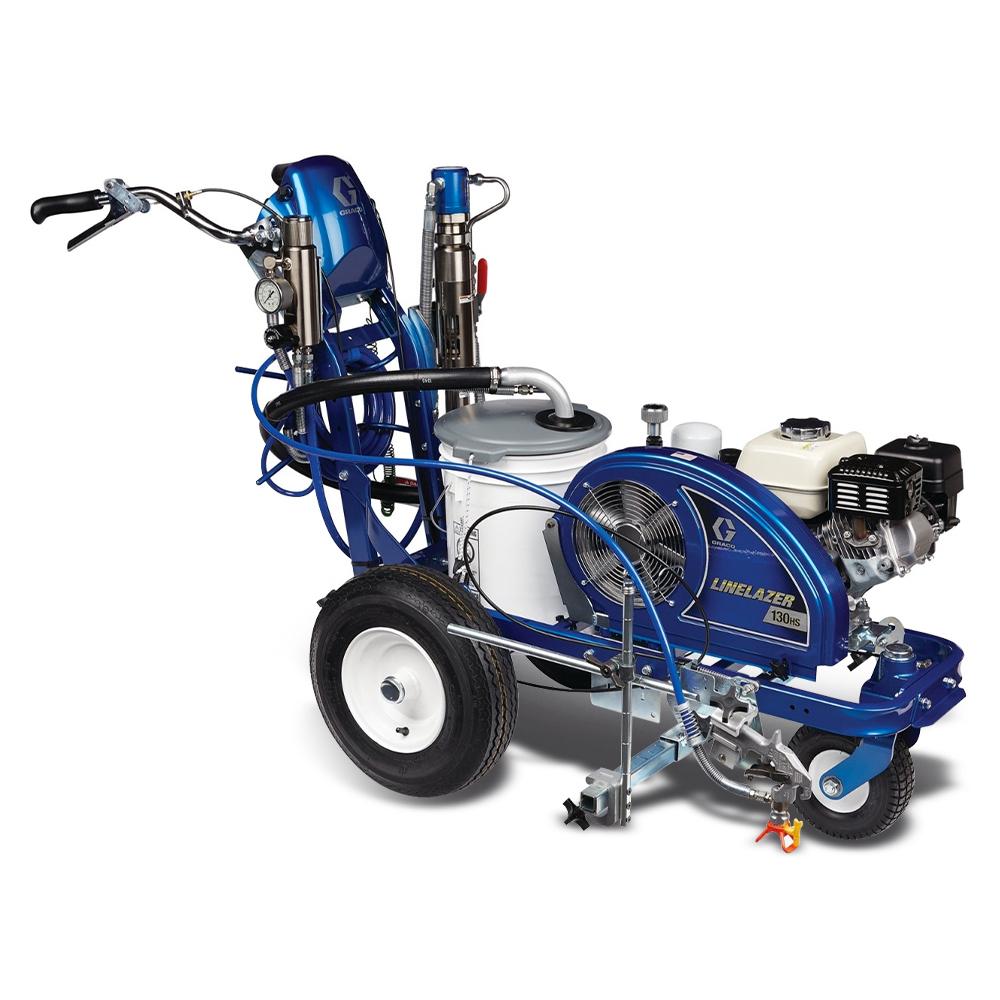

Graco 17H447 4HP 1 Gun LineLazer 130HS Standard Gas Hydraulic Airless Line Striper

Graco 17H447 4HP 1 Gun LineLazer 130HS Standard Gas Hydraulic Airless Line Striper

The LineLazer 130HS is the preferred hydraulic airless striping unit that consistently delivers everyday striping performance with proven power, day in and day out.

Includes:

• 1 x Tips
• 1 x Guard
• 1 x Gun
• 1 x Hose
• 1 x Pump Filter
• 1 x TSL

Features:

• EasyMark Gun Adjustment System
• Easy Gun Adjustments
• Perfect gun alignment every time with easy-to-use guide mark system
• 2-gun capability with QuikSelect gun selector
• EZ Align Wheel System
• Perfect Striper Tracking
• Simple front wheel alignment, no special tools needed
• DualComfort Handlebar System
• Easy Handlebar Adjustment
• QuikSelect Gun Selector
• Simple Gun Control
• Independently control of two guns with one lever – solid/skip
• Honda® GX Engine, Reliable, Easy-to-Start Power
• Contractor-preferred – excellent power and proven reliability
• Oil Alert shuts down engine to prevent damage if oil level drops too low
• Endurance Chromex Pump
• Reliable, Long Life Pump
• Industry best pump performance – field proven design
• Handle the most demanding materials with long life rod treatment
• 4 times harder than ordinary chrome
• High-Efficiency Hydraulic Motor
• Uninterrupted Performance
• No-stall design
• High-Capacity Cooling System
• Reduced Downtime
• Innovative design allows the pump to run cooler and more efficiently
• Easier and more thorough fluid changes
• Reservoir cooling fins deflect more heat
• No special hydraulic fluid needed
• Easy Out Pump Filter
• Easy Pump Maintenance & Less Clogging
• Inside-out design means less mess with fewer tip clogs
• Storage Compartment
• New compartment for tips, guards and miscellaneous items

Suitable For:

• Pavement
• Turf

Specifications:

• Engine Model: GX120
• Fuel Tank Capacity: 2.5L
• Maximum Flow Rate: 4.9l/min
• Maximum Sound Pressure Level: 96dB(A)
• Maximum Tip Size: 0.9398mm
• Maximum Working Pressure: 2270kPa
• Number of Guns: 1
• Number of Hoppers: 1
• Number of Pumps: 1
• Dimensions: 1130mm x 1733mm x 870mm
• Power Rating: 4HP
• Power Source: Gas Hydraulic
• Series: 130HS
• Weight: 119kg
