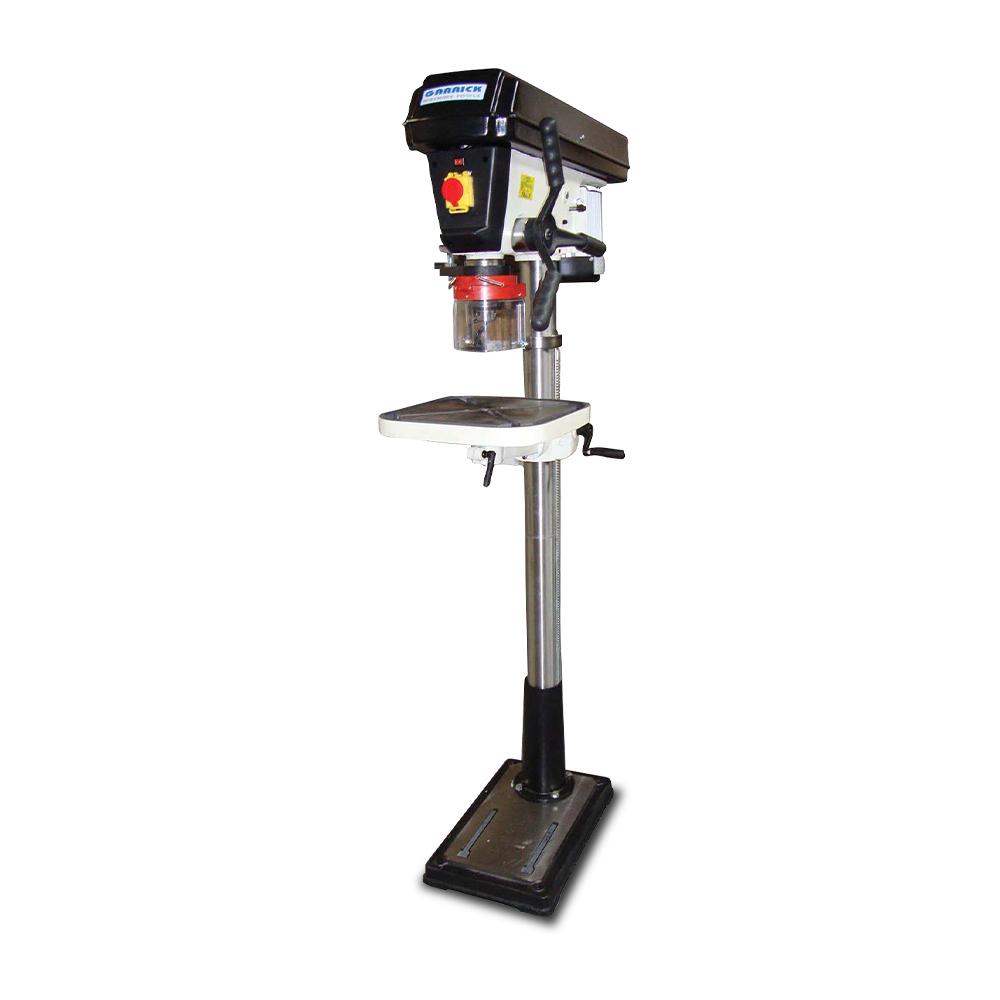

Garrick DP25 750W Heavy Duty Pedestal Drill Press

Garrick DP25 750W Heavy Duty Pedestal Drill Press

Includes:

• Drill Chuck & Arbor
• Chuck Key & Drill Drift

Features:

• Square tables for larger work area, with ‘T’ slots for solid clamping
• Tables tilt and rotate
• Solid one piece Cast Iron operating handles
• Safety Guard with flip up cover over chuck as standard
• Emergency stop switches
• Heavy-duty precision depth stops
• Quick action, positive motor adjustment for belt tensioning
• Rack & pinion table height adjustment
• Column & Quill precision machined from thick wall tube for rigidity
• Work light under head (bulb not included for transport reasons)
• Powerful 240V Aluminium TEFC motors

Specifications:

• Motor: 750W
• Max Drilling Capacity: 25mm
• Chuck Size: 3mm - 16mm
• Swing: 432mm
• Spindle Taper: MT3
• Spindle Travel: 80mm
• No. of Speeds: 12
• Speed Range: 120rpm - 2580rpm
• Overall Height: 1650mm
• Column Diameter: 80mm
• Quill Diameter: 52
• Table Dimensions: 345mm x 345mm
• Carton Dimensions: 1440 x 650 x 320
• Weight: 108kg
