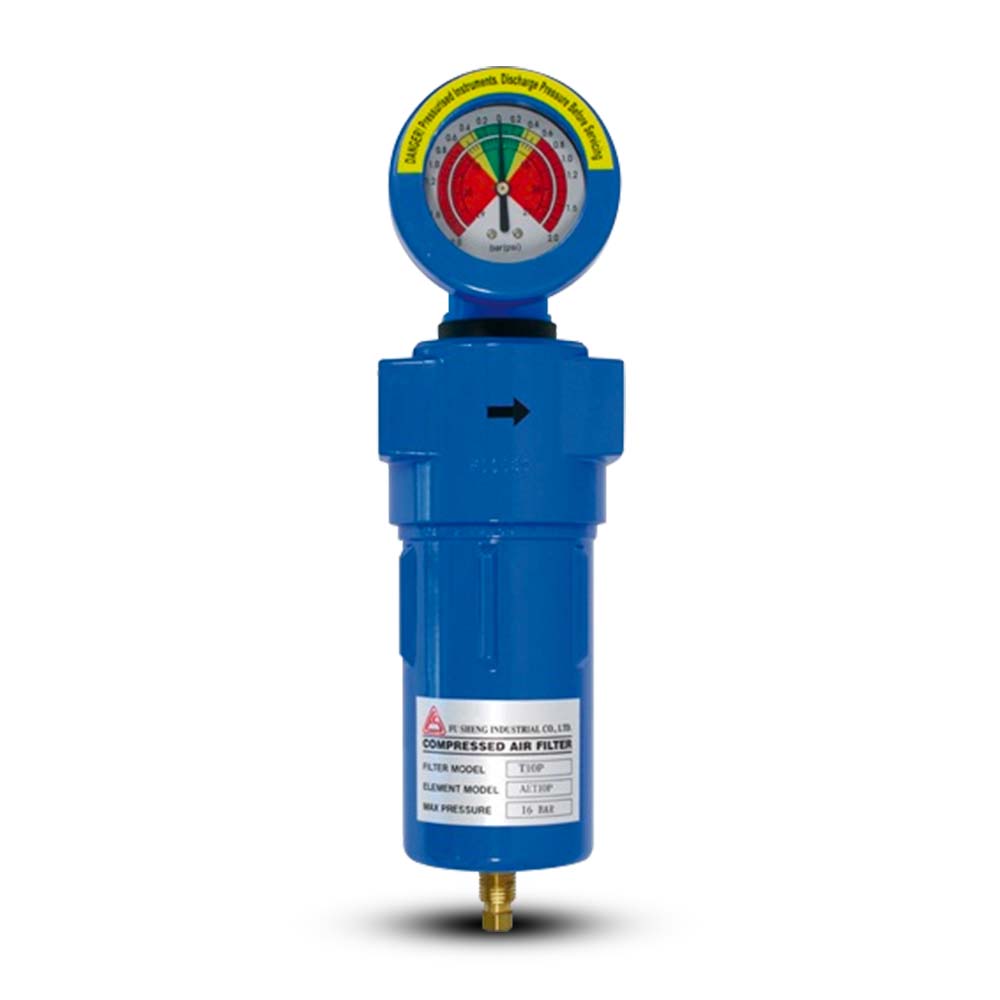

Fusheng FS T10C 1/2" C Grade Adsorption Compressed Air Filter

Fusheng FS T10C 1/2" C Grade Adsorption Compressed Air Filter

Industrial compressed air systems need to operate with clean and dry air to prevent damage to pneumatic plant, equipment and processes. The air discharged from a compressor contains excessive levels of particulate matter, oil and water that must be treated before the air can be used.

Atmospheric air typically contains more than 100 million pollutant particles per
cubic metre, mainly consisting of dust, hydrocarbons, viruses and bacteria. And when compressed in a pneumatic system this concentration increases to about 1,000 million particles per cubic metre. If not removed, these contaminants mix
together to form a damaging abrasive sludge.

A compressor’s suction air filter is designed only for protection of its internal components and not for the downstream pneumatic system. The compressor itself will also contribute wear particles and oil pollutants into the discharge air
stream.

It is therefore essential that almost every industrial compressed air system should be fitted with one or more filters and also a dryer downstream from the compressor in order to obtain the necessary air quality for the particular application. Fusheng offers a high premium selection of compressed air filters that are engineered to provide clean and technically oil-free air. They are available for purchase separately to upgrade an existing compressed air system or can be included as part of an entire Fusheng compressed air system package.

Features:

• Pleated filter element gives a larger effective filtration area, increased dirt holding capacity and higher air flow capacity.
• High efficiency filter element and housing design minimizes the operating pressure drop and energy consumption.
• Differential pressure gauge allows at-a-glance monitoring of the filter element’s condition.
• Robust aluminium filter housing ensures a long, rust free service life and enables quick filter element replacement.
• Float-type drain valve automatically and reliably discharges accumulated oil and water.
• Replacement filter elements and spare parts are readily available for lifetime in-service support.
• Grade P: A coarse particulate type filter for removal of larger particles and droplets. It should be installed downstream from a reciprocating air compressor and prior to any dryer.

Specifications:

• Filter Grade: C
• Filter Type: Adsorption
• Nominal Initial Pressure Drop: 0.1bar
• Inlet & Outlet Ports: 1/2" BSP
• Flowrate Capacity @ 7 bar: 1.32m3/min / 47cfm
• Dimensions: 87mm x 233mm x 24mm
• Weight: 1.4kg
