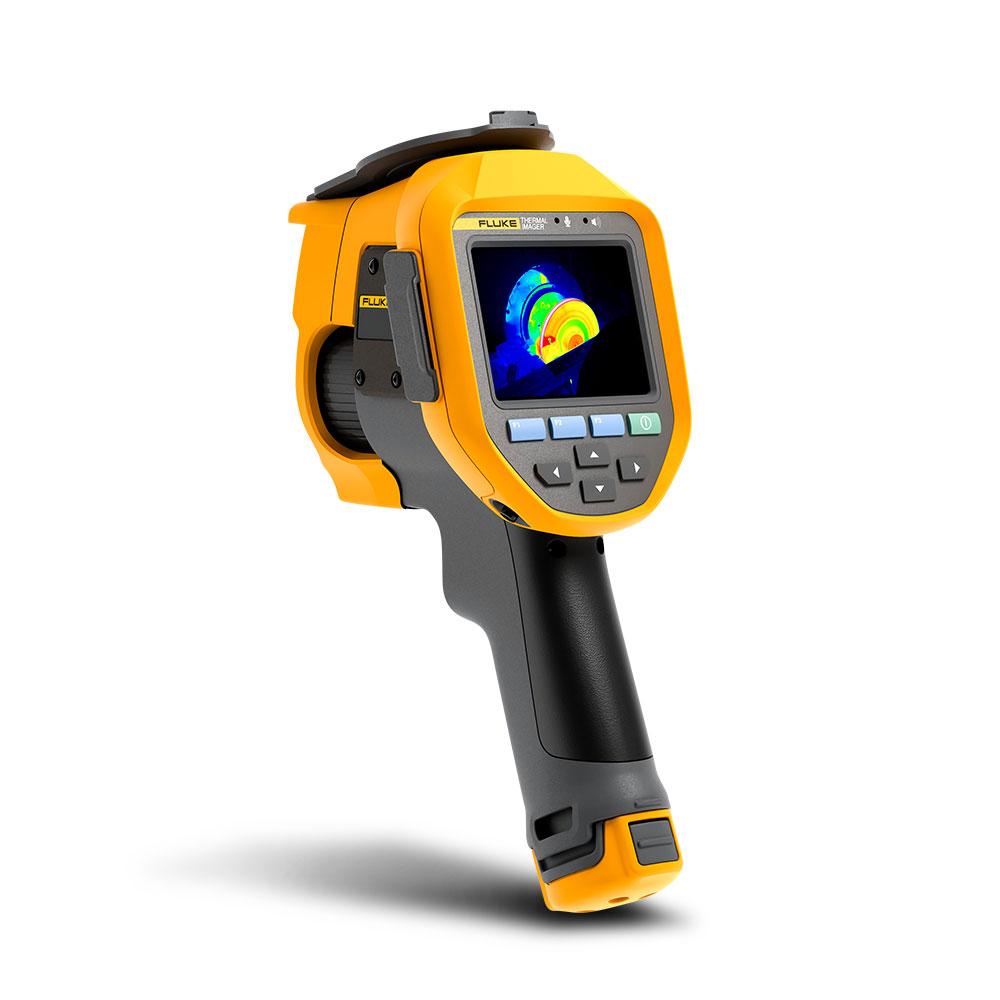

Fluke TI300U-30HZ/AP (5499069) 384 x 288 Infrared Thermal Camera

Fluke TI300U-30HZ/AP (5499069) 384 x 288 Infrared Thermal Camera

The NEW Fluke Classic Ultra Thermal Camera Series introduces a leading edge visual infrared experience. Featuring Flukes smartest, most intuitive user interface with increased thermal sensitivity to capture the smallest differences, users will enjoy the latest technology for on-screen clarity. The Fluke Ti480U/401U/300U Classic Ultra Series are sharper Infrared Cameras with improved spatial resolution and UltraFocus focusing technology to support industry professionals.

The Classic Ultra Series boasts substantial progress in image quality, focus speed and test functions, taking performance to a new level with the inclusion of the new sensor. By retaining the classic industrial design, these thermal cameras will continue to support the user experience and improve efficient practical workflow.

Features:

• Superior image sharpness for clearer images to target problem areas with up to 384 pixels and spatial resolution of 1.14 mrad
• UltraFocus dual-engine focusing technology allows the user to automatically focus in one second
• Laser-assisted, continuous auto focus allows desired targets to be easily selected
• Wide temperature ranges up to 650ºC to monitor processes with higher requirements and explore more varied applications
• Includes the SmartView IR software, enabling users to process thermal videos, analyse data, export reports, and finish projects

Specifications:

• Basic Parameters:
  • IR Resolution: 384 x 288
  • Thermal Sensitivity (@30ºC): 75 mk (0.075ºC)
  • Spectral Response: 7-14μm
  • Image Frame Rate: 30 Hz
  • Spacial Resolution: 1.14mrad
  • Minimum Imaging Distance: 0.1m

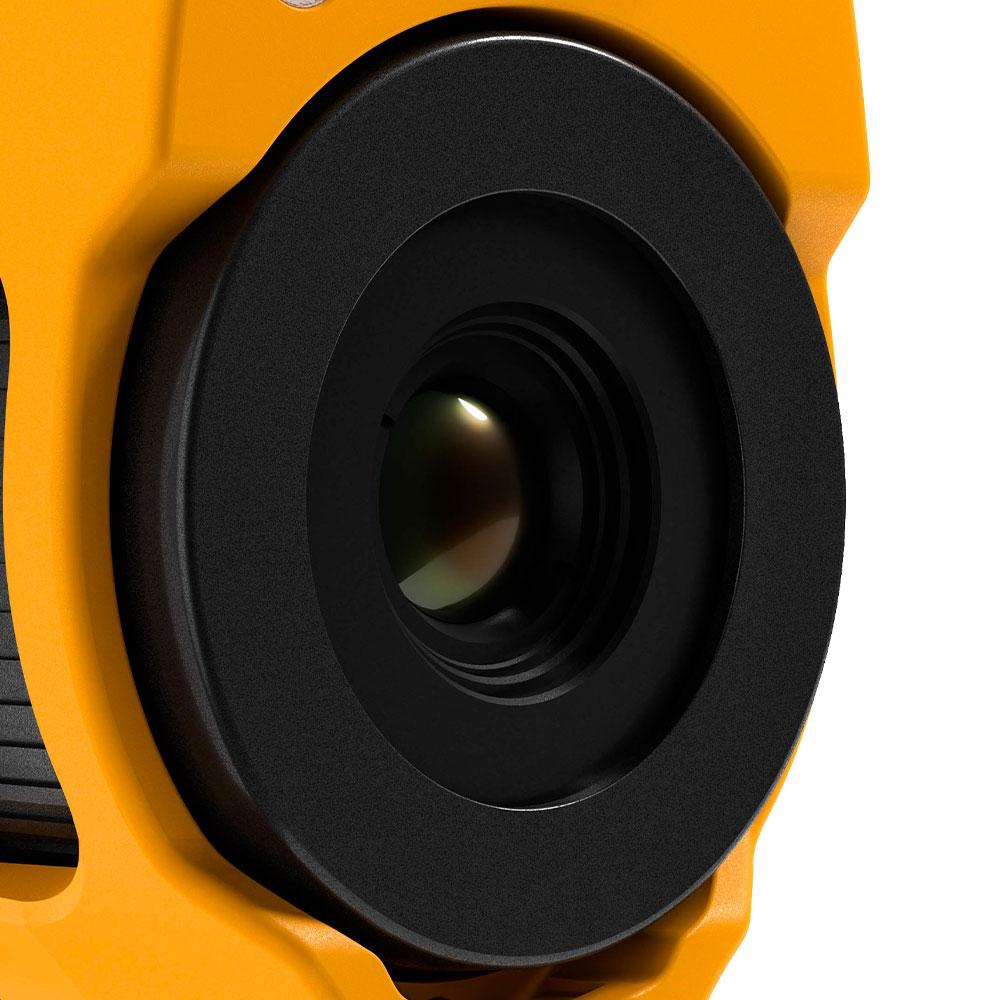

  • Lens Focal Distance: f15
  • Focus: Auto Focus
  • Lens Recognition: Auto
  • Digital Zoom: 1-4x
• Measurement Analysis:
  • Temperature Range: -20ºC to 650ºC
  • Temperature Measurement Range: -20ºC to 120ºC / 0ºC to 650ºC
  • Intelligent Range: Yes
  • Temperature Accuracy: ±2°C or 2%, whichever is greater (@ 15°C to 35°C ambient temperature)
  • Temperature Measurement Area: Spots: 16, Lines: 8, Areas: 12
• Image Display:

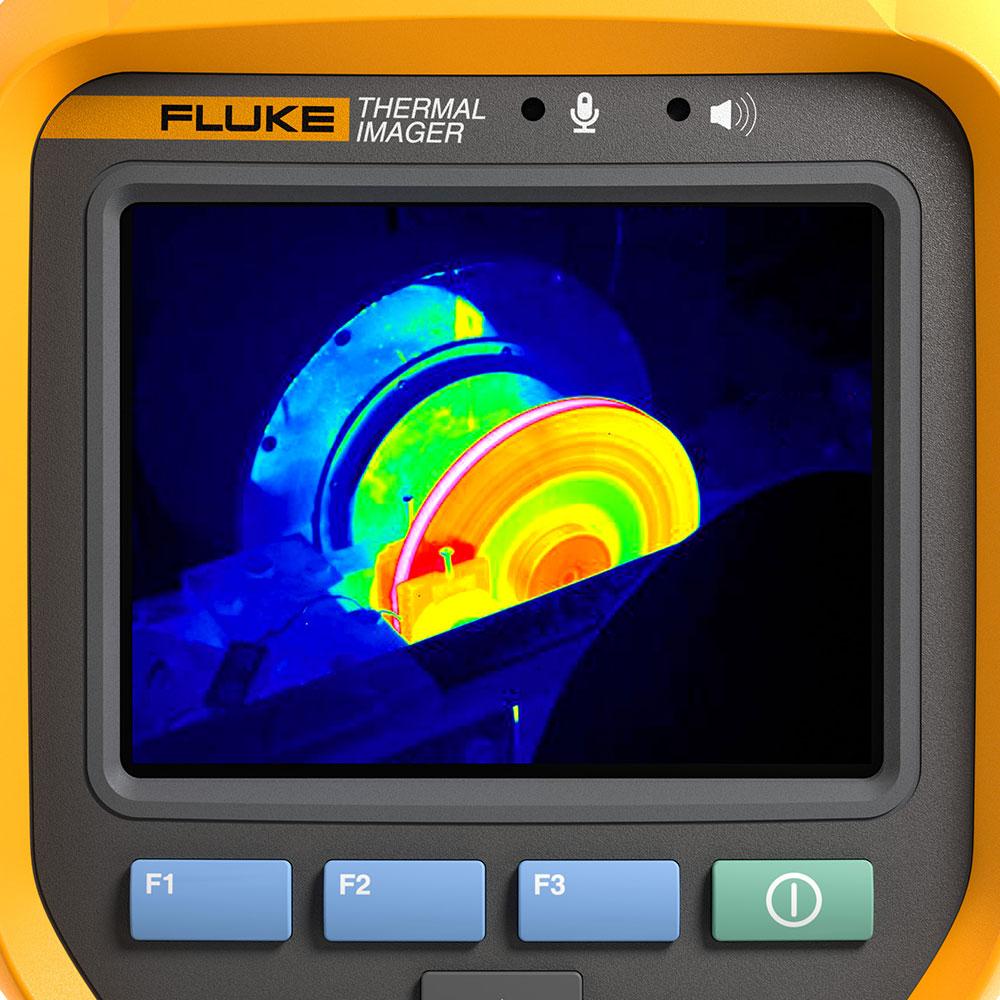

  • Display Screen: 3.5" LCD, 640*480
  • Image Mode: Thermal image, visible image, PIP
  • Audible Alarm: Yes. Above the temperature, below the temperature and between the temperature
• IR-Fusion:
  • Blending degree of a visual photo and an infrared thermal image: 0% to 100%
  • Picture in Picture: Yes
• Shooting Fuction:
  • Memory Card: Micro SD card, standard 32GB (expandable to 64GB, 128GB)
  • Shooting Mode: Single frame and time-lapse shooting
  • Image Format: .bmp.jpg
  • Screen Freeze: Support single frame shooting and fully-radiometric video recording
  • IR-PhotoNotes: 2 images
  • Video Frame Rate: 1 to 16 Hz
  • Video Format: .is5, .mp4
• Data Connection:
  • Bluetooth Connection: Support BT4.2LE
  • USB Interface: Type-A, USB 2.0
  • HDMI Interface: Mini HDMI interface, HDMI 1.4
• Ancillary Function:
  • Laser: Yes
  • LED Torch/Flashlight: Support flashlight and flash mode
• Power System:
  • Battery Type: 7.2V, 19Whr lithium battery, replaceable and rechargeable on field
  • Battery Life: 2 to 3 hours per battery
  • Charge Mode: 10-15V DC Charging
  • Charging Time: 2.5 hours
• Certification:
  • Safety Standard: IEC61010-1: Pollution Degree 2
  • Radio Frequency: 2400MHz to 2483.5MHz
  • Laser: IEC 60825-1, Class 2, 650nm, <1mW
  • Ingress protection: IEC60529: IP52
  • Drop Test: 1m
  • RoHS3 Directive: Yes
• Specifications:
  • Operating Temperature: -10ºC to 50ºC
  • Storage Temperature (without battery): -20ºC to 50ºC
  • Relative Humidity: 0% to 95% (non-condensing)
  • Dimensions: 279mm x 121mm x 175mm
  • Weight: 1.2kg

Warranty:

• 2 Years Warranty Covered by Fluke
