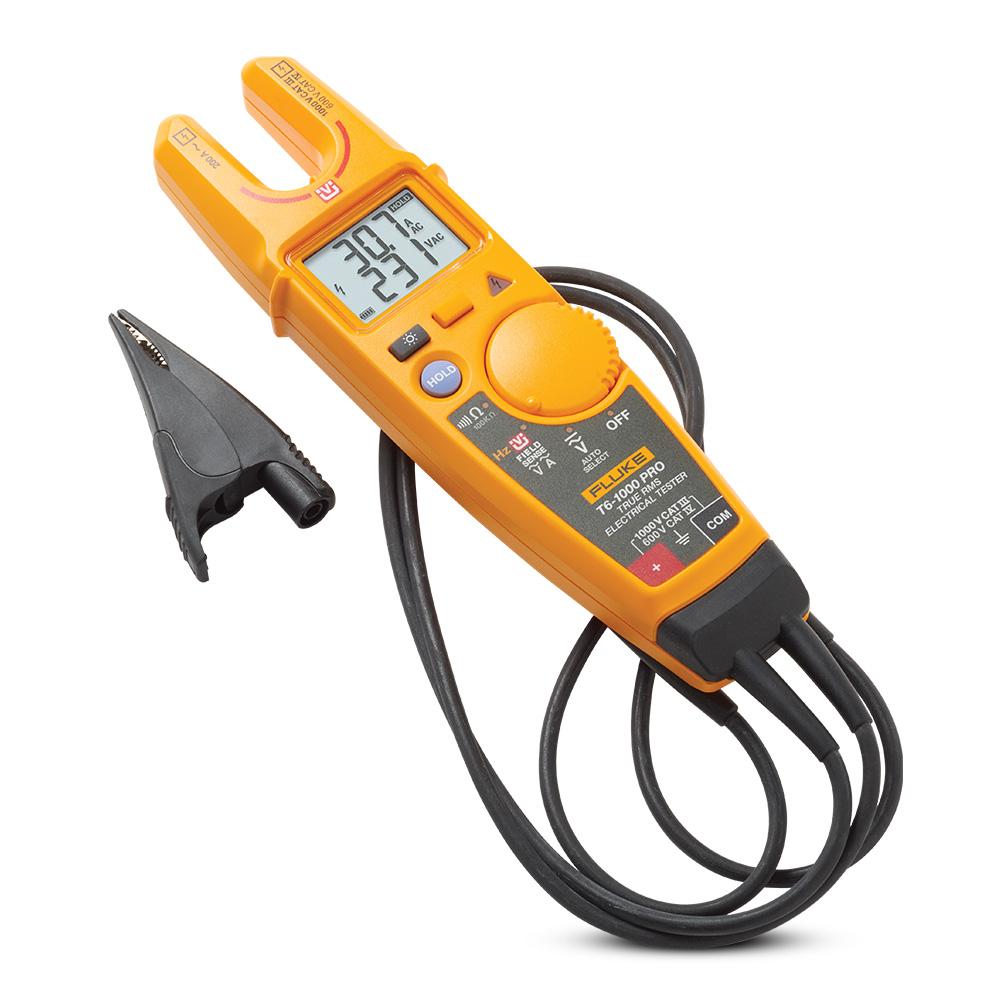

Fluke T6-1000PRO/APAC (5134764) Electrical Tester

Fluke T6-1000PRO/APAC (5134764) Electrical Tester

The T6-1000 PRO Electrical Tester measures voltage up to 1000 V ac and current up to 200 A ac, all through the open fork and without test lead contact to live voltage. Connect the black lead to ground with the included heavy-duty alligator clip, slide the wire into the open fork and see both voltage and current at the same time. On wires up to AWG 4/0 (120 mm2), carrying as much as 200 A and 1000 V ac. Even with gloves on. It will change how you do your job.

Features:

• Simultaneous voltage and current display–save time by seeing voltage and current measurements at the same time when trouble shooting motors, pumps or other equipment
• Visual Continuity–When checking continuity, the screen automatically turns green while the beeper is on
• Perfect for those times when it’s too loud to hear the beeper, when you’re wearing ear protection or when it’s too dark to easily read the screen. Visual Continuity takes the guesswork out of checking continuity
• True-rms – Accurate voltage and current measurements, even when measuring complex signals
• FieldSense technology for ac voltage, current and frequency measurement without making electrical contact to live voltage

Specifications:

• Calibration: 1-year calibration cycle
• Fork opening: 17.8mm
• Temperature:
  • Operating: -10 °C to +50 °C (14 °F to 122 °F)
  • Storage:  -30 °C to +60 °C (-22 °F to +140 °F)
• Altitude:
  • Operating: 2,000m
  • Storage: 10,000m
• Relative Humidity:
• 0 % to 90 %, 5 °C to 30 °C (41 °F to 86 °F)
• 0 % to 75 %, 30°C to 40 °C (86 °F to 104 °F)
• 0 % to 45 %, 40°C to 50 °C (104 °F to 122 °F)
• Battery:
• Type: 2x AA (IEC LR6)
• Life: 360 hour continuous, typical is 200 hour using the FieldSense function
• Temperature coefficient: 0.1 x (specified accuracy) / °C for <18°C or >28 °C (< 64.4 °F or > 82.4 °F)
• Safety:
  • General: IEC 61010-1: Pollution Degree
  • Measurement T6-1000 PRO: 2 IEC 61010-2-032: CAT IV 600 V / CAT III 1000V
• Electromagnetic Compatibility: IEC/EN 61326-1: Portable
• Dimensions (L x W x H): 61mm x 259mm x 43mm
• Weight: 0.35 kg

Warranty:

• 2 Year Warranty Covered By Fluke Australia
