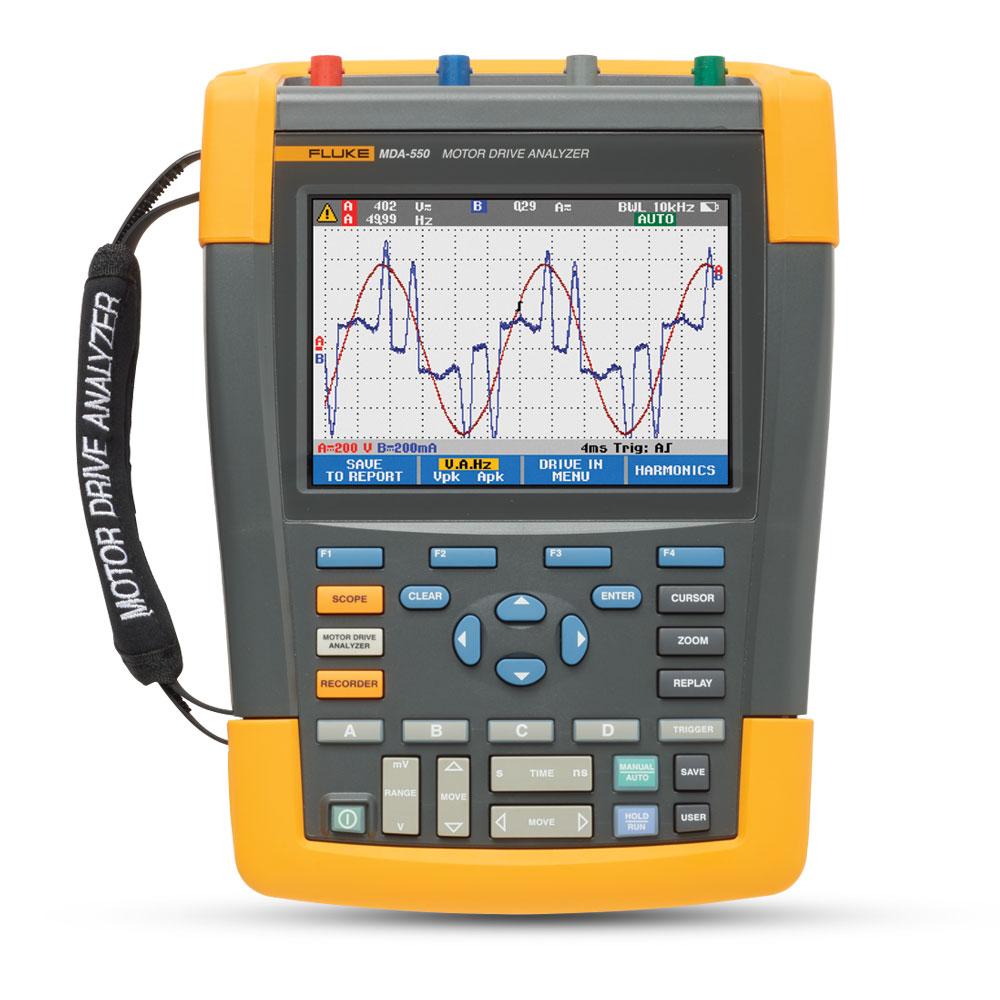

Fluke FLUKE-MDA-550-III (5282560) 500 MHz Motor Drive Analyzer

Fluke FLUKE-MDA-550-III (5282560) 500 MHz Motor Drive Analyzer

Inludes:

• 1x BP 291 li-ion battery pack
• 1x BC190 charger/power adapter
• 3x VPS 100:1 high voltage probes with alligator clips
• 1x VPS410-II-R 10:1 500MHz voltage probe
• 3x i400s ac current clamp
• 1x C1740 carrying case
• 1x 2 GB USB drive with manuals and FlukeView™ 2 software
• 1x SVS-500 shaft voltage set (3x brush, probe holder, two-piece extension rod and magnetic base)

Features:

• Guided testing with graphical step-by-step voltage and current connection diagrams makes setup and connection to variable frequency drives easier than ever
• Preset measurement profiles collect data based on the chosen test procedure and reduce the need for complex configuration
• Built-in report writing capabilities make it easy to produce professional as-found and as-left motor-drive troubleshooting reports

Specifications:

• Current (AMP) with current clamp
  • Ranges: Same as V ac, Vac+dc or V peak
  • Scale Factors: 0.1 mV/A, 1 mV/A, 10 mV/A, 20 mV/A, 50mV/A, 100 mV/A, 200 mV/A, 400 mV/A
  • Accuracy: Same as Vac, Vac+dc or V peak (add current clamp accuracy)
• Frequency (Hz)
  • Range: 1.000 Hz to 500 MHz
  • Full scale reading: 999 counts
  • Accuracy ±(0.5 % + 2 counts)
• Voltage/Herz ratio (V/Hz)
  • Purpose: To show the measured V PWM value (see V PWM) divided by the fundamental frequency on variable ac motor speed drives
  • Accuracy: % Vrms + % Hz
