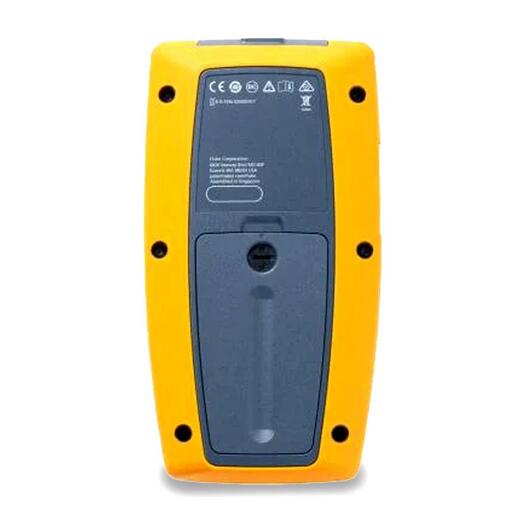

Fluke LIQ-KIT-IE (5226637) Networks LinkIQ™ Industrial Ethernet Cable+Network Test Kit

Fluke LIQ-KIT-IE (5226637) Networks LinkIQ™ Industrial Ethernet Cable+Network Test Kit

The LinkIQ™ is capable of measuring lengths up to 1000 feet (305 m) and provides distance to faults such as opens, shorts, and unterminated cable.

The included MS-IE Remote Adapter identifies miswires and split pairs on RJ45, M12X, M12D, and M8D terminated cables.

The LinkIQ™ qualifies cabling performance from 10 Mb/s to 10 Gb/s for EtherNet/IP, PROFINET, EtherCAT and other Industrial Ethernet protocols, performs ping tests to verify connectivity and also provides nearest switch diagnostics including advertised data rate, switch name and port number and VLAN information, plus PoE and load testing up to Class 8 (90W). Ethernet Alliance PoE Certified for reliable multivendor interoperability

Includes:

• Remote ID #1-7
• IntelliTone(TM) Pro 200 Probe
• RJ45-RJ45 patch cord (M-F)
• Quick Reference Guide
• AC charger
• RJ45/11 universal coupler
• RJ45/M12X patch cord
• RJ45/M12D patch cord
• RJ45/M8D patch cord
• RJ45/11 Modular Adapter
• Hanging strap with Remote ID holder
• Duffle bag carry case

Features:

• Validate EtherNet/IP, PROFINET, EtherCAT Cable Performance up to 10GBASE-T
• Get connected switch data rate, name, IP address, port number, and VLAN
• Detect the PoE class (1-8) and power, and perform a load test
• Test connectivity to TCP/IP network through IP configuration and ping
• Cable diagnostics w/ length plus IntelliTone™ and remotes 2-8
• Manage results and print reports from LinkWare™ PC

Specifications:

• Languages Supported in UI: English, German, French, Japanese, Spanish, Thai, Traditional Chinese, Simplified Chinese, Korean, Russian, Italian, Portuguese
• Battery:
  • Type: Lithium-ion, 3.6V, 6400 mAh
  • Life: 8 hours typical
  • Charge Time: 4.5 hours
  • Charging Temperature Range: 0ºC to +40ºC
• Power Adaptor:
  • Input: 100 to 240 VAC ±10%, 50/60Hz
  • Output: 15 VDC, 2 A maximum
  • Class II
• Host Iiterface: USB Type C
• Display: 800 x 480 color capacitive multi-touch
• Dimensions: 8.5 in x 4.5 in
• Operating Temperature: 0ºC to 45ºC
• Storage Temperature: -10ºC to +60ºC
• Operating Relative Humidity:
  • 0 % to 90 %, 0°C to 35°C
  • 0 % to 70 %, 35°C to 45°C
• Operating Altitude:
  • 4,000 m
  • 3,200 m with ac adapter
• Vibration: Random, 2 g, 5 Hz-500 Hz
• Drop: 1 m drop, 6 sides
• Weight: 0.624kg (1 lbs 6oz)

Warranty:

• 1 Year Limited Warranty Covered By Fluke
