Fluke LIQ-KIT (5226619) Networks LinkIQ™ Cable+Network Tester Advanced Kit

Fluke LIQ-KIT (5226619) Networks LinkIQ™ Cable+Network Tester Advanced Kit

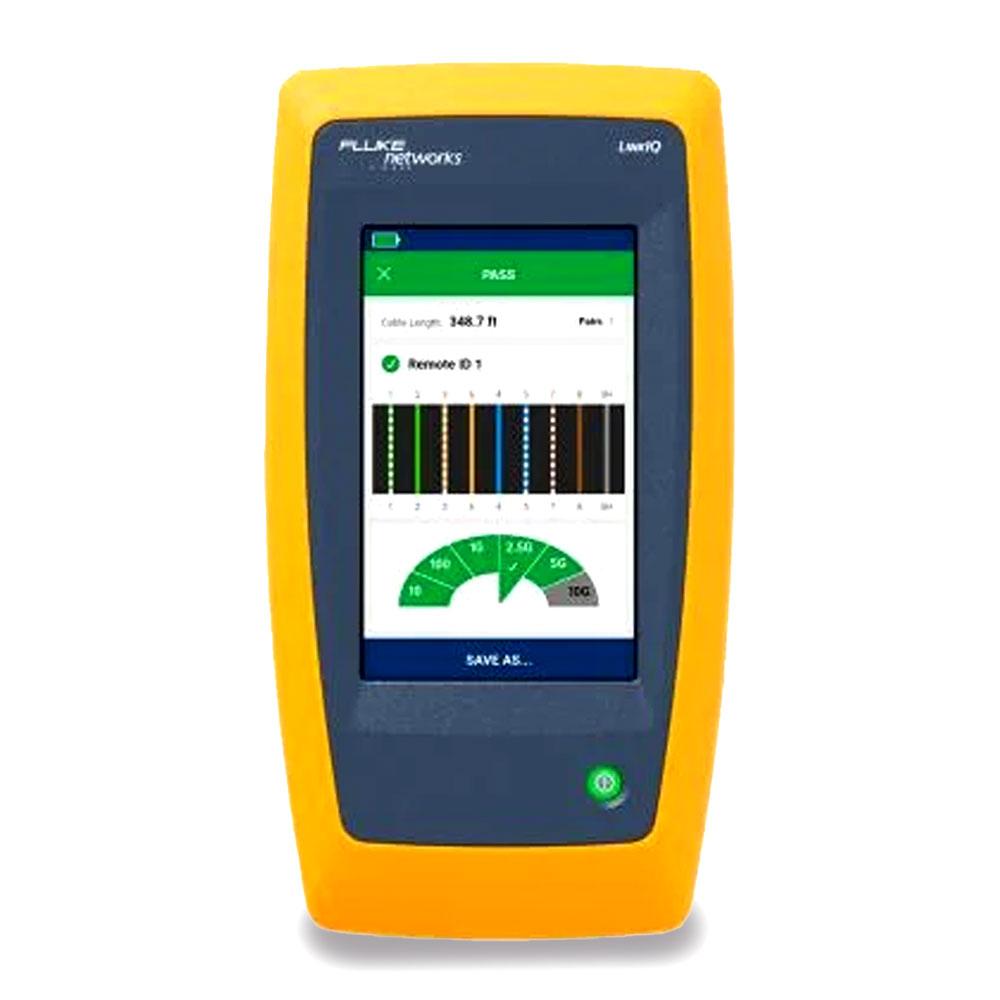

The LinkIQ™ Cable+Network Tester is the solution to verify cable performance up to 10G and solve network connectivity problems.

LinkIQ™ validates cable performance using frequency-based measurements to calculate maximum bandwidth (10BASE-T to 10GBASE-T), which ensure that tested links meet performance requirements.

LinkIQ™ also performs ping tests to verify connectivity and provides nearest switch diagnostics including advertised data rate, switch name, IP address, port number and VLAN information, plus PoE testing and load test up to Class 8 (90 W).  Ethernet Alliance PoE Certified for reliable multivendor interoperability.

Additional features include: Cable Toning, Port Blink, Remote Office Locators, and the ability to manage results via LinkWare PC

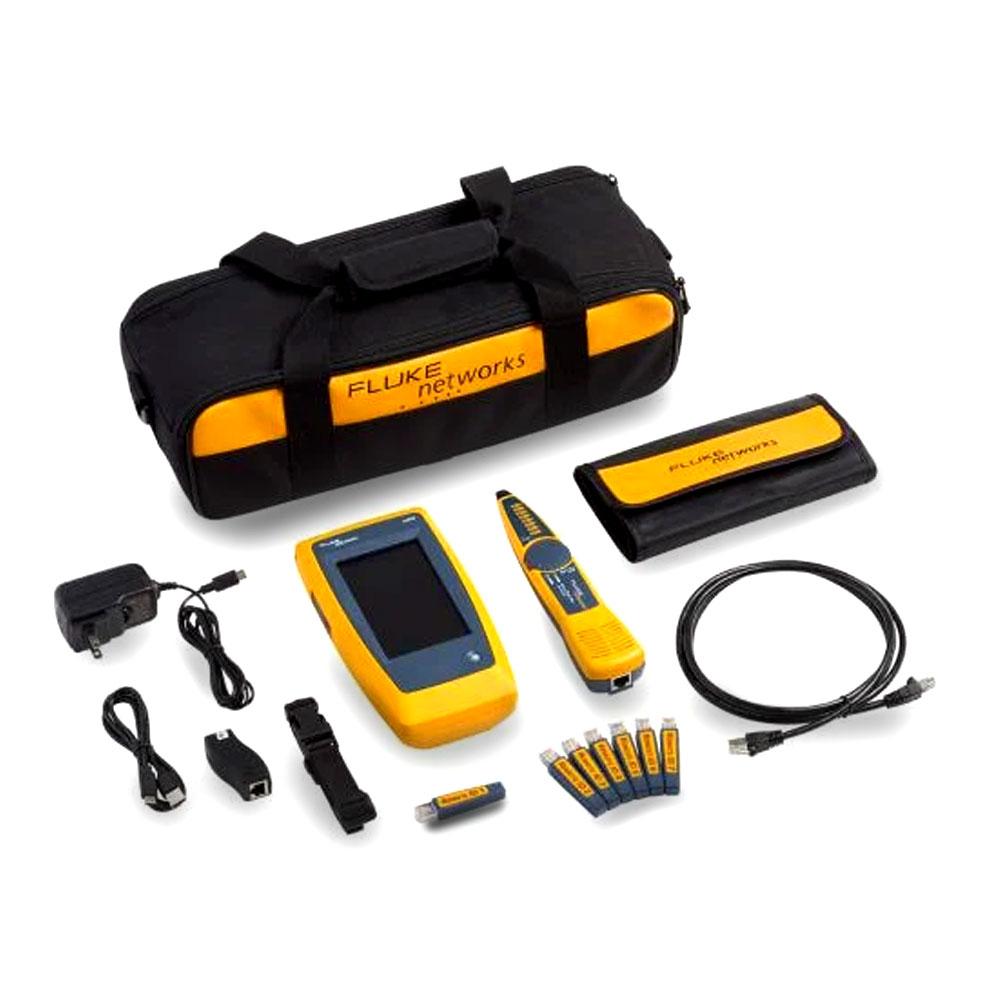

Includes:

• Remote ID #1
• RJ45-RJ45 patch cord
• AC charger
• RJ45/11 universal coupler
• IntelliTone(TM) Pro 200 Probe
• Duffle Bag Carrying Case

Features:

• Validate Cable Performance up to 10GBASE-T via frequency-based measurements
• Get connected switch data rate, switch name, IP address, port number, & VLAN
• Detect the PoE class (1-8) and power, and perform a load test
• Test connectivity to TCP/IP network through IP configuration and ping
• Cable diagnostics including length plus IntelliTone™, remotes 2-8
• Manage results and print reports from LinkWare™ PC

Specifications:

• Languages Supported in UI: English, German, French, Japanese, Spanish, Thai, Traditional Chinese, Simplified Chinese, Korean, Russian, Italian, Portuguese
• Battery:
  • Type: Lithium-ion, 3.6V, 6400 mAh
  • Life: 8 hours typical
  • Charge Time: 4.5 hours
  • Charging Temperature Range: 0ºC to +40ºC
• Power Adaptor:
  • Input: 100 to 240 VAC ±10%, 50/60Hz
  • Output: 15 VDC, 2 A maximum
  • Class II
• Host Iiterface: USB Type C
• Display: 800 x 480 color capacitive multi-touch
• Dimensions: 8.5 in x 4.5 in
• Operating Temperature: 0ºC to 45ºC
• Storage Temperature: -10ºC to +60ºC
• Operating Relative Humidity:
  • 0 % to 90 %, 0°C to 35°C
  • 0 % to 70 %, 35°C to 45°C
• Operating Altitude:
  • 4,000 m
  • 3,200 m with ac adapter
• Vibration: Random, 2 g, 5 Hz-500 Hz
• Drop: 1 m drop, 6 sides
• Weight: 0.624kg (1 lbs 6oz)

Warranty:

• 1 Year Limited Warranty Covered By Fluke
