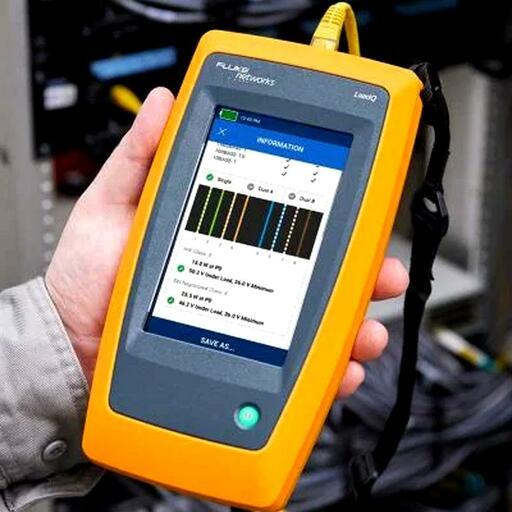

Fluke LIQ-100-IE (5226628) Networks LinkIQ™ Industrial Ethernet Cable+Network Tester

Fluke LIQ-100-IE (5226628) Networks LinkIQ™ Industrial Ethernet Cable+Network Tester

The LinkIQ Industrial Ethernet Cable+Network Tester measures lengths up to 1000 feet (305 m) and provides the distance to faults such as opens, shorts, and unterminated cable.

The included MS-IE Remote Adapter identifies miswires and split pairs on RJ45, M12X, M12D, and M8D terminated cables.

LinkIQ qualifies cabling performance from 10 Mb/s to 10 Gb/s for EtherNet/IP, PROFINET, EtherCAT, and other Industrial Ethernet protocols. It performs ping tests to verify connectivity, and also provides nearest switch diagnostics, including advertised data rate, switch name and port number, VLAN information, plus PoE and load testing up to Class 8 (90W). Ethernet Alliance PoE Certified for reliable multivendor interoperability.

LinkIQ supports multiple languages, and its keyboard includes extended alpha characters and symbols.

Includes:

• LIQ-100 with Multi-Connector Adapter
• Magnetic strap
• RJ45 Remote ID #1
• RJ45-RJ45 patch cord (M-F)
• Quick Reference Guide
• AC charger
• RJ45/11 universal coupler
• RJ45/M12X patch cord
• RJ45/M12D patch cord
• RJ45/M8D patch cord
• RJ45/11 Modular Adapter
• Hanging strap with Remote ID holder
• Duffle bag carry case

Features:

• Validates EtherNet/IP, PROFINET, EtherCAT cable to 10 Gb/s
• Speeds troubleshooting with IP ping
• Includes adapters for RJ45, M12X, M12D, and M8D cables
• Performs cable diagnostics, including length

Specifications:

• Languages Supported in UI: English, German, French, Japanese, Spanish, Thai, Traditional Chinese, Simplified Chinese, Korean, Russian, Italian, Portuguese
• Battery:
  • Type: Lithium-ion, 3.6V, 6400 mAh
  • Life: 8 hours typical
  • Charge Time: 4.5 hours
  • Charging Temperature Range: 0ºC to +40ºC
• Power Adaptor:
  • Input: 100 to 240 VAC ±10%, 50/60Hz
  • Output: 15 VDC, 2 A maximum
  • Class II
• Host Iiterface: USB Type C
• Display: 800 x 480 color capacitive multi-touch
• Dimensions: 8.5 in x 4.5 in
• Operating Temperature: 0ºC to 45ºC
• Storage Temperature: -10ºC to +60ºC
• Operating Relative Humidity:
  • 0 % to 90 %, 0°C to 35°C
  • 0 % to 70 %, 35°C to 45°C
• Operating Altitude:
  • 4,000 m
  • 3,200 m with ac adapter
• Vibration: Random, 2 g, 5 Hz-500 Hz
• Drop: 1 m drop, 6 sides
• Weight: 0.624kg (1 lbs 6oz)

Warranty:

• 1 Year Limited Warranty Covered By Fluke
