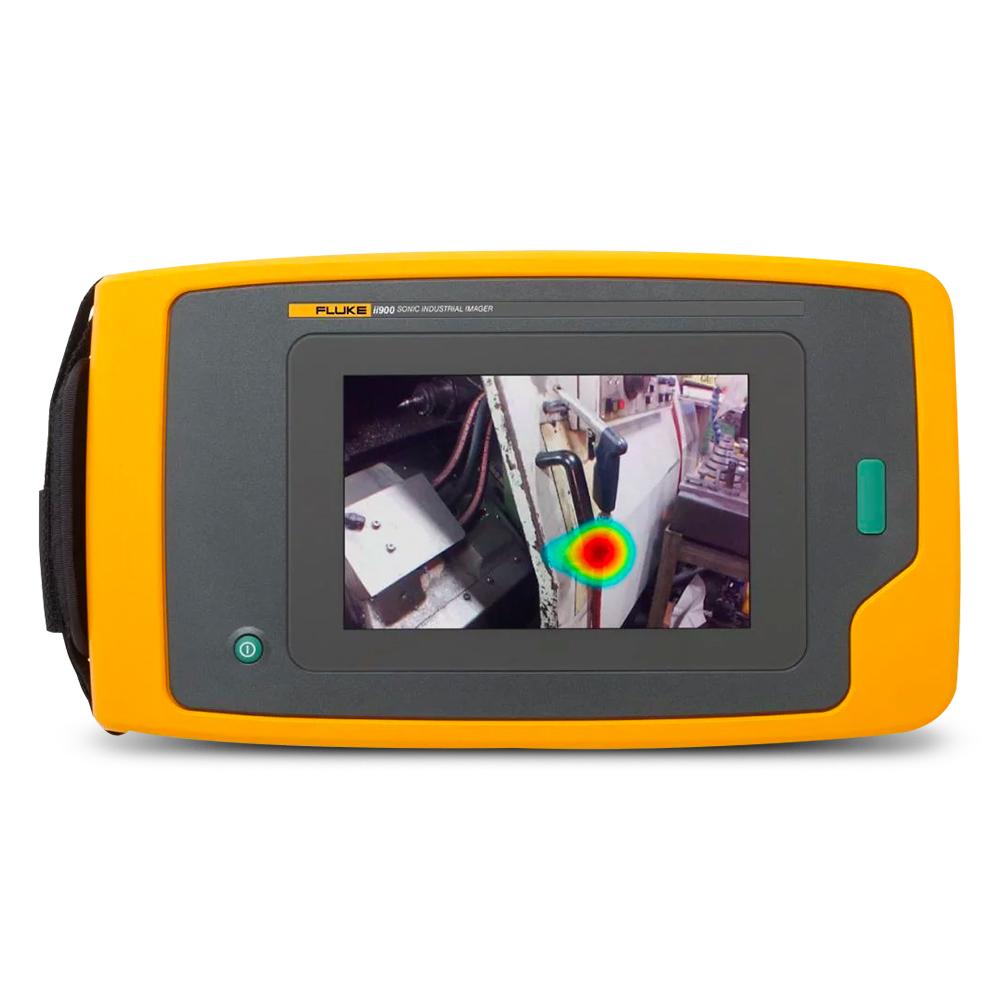

Fluke FLK-II900 (5075603) Sonic Industrial Imager

Fluke FLK-II900 (5075603) Sonic Industrial Imager

Features:

• Do more with the same air compressors – delay the capital expense of purchasing an additional compressor
• Ensure proper air pressure to your pneumatic equipment
• Lower utility costs
• Reduce leak detection time
• Improve reliability in your production line

Specifications:

• Sensors:
  • # of microphones: 64 digital MEMS microphones
  • Frequency band: 2 kHz to 52 kHz
  • Sound pressure sensitivity: Detects a 0.005 CFM leak at 100PSI from up to 32.8 feet
  • (Detects a 2.5 cm3/sec leak at 7 bar from up to 10 meters)
  • Operation distance range: 0.5 to > 50 meters (1.6 to > 164 feet)*
  • Field of View: 63 ° ± 5 °
  • Minimum Frame Rate 12.5 FPS
  • *Depending on ambient conditions
• Built-in digital camera (visible light)
  • Field of View (FOV): 63 ° ± 5 °
  • Focus: Fixed lens
• Display: 7" LCD with backlight, under-sunlight readable
  • Resolution: 1280 x 800 (1,024,000 pixels)
  • Touchscreen: Capacitive
  • Acoustic Image: Yes, SoundMap™ image
• Image storage:
  • Storage capacity: Internal memory with the capacity for 999 picture files or 20 video files
  • Image format: Blended visual and SoundMap™.JPG or .PNG
  • Video format: Blended visual and SoundMap™.MP4
  • Video length: 30 seconds
  • Digital export: USB-C for data transfer
• Acoustic Measurements
  • Measurement range:
    • 29.3 dB to 119.6 dB SPL (±2 dB) at 2 kHz
    • 21.9 dB to 112.3 db SPL (±2 dB) at 19 kHz
    • 36.6 db to 126.9 dB SPL (±2 dB) at 52 kHz
  • Auto max/min dB gain: Auto or manual, user selectable
  • Frequency band selection: User selectable through user-made presets or manual entry
• Software:
  • Ease of use: Intuitive user interface
  • Trend graphs: Frequency and dB scale
  • Spot markers: dB level reading at center point of the image
• Battery:
  • Batteries: rechargeable
  • Battery life 6 hours (product includes spare battery)
  • Battery charging time 3 hours
  • Battery charging system External dual-bay charger, EDBC 290
• General Specifications
  • Standard palettes 3: Grayscale, Ironbow, Blue-Red
  • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
  • Storage Temperature: -20 °C to 70 °C (-4 °F to 158 °F) Without batteries
  • Relative humidity: 10 % to 95 % non-condensing
• Main unit rating: IP40 protection against particles 1mm or greater and dripping water
• Sensor head rating: IP51
• Self-diagnostic notification: Array-health test to identify when microphone array needs attention
• Supported languages: Dutch, English, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese
• RoHS compliant: Yes
• Safety:
  • General Safety IEC 61010-1
  • Electromagnetic Compatibility (EMC) International IEC 61326-1: Portable Electromagnetic Environment IEC 61326-2-2
  • CISPR 11: Group 1, Class A
• Dimensions (L x W x H) 68mm x 322mm x 186mm
• Weight: 1.7kg

Warranty:

• 2 years warranty covered by Fluke
