Fluke GFL-1500 (6021723) Solar Ground Fault Locator

Fluke GFL-1500 (6021723) Solar Ground Fault Locator

The Fluke GFL-1500 Solar Ground Fault Locator is an advanced troubleshooting system engineered to help solar technicians quickly and safely pinpoint active ground faults in PV installations. Designed for modern solar arrays up to 1500 V DC, this three-piece diagnostic toolset, comprising of a Transmitter, Receiver, and Signal Tracing Clamp. The GFL-1500 uses FaultTrack™ Technology to generate a traceable signal along the fault path, allowing non-contact detection directly to the point of failure. Unlike traditional, time-consuming fault isolation methods, the GFL-1500 enables technicians to trace faults without disconnecting conductors or dismantling string connections. Its intuitive interface and high-sensitivity receiver allow for precise, rapid fault localisation, even in large-scale PV arrays or sites with incomplete documentation, reducing downtime and improving safety. Built for real-world field conditions, the GFL-1500 is rugged, accurate, and compliant with CAT III 1500 V / CAT IV 600 V safety standards, making it the ultimate solution for maintaining system performance and uptime in high-voltage solar applications.

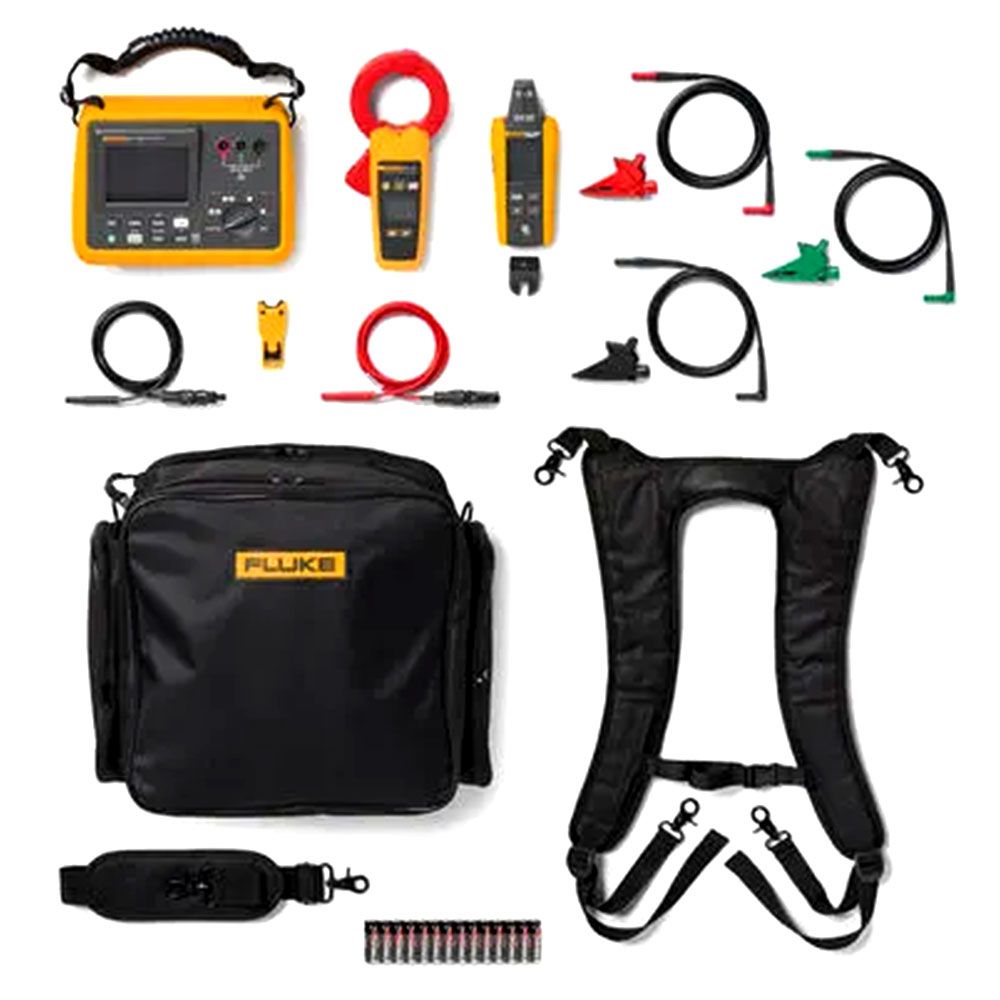

Includes:

• Test Leads
• Alligator Clips
• MC4 Adaptors

Key Features

• FaultTrack™ Technology: Produces a traceable signal for non-contact fault tracing directly to the fault location

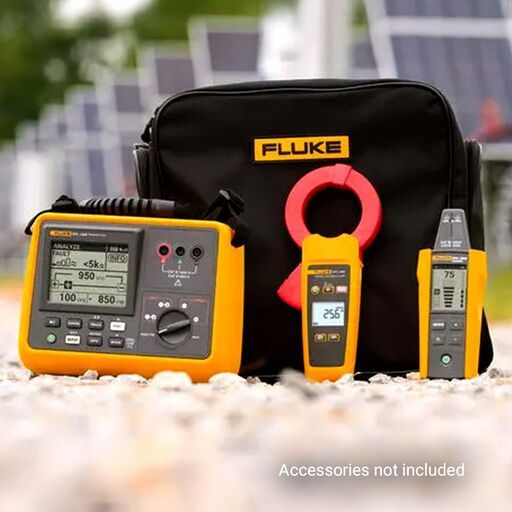

• Three-Piece System: Includes GFL-1500 Transmitter, Receiver, and Signal Tracing Clamp
• No-Conduct Disconnect Required: Trace faults without removing string connections
• Accurate & Efficient: Quickly identify faulted branches and pinpoint location within a string
• Safe for High Voltage Systems: Rated for CAT III 1500 V DC / CAT IV 600 V operation
• Dual Frequency Operation: 6.25 kHz (FAULT & MAP) and 32.764 kHz (OPEN) modes for versatility
• Rugged & Reliable: IP54-rated construction and tested for 1 m drop protection
• Optimised for Solar Professionals: Saves diagnostic time while improving field safety and system uptime
• Long Battery Life: Up to 15 hours of continuous use (transmitter) and over 150 hours (clamp)
• Comprehensive Test Kit: Includes test leads, alligator clips, and MC4 adaptors

Specifications:

• General
  • Measurement Category: CAT III 1500 V DC / CAT IV 600 V
  • Trace Signal Frequencies: 6.25 kHz (FAULT & MAP), 32.764 kHz (OPEN)
  • IP Rating: IP54 (Transmitter & Receiver), IP30 (Clamp)
  • Drop Test: 1 m (3.28 ft)
• Transmitter
  • Operating Voltage: 1500 V DC / 600 V AC
  • Display: Graphic LCD with front light
  • Trace Signal Output:
    • Array HIGH: 30 mA RMS
    • Array LOW: 6 mA RMS
    • Unit HIGH: 120 mA RMS
  • Voltage Output (Open Circuit): 30 V RMS (typical)
  • Battery Life: Up to 15 hours (8 × AA alkaline or NiMH)
  • Dimensions: 244 × 180 × 106 mm
  • Weight: 2.04 kg

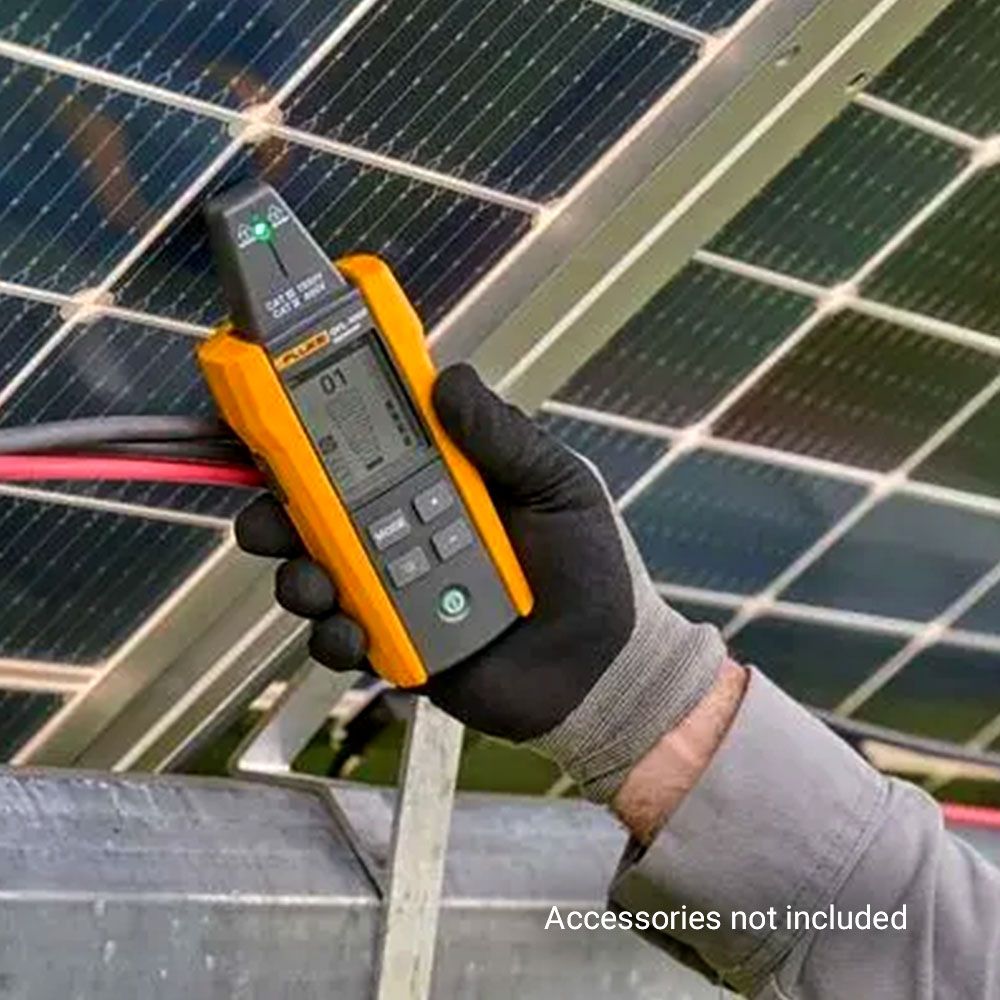

• Receiver
  • Display: Segment LCD with backlight
  • Detection Distance (Typical):
    • Array Mode: up to 4.75 m (air)
    • Unit Mode: up to 5.9 m (air)
    • Open Mode: up to 2.7 m (air)
  • Battery Life: Approx. 16 hours (4 × AA)
  • Dimensions: 183 × 75 × 43 mm
  • Weight: 0.27 kg

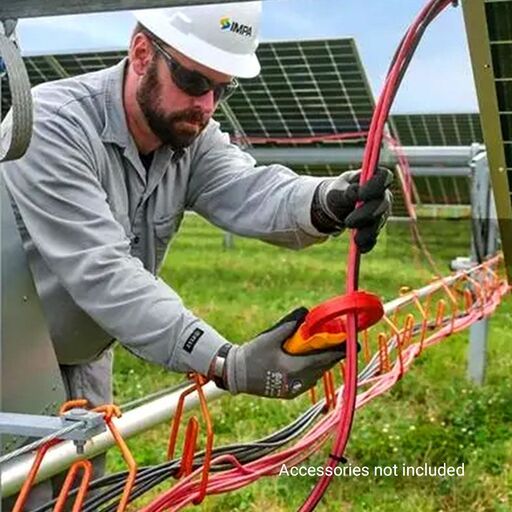

• Signal Tracing Clamp
  • Maximum Conductor Diameter: 61 mm (2.4 in)
  • AC Current Range: up to 150 mA, resolution 0.1 mA
  • Battery Life: >150 hours (2 × AA)
  • Dimensions: 257 × 116 × 46 mm
  • Weight: 0.6 kg
• Environmental
  • Operating Temperature: -20 °C to 50 °C
  • Storage Temperature: -40 °C to 70 °C
  • Operating Humidity: Up to 95% RH (non-condensing)
  • Altitude: 0–3000 m operational, 12,000 m storage
• Test Lead Kit
  • Components:
    • 3 × TL324 4 mm test leads (red, black, green)
    • 3 × AC385 alligator clips (red, black, green)
    • 2 × TLPV1 MC4 to 4 mm test leads (red, black)
  • Voltage Rating: CAT III 1500 V / CAT IV 1000 V
  • Operating Current: 30 A
  • Weight: 0.48 kg

Warranty:

• 3 Year Warranty Covered by Fluke
