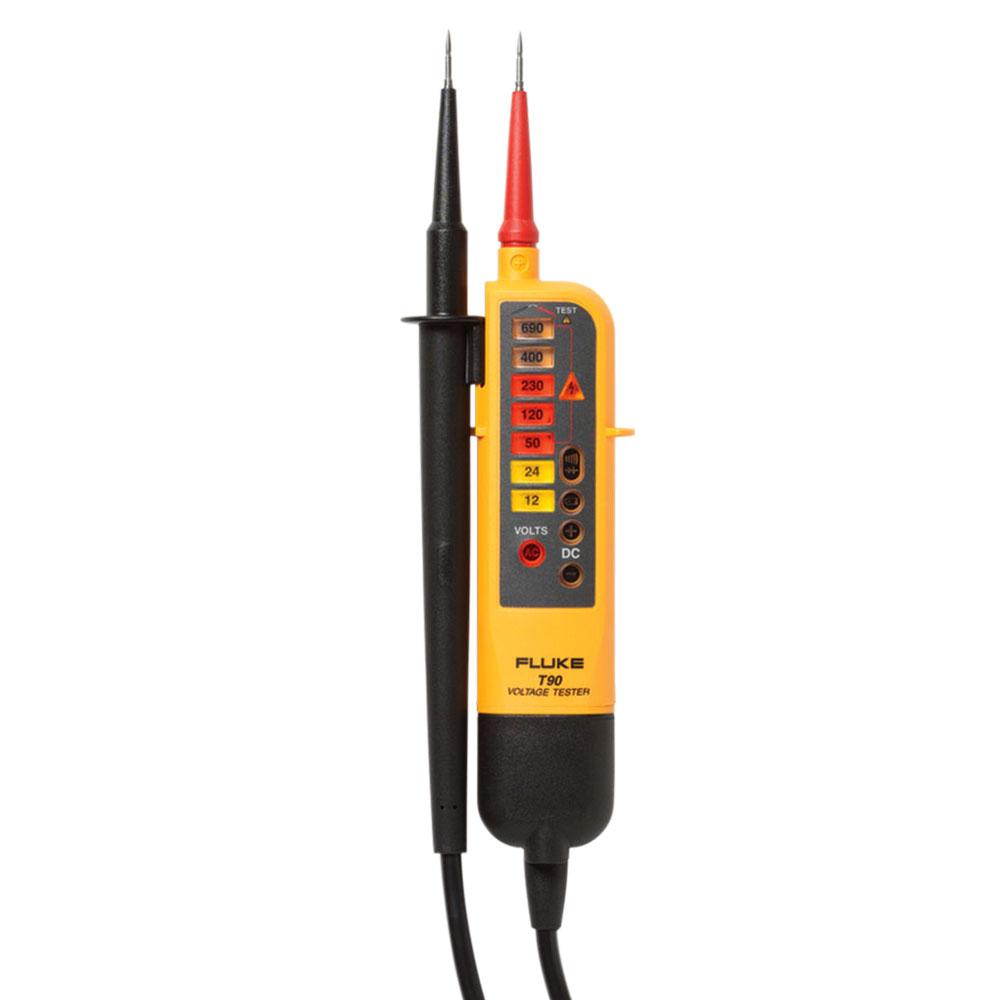

Fluke FLUKE-T90 (4016945) Two-pole Voltage and Continuity Tester

Fluke FLUKE-T90 (4016945) Two-pole Voltage and Continuity Tester

The compact Fluke T90 Voltage and Continuity Tester gives you fast test results the way you need them in a slim design. Large, easy-to-use buttons, bright backlit LED indicators and clear audible indicator give quick results in any work situation.

Features:

• Dual insulated cable tested to 3x the required bend angle provides increased reliability and durability.
• Switchable load: avoid display of ghost voltages allowing you to draw more current from the circuit under test and avoid trip residual-current devices (RCDs)
• Backlit graduated scale and backlit indicators
• Improved probe docking for secure storage.
• Single-pole phase test offers fast identification of live conductors.
• Push-on probe tips, probe tip protector and storage accessory.
• Tip protector serves as an extra hand when opening UK electrical safety outlets.
• Low battery indicator.

Specifications:

• Voltage AC/DC: 12V - 690V
• Continuity: 0 - 400 kΩ
• Frequency: 0 / 40 - 400 Hz
• Phase rotation:
• Resistance measurement:
• Response Time (LED indicator): < 0.5s
• 200 kΩ input impedance:
• Current draw 3,5 mA @ 690 V
• Current draw 1,15 mA @ 230 V
• Safety rating:
• CAT II 690V
• CAT III 600V
• IP rating: IP54
• Power requirement: 2 x AAA batteries
• Dimensions (L x W x H): 260mm x 70mm x 38mm
• Weight 0.28kg

Warranty:

• Two Years Warranty Covered By Fluke
