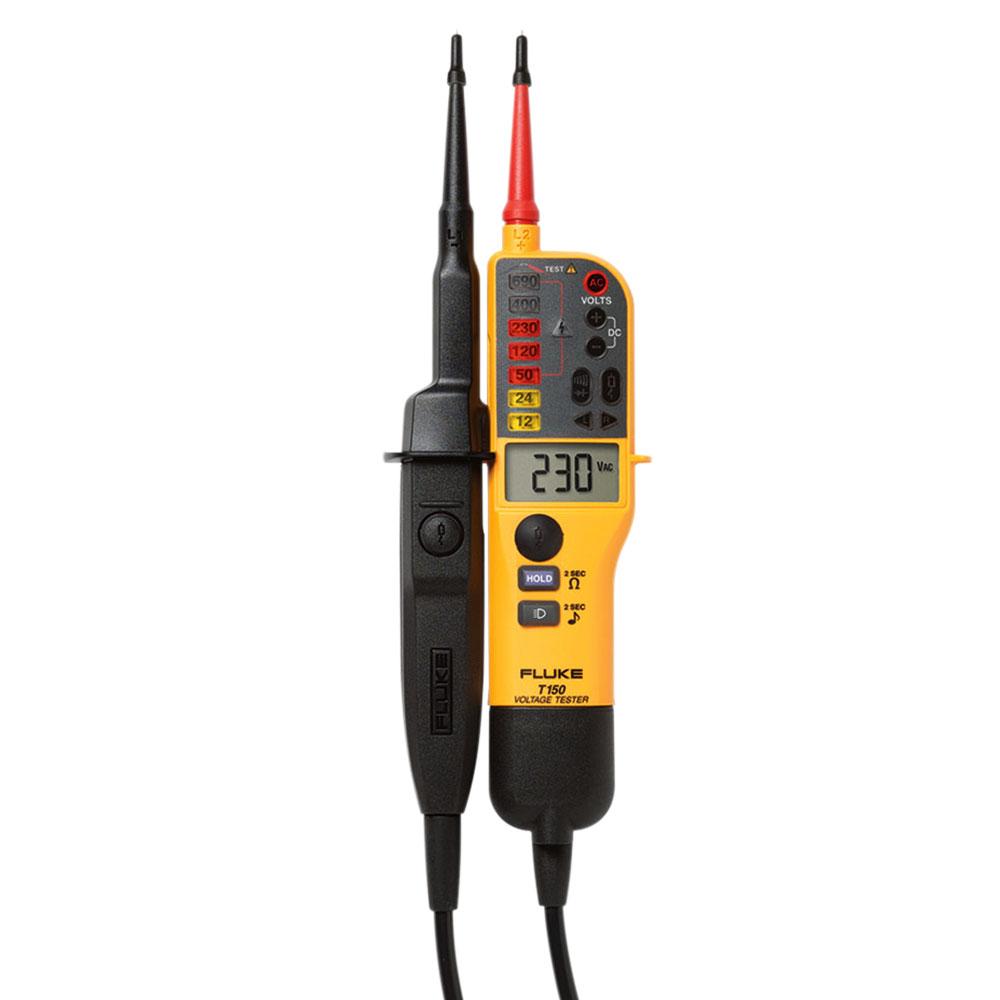

Fluke FLUKE-T150 (4016977) Two-pole Voltage and Continuity Tester

Fluke FLUKE-T150 (4016977) Two-pole Voltage and Continuity Tester

Fluke Two-pole Voltage and Continuity Testers give you fast test results the way you need them, with large, easy-to-use buttons, bright backlights, and clear audible and physical indicators designed for any work situation. Resistance measurements up to 1999 Ω. Display hold. Enhanced ergonomic design is easy to use (even with gloves on) and offers quick, secure probe docking.

Features:

• Dual insulated cable tested to 3x the required bend angle provides increased reliability and durability.
• Switchable load: avoid display of ghost voltages allowing you to draw more current from the circuit under test and avoid trip residual-current devices (RCDs)
• Backlit graduated scale and backlit indicators
• Built in electric torch for use in dark areas.
• Resistance testing to 1999 ohms.
• Audio on/off for testing in quiet areas.
• Improved probe docking for secure storage.
• Phase rotation indicator for 3-phase systems.
• Display hold freezes reading on display until your can view it comfortably.
• Single-pole phase test offers fast identification of live conductors.
• Push-on probe tips, probe tip protector and storage accessory.
• Tip protector serves as an extra hand when opening UK electrical safety outlets.
• Low battery indicator.

Specifications:

• Voltage AC/DC: 6V - 690V
• Continuity: 0 - 400 kΩ
• Frequency: 0 / 40 - 400 Hz
• Phase rotation: 100 V - 690 V
• Resistance measurement: Up to 1999 Ω
• Response Time (LED indicator): < 0.5s
• 200 kΩ input impedance:
• Current draw 3,5 mA @ 690 V
• Current draw 1,15 mA @ 230 V
• 7k Ω input impedance (with load buttons pressed): Current draw 30 mA @ 230 V
• Safety rating:
• CAT II 690V
• CAT III 600V
• IP rating: IP64
• Power requirement: 2 x AAA batteries
• Dimensions (L x W x H): 230mm x 70mm x 38mm
• Weight 0.18kg

Warranty:

• Two Years Warranty Covered By Fluke
