Fluke FLUKE-T110 (4016950) Two-pole Voltage and Continuity Tester

Fluke FLUKE-T110 (4016950) Two-pole Voltage and Continuity Tester

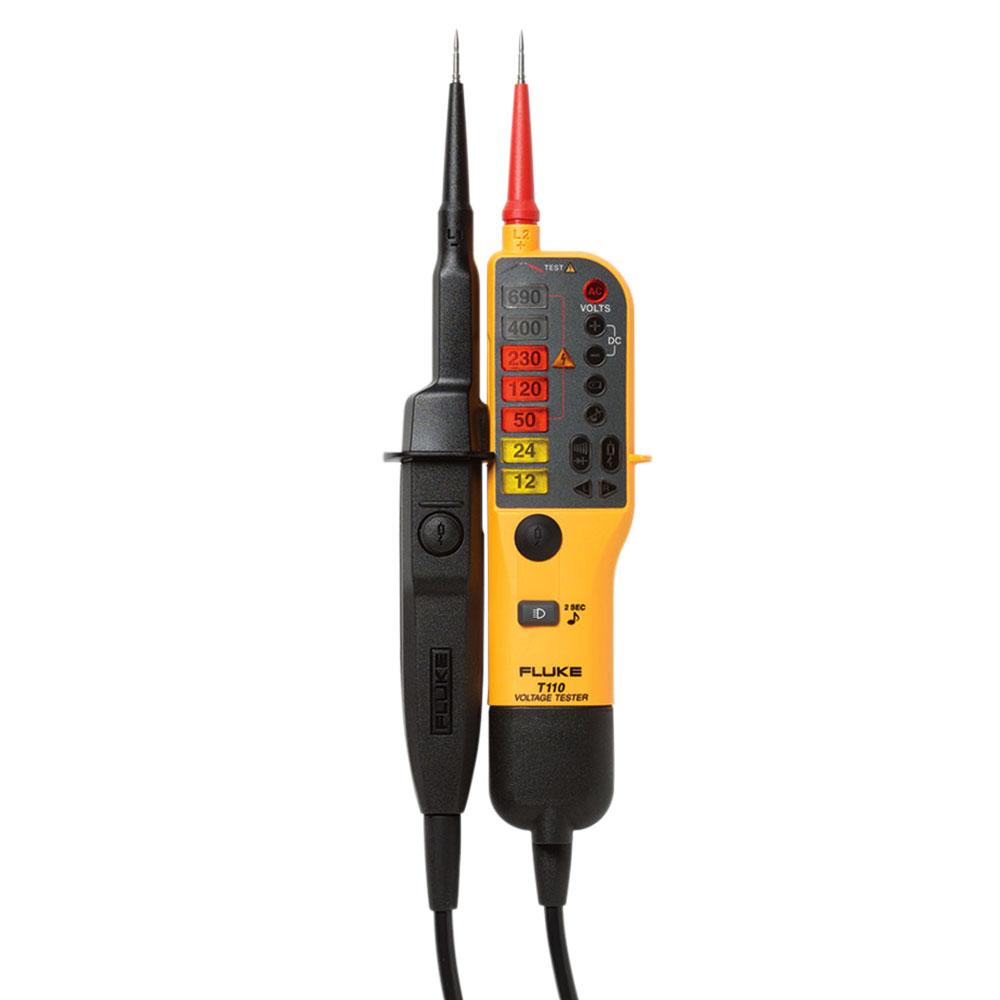

The Fluke T110 Voltage and Continuity Tester with electric torch, backlit LED indicator, clear audible and vibrating voltage indicator let you work with confidence, while getting test results the way you want them.

Features:

• Dual insulated cable tested to 3x the required bend angle provides increased reliability and durability.
• Switchable load: avoid display of ghost voltages allowing you to draw more current from the circuit under test and avoid trip residual-current devices (RCDs)
• Backlit graduated scale and backlit indicators
• Built in electric torch for use in dark areas.
• Audio on/off for testing in quiet areas.
• Improved probe docking for secure storage.
• Phase rotation indicator for 3-phase systems.
• Single-pole phase test offers fast identification of live conductors.
• Push-on probe tips, probe tip protector and storage accessory.
• Tip protector serves as an extra hand when opening UK electrical safety outlets.
• Low battery indicator.

Specifications:

• Voltage AC/DC: 12V - 690V
• Continuity: 0 - 400 kΩ
• Frequency: 0 / 40 - 400 Hz
• Phase rotation: 100 V - 690 V
• Resistance measurement:
• Response Time (LED indicator): < 0.5s
• 200 kΩ input impedance:
• Current draw 3,5 mA @ 690 V
• Current draw 1,15 mA @ 230 V
• 7k Ω input impedance (with load buttons pressed): Current draw 30 mA @ 230 V
• Safety rating:
• CAT II 690V
• CAT III 600V
• IP rating: IP64
• Power requirement: 2 x AAA batteries
• Dimensions (L x W x H): 260mm x 70mm x 38mm
• Weight 0.28kg

Warranty:

• Two Years Warranty Covered By Fluke
