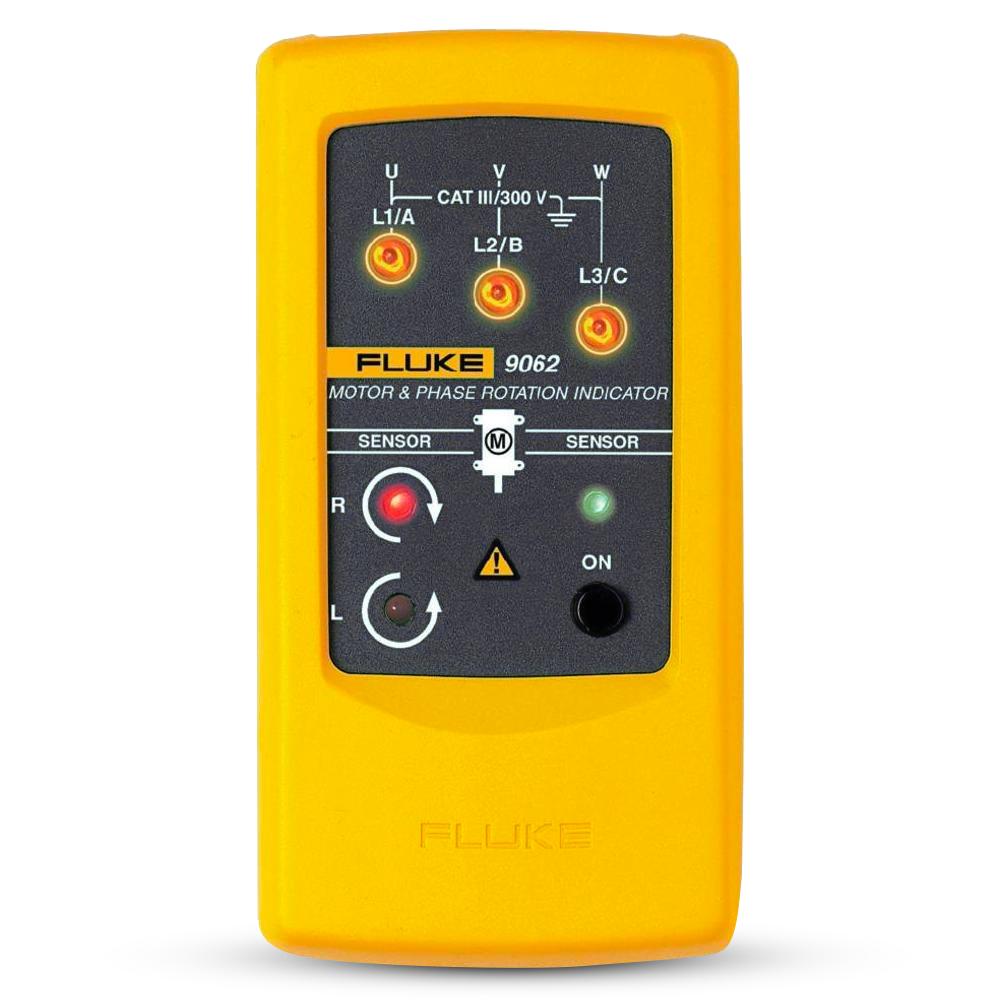

Fluke FLUKE-9062 (2435077) 9062 Motor and Phase Rotation Indicator

Fluke FLUKE-9062 (2435077) 9062 Motor and Phase Rotation Indicator

The unique Fluke 9062 provides rotary field and motor rotation indication with the benefits of contact-less detection. Purpose made for commercial and industrial environments, the Fluke 9062 provides rapid indication of 3 phase rotation using test leads supplied or can be used to determine motor rotation on synchronous and asynchronous 3 phase motors. The contact-less detection is ideal for use on motors where the shaft is not visible. The included test probes have a variable clamping range for safe contact, also in industrial sockets.

Features:

• 3 phase indication
• Indication of phase rotation
• Indication of motor rotation direction
• Contact free determination of the rotation direction of running motors

Specifications:

• Voltage range: Up to 400 V
• Phase display: 120-400 V AC
• Frequency range: 2-400 Hz
• Operating timer: Continuous
• Operating temperature: 0 °C to 40 °C
• Operating altitude: Up to 2000m
• Humidity (without condensation): 15% to 80%
• Dust/water resistance: IP 40
• Electrical safety EN 61010, EN 61557-7
• Overvoltage category: CAT III, 300 V
• Batteries: 1 x 9 V
• Dimensions (L x W x H): 124mm x 61mm x 27mm
• Weight 0.20kg

Warranty:

• Two Years Warranty Covered By Fluke
