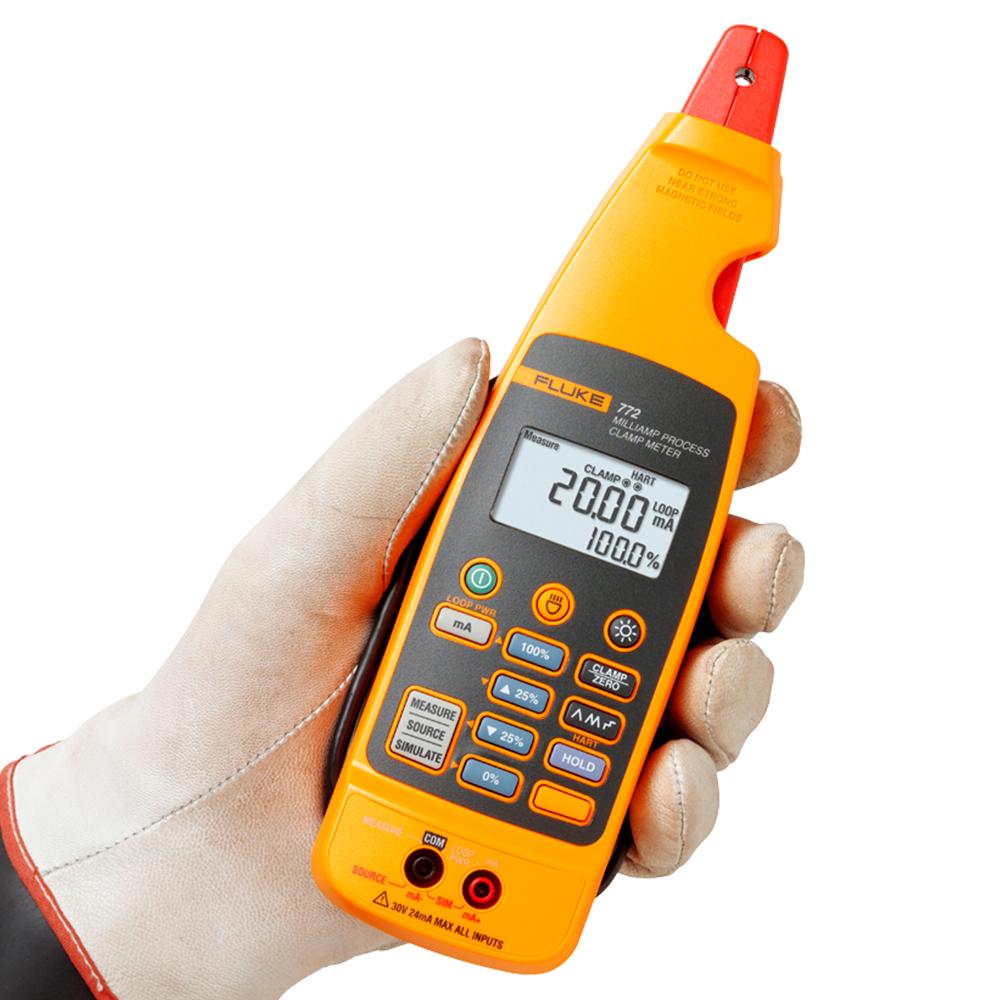

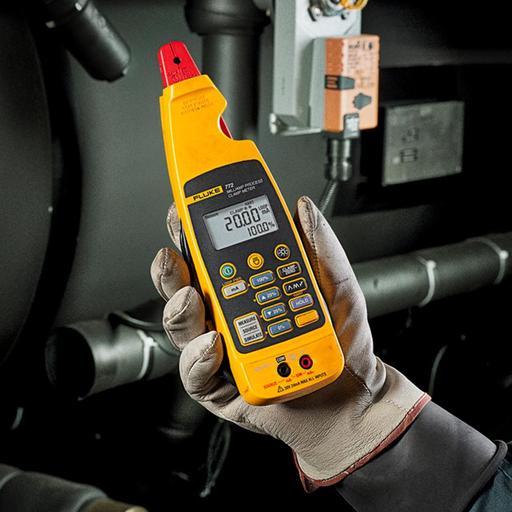

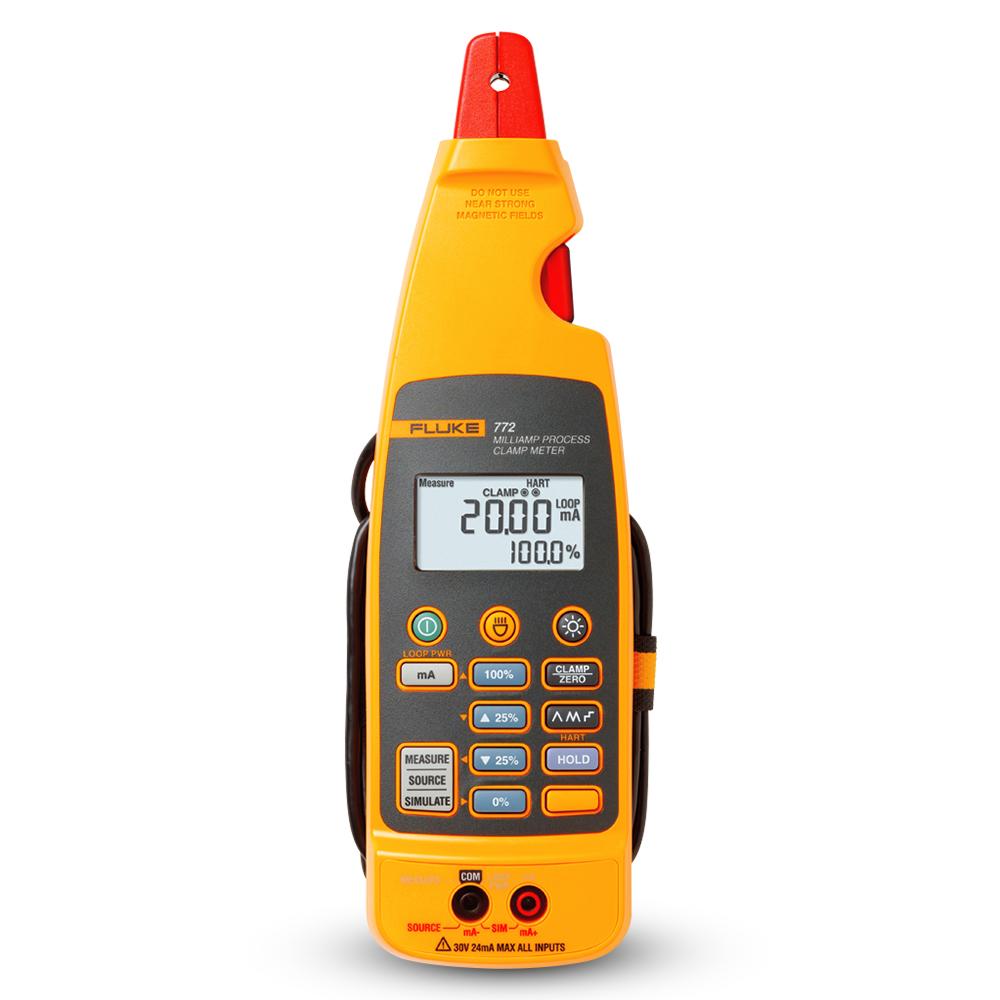

Fluke FLUKE-772/APAC (6036490) 772 Milliamp Process Clamp Meter

Fluke FLUKE-772/APAC (6036490) 772 Milliamp Process Clamp Meter

The Fluke 772 adds to the basic capabilities of the Fluke 771 to save more time and expand its applications. With the 771, you'll also be able to: source and simulate 4-20 mA signals for testing control system I/O; measure 4-20 mA signals with in-circuit measurement; power a transmitter with the 24 V loop power supply; and automatically ramp and step change the 4-20 mA output for remote testing. You'll be able to test 4–20 mA signals five times faster than with traditional DMMs, and without breaking the loop. That means you can troubleshoot a live device without having to power down, which can save you time, and help you avoid possibly missing something going on in the process.

Features:

• Loop calibrator that measures 4 to 20 mA signals without breaking the loop
• Features best in class 0.2% accuracy
• Simultaneously measures the mA signal with the clamp and sources a mA signal
• Delivers 0.01 mA resolution and sensitivity
• Measures mA signals for PLC and control system analog I/O
• Captures and displays changing measurements with Hold function
• Offers mA output linear ramp or 25% step output
• Extends battery life with auto-off and backlight timeout

Specifications:

• mA measurement (measured by clamp) Resolution / range: 0 to 20.99 mA
• Accuracy: 0.2% + 5 counts
• mA measurement (measured by clamp) Resolution / range: 21.0mA to 100.0 mA
• Accuracy: 1% + 5 counts
• mA measurement (measured in series with test jacks)
• Resolution / range: 0 to 24.00 mA
• Accuracy: 0.2% + 2 counts
• mA source (maximum mA drive: 24 mA into 1,000 ohms)
• Resolution / range: 0 to 24.00 mA
• Accuracy: 0.2% + 2 counts
• mA simulate (maximum voltage 50 V dc)
• Resolution / range: 0 to 24.00 mA
• Accuracy: 0.2% + 2 counts
• Diameter of measurable conductor: 0.177” or 4.5 mm max
• Operating temperature: -10 to 50ºC
• Storage temperature: -25 to 60ºC
• Operating humidity:
• < 90% @ <30ºC
• < 75% @ 30 to 55ºC
• Operating altitude: 0 to 2000 m
• IP rating: IP 40
• Vibration Random 2 g, 5 to 500 Hz
• Shock 1 meter drop test (except the jaw)
• EMI/RFI Meets EN61326-1
• For current measurement w/ JAW, add 1mA to specification for EMC field strengths of 1V/m up to 3V/m.
• Temperature coefficient 0.01% ºC
• (< 18ºC or > 28ºC)
• Battery type: 4 x AA 1.5 V Alkaline, IEC LR6,
• Battery life: 12 hours in mA source into 500 ohms
• Dimensions (L x W x H): 246mm x 70mm x 44mm
• Weight 0.41kg

Warranty:

• Three Years Warranty for Electronics Covered By Fluke
• 12 Months Warranty for Cable and Clamp Assembly Covered By Fluke
