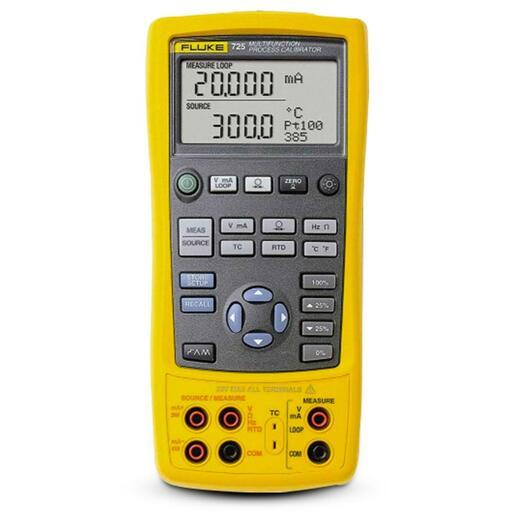

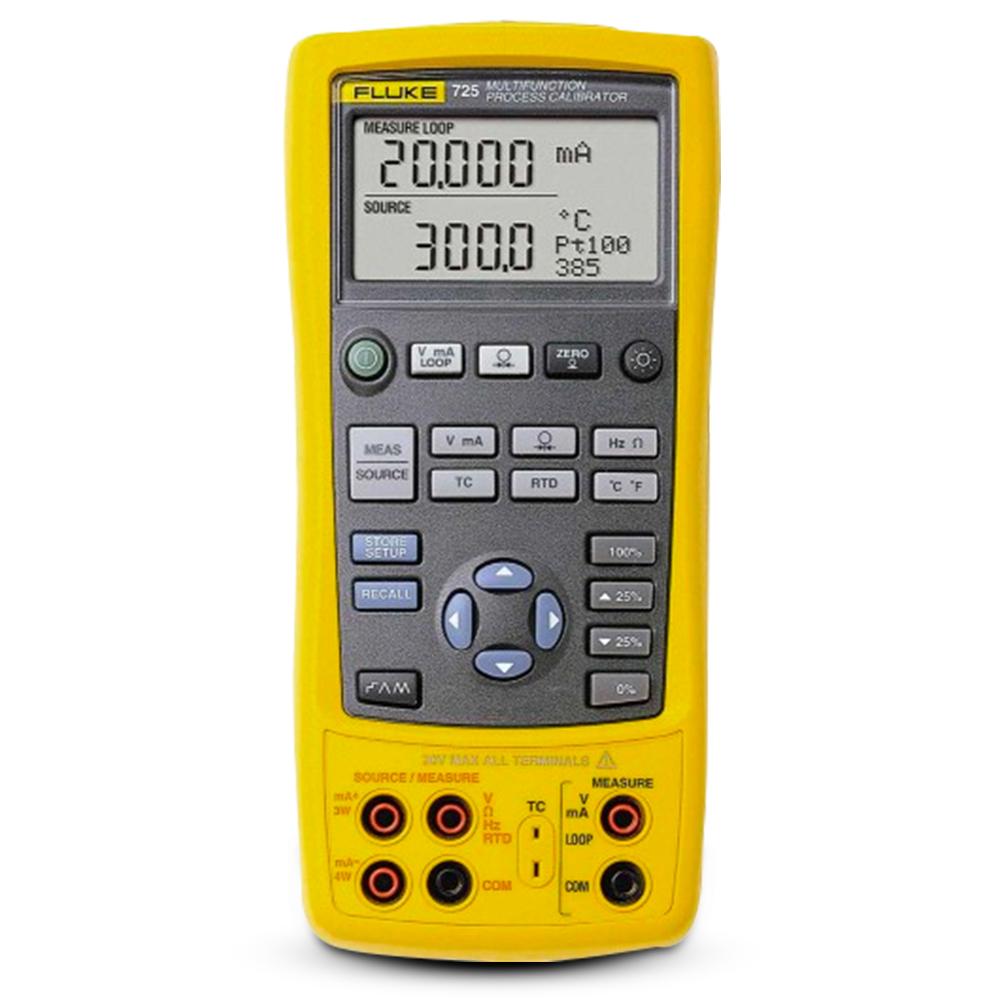

Fluke FLUKE-725/APAC/EDC (5131140) Multifunction Process Calibrator

Fluke FLUKE-725/APAC/EDC (5131140) Multifunction Process Calibrator

From the moment you pick it up, the Fluke 725 is ready to perform as a powerful, yet easy-to-use field calibrator. Its simple controls, without menus, make operation easy and the backlit display provides better visibility in poor light. It features a small, streamline shape and a rugged, reliable design that make it ideal for standing up to harsh field conditions. With the Fluke 725 Multifunction Process Calibrator you can easily source and measure almost any process parameter and test almost any process device. Measure and source mA, volts, temperature (RTDs and thermocouples), frequency, ohms, and pressure, using optional pressure modules

Features:

• Calibration of both temperature and pressure transmitters
• Measure/source/simulate mA loop parameters
• Measure and source mA, Volts DC, frequency, and resistance
• Built-in 24 V loop power supply
• Store and recall frequently used calibration set ups

Includes:

• 1 x Fluke 725 Multifunction Process Calibrator
• 1 x Set AC72 Alligator Clips
• 1 x Pair Stackable Test Leads
• 1 x Pair TL75 Test Leads
• 1 x Quick Reference Guide
• NIST-Traceable Calibration Report & Data

Specifications:

• Measurement Accuracy:
  • Voltage DC
    • 30.000 V: 0.02% + 2 Counts (Upper Display)
    • 30.000 V: 0.02% + 2 Counts (Lower Display)
    • 100.00 mV: 0.02% + 2 Counts
    • -10.00 mV to 75.00 mV: 0.025% + 1 Count (Via TC Connector)
  • Current DC: 24.000 mA: 0.02% + 2 Counts
  • Resistance:
    • 0.0 to 400.0 Ω: 0.1Ω (4-wire), 0.15 Ω (2- & 3-wire)
    • 401 to 1500 Ω: 0.5Ω (4-wire), 1 Ω (2- & 3-wire)
    • 1500 to 3200 Ω: 1Ω (4-wire), 1.5 Ω (2- & 3-wire)
  • Frequency:
    • 2.0 to 1000.0 CPM: 0.05% + 1 Count
    • 1.0 to 1100.0 Hz: 0.05% + 1 Count
    • 1.00 to 10.00 kHz: 0.05% + 1 Count
    • Sensitivity: 1 V peak-to-peak-minimum
• Source Accuracy:
  • Voltage DC
    • 100.00 mV: 0.02% + 2 Counts
    • 10.000 V: 0.02% + 2 Counts
    • -10.00 mV to 75.00mV: 0.025% + 1 Count (Via TC Connector)
  • Current DC:
    • 24.000 mA(source): 0.02% + 2 Counts
    • 24.000 mA(simulate): 0.02% + 2 Counts
  • Resistance:
    • 15.0 to 400.0 Ω: 0.15Ω (excitation current 0.15 to 0.5mA), 0.1Ω (excitation current 0.5 to 2mA)
    • 401 to 1500 Ω: 0.5Ω (excitation current 0.05 to 0.8mA)
    • 1500 to 3200 Ω: 1Ω (excitation current 0.05 to 0.4mA)
  • Frequency:
    • 2.0 to 1000.0 CPM: 0.05%
    • 1.0 to 1100.0 Hz: 0.05%
    • 1.00 to 10.00 kHz: 0.25%
    • Waveform: 5 V Peak-to-Peak Squarewave, 0.1V Offset
• Ramp functions:
  • Source functions: Voltage, Current, Resistance, Frequency, Temperature
  • Ramps: Slow ramp, Fast ramp, 25% Step-Ramp
• Loop power function:
  • Voltage: 24 V
  • Accuracy: 10%
  • Maximum current: 22 mA, Short Circuit Protected
• Step functions:
  • Source functions: Voltage, Current, Resistance, Frequency, Temperature
  • Steps: 25% of range, 100% of range
• Operating Temperature: -10ºC to 55ºC
• Storage Temperature: -20ºC to 71ºC
• Operating Altitude: 3000m
• Dimensions (L x W x H): 236mm x 130mm x 61mm
• Weight: 0.65kg

Warranty:

• 3 Years warranty covered by Fluke
