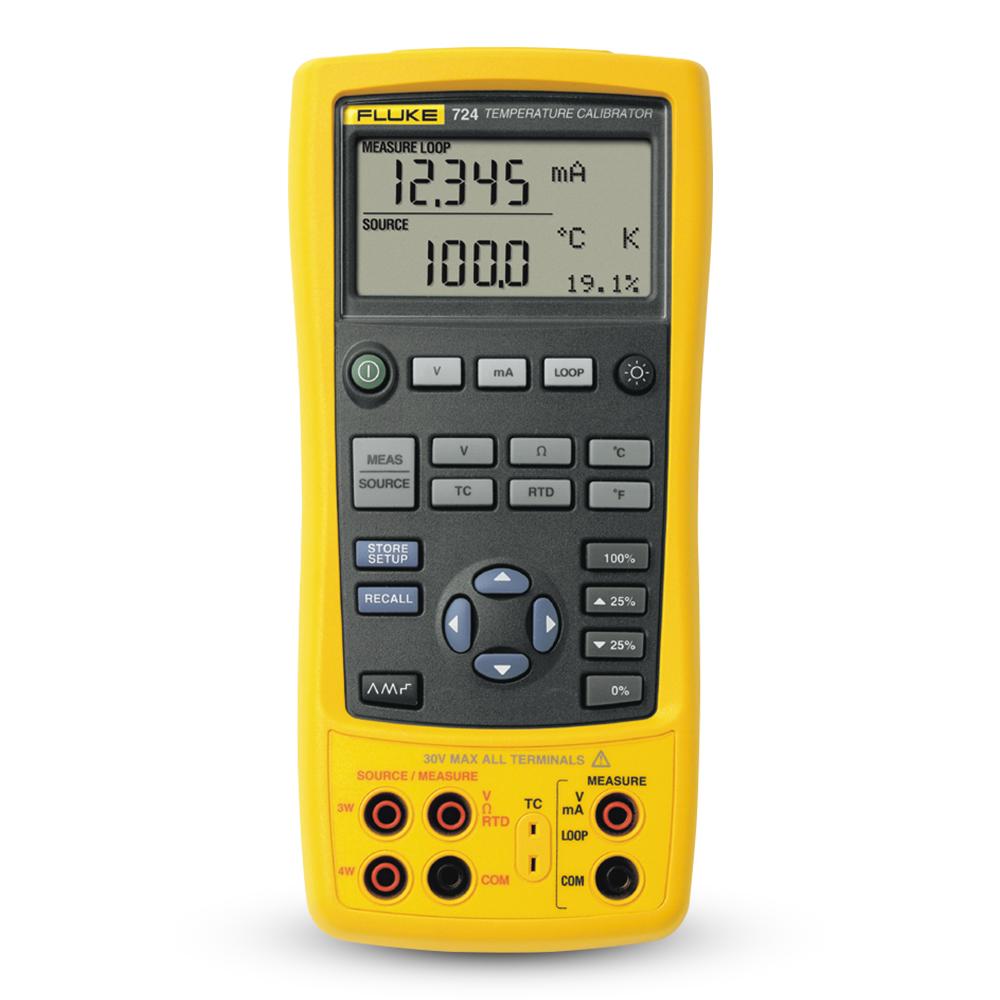

Fluke FLUKE-724/APAC/EDC (5131125) Temperature Calibrator

Fluke FLUKE-724/APAC/EDC (5131125) Temperature Calibrator

Everything you need to troubleshoot and calibrate temperature sensors and transmitters. The Fluke 724 is powerful yet easy-to-use temperature calibrator that sources and measures 10 thermocouple types, and 7 RTD types, plus volts and ohms. It also measures mA while simultaneously supplying loop power to the transmitter. Use it to test and calibrate almost any temperature instrument, so you only need one tool to expertly test all the temperature sensors and transmitters in your plant.

Features:

• Powerful, easy-to-use, high-accuracy temperature calibrator
• Test and calibrate temperature sensors and transmitters
• Measures 4 to 20 mA loops and can provide loop power
• Measures RTDs, thermocouples, ohms, and volts
• Source/simulates thermocouples, RTDs, volts, and ohms

Includes:

• 1 x Fluke 724/APAC/EDC Temperature Calibrator
• 1 x Protective Boot (Installed)
• 1 x Set AC175 Alligator Clips
• 1 x Pair Stackable Test Leads
• 1 x Pair TL75 Test Leads
• 1 x Traceable Calibration Report
• 4 x AA Alkaline Batteries (Installed)
• 1 x Quick Reference Guide

Specifications:

• Ramp functions:
  • Source functions: Voltage, current, resistance, frequency, temperature
  • Ramps: Slow ramp, Fast ramp, 25% step-ramp
• Loop power function:
  • Voltage: 24 V
  • Accuracy: 10%
  • Maximum current: 22 mA, short circuit protected
• Step functions:
  • Source functions: Voltage, current, resistance, frequency, temperature
  • Steps: 25% of range, 100% of range
• Operating Temperature: -10ºC to 55ºC
• Storage Temperature: -20ºC to 71ºC
• Safety rating: CSA C22.2 No. 1010.1:1992
• EMC: EN50082-1:1992 and EN55022:1994 Class B
• Battery Life: 25 Hours Typical
• Dimensions (L x W x H): 200mm x 96mm x 47mm
• Weight: 0.65kg

Warranty:

• 3 Years warranty covered by Fluke
