Fluke FLUKE-714B (4387869) Thermocouple Calibrator

Fluke FLUKE-714B (4387869) Thermocouple Calibrator

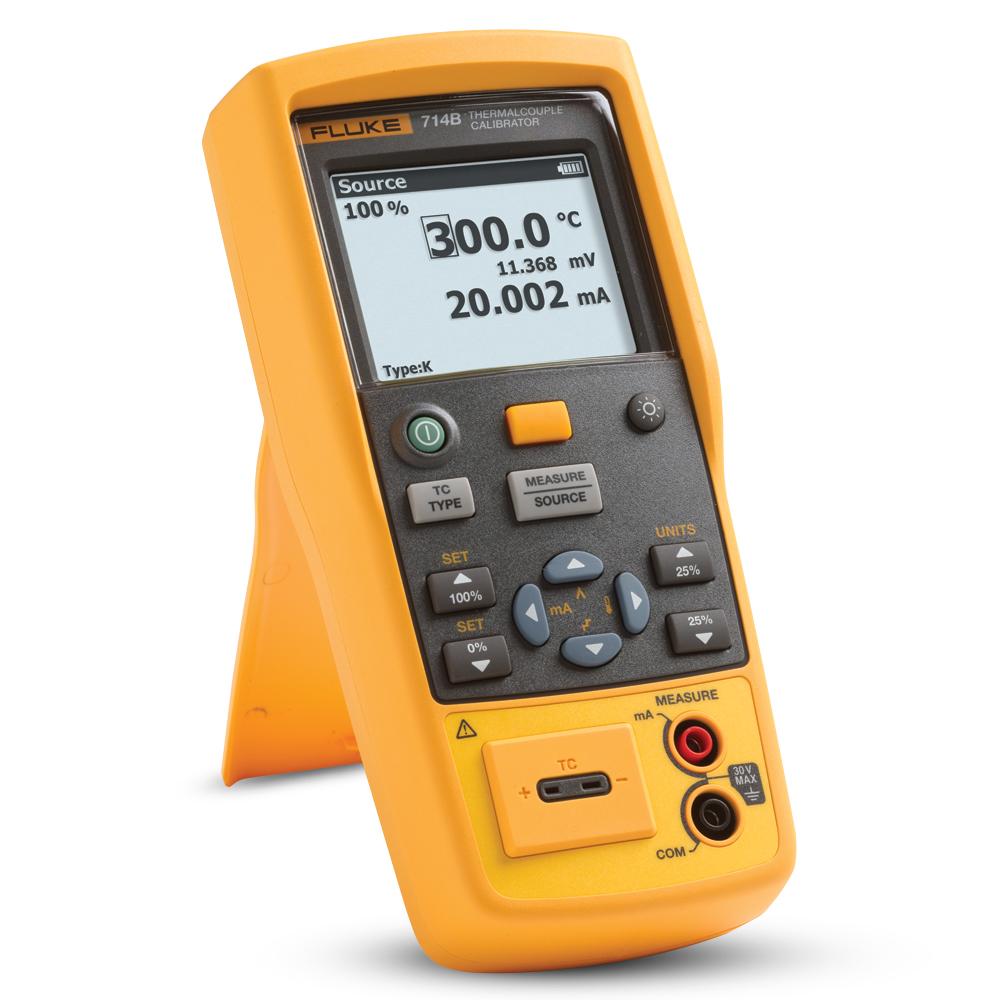

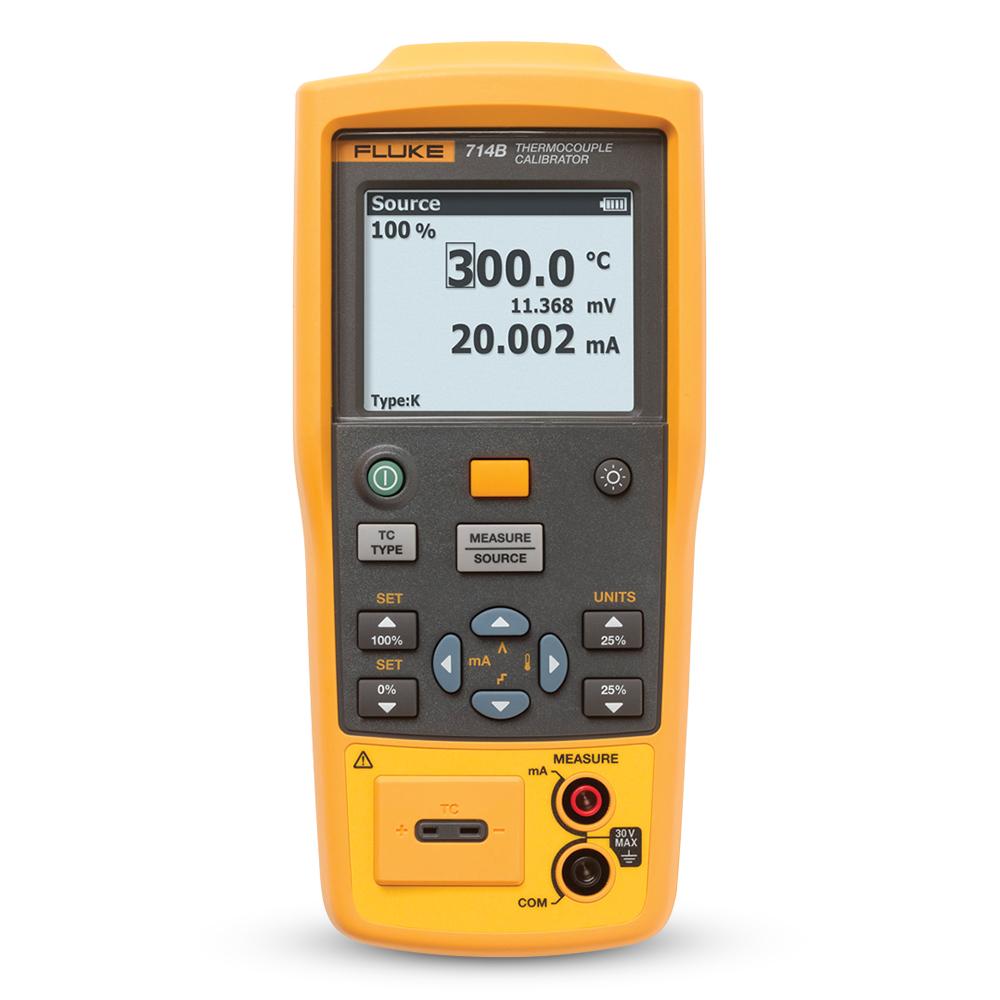

Fluke 714B is a handheld, battery-operated instrument that measures and sources a variety of thermocouple types and millivolts. Calibrates a linear thermocouple transmitter with the mV source function and measures mA while sourcing temperature. It also provides linear ramp and 25% step auto ramp functionality based on 0% and 100% settings.

Features:

• Highly accurate, full featured easy-to-use, single-function thermocouple temperature calibrator
• Measures and simulates 17 thermocouple types and millivolts
• Measures 4 to 20 mA signals while simultaneously sourcing a temperature signal
• Comes with a magnetic hanging tool designed in for convenient hands-free operation
• Features configurable 0% and 100% source settings for quick 25% linearity checks

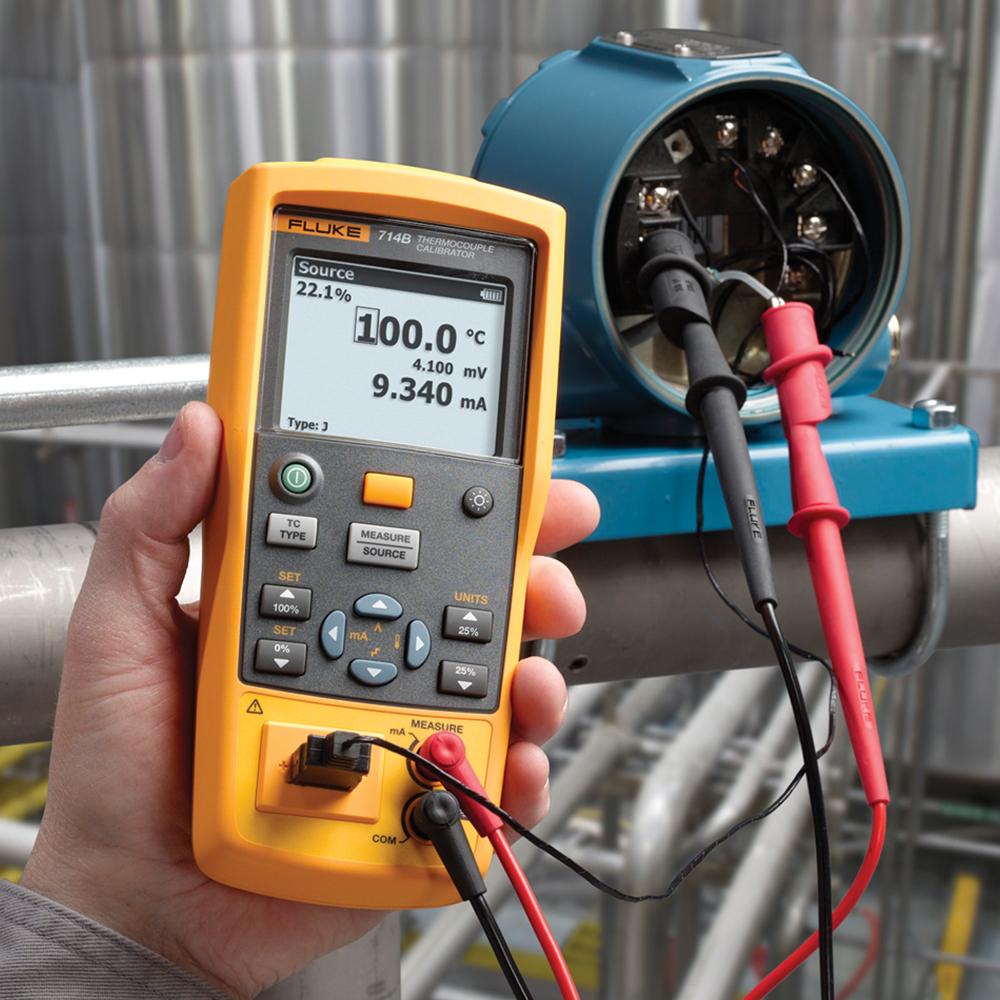

• Calibrates linear TC transmitter with mV source function
• Provides linear ramp and 25% step auto ramp based on 0% and 100% settings
• Dual inputs and backlit display for easy interpretation of measurements
• Remembers power down settings to easily restart tests when powered up
• Provides one-year and two-year specifications and traceable certification of calibration

Specifications:

• Maximum voltage applied between any terminal and earth ground or between any two terminals: 30V
• Operating temperature: -10°C to 50°C
• Storage temperature: -30°C to 60°C
• Operating altitude: 2,000 m
• Storage altitude: 12,000 m
• Relative humidity (% RH operating without condensation):
• Non condensing
  • 90% (10°C to 30°C)
  • 75% (30°C to 40°C)
  • 45% (40°C to 50°C)
• Vibration requirements: MIL-T-28800E, Class 2
• Drop text requirements: 1m
• IP Rating: IEC 60529: IP52
• Electromagnetic environment: IEC 61326-1, Portable
• Safety: IEC 61010-1, Max 30 V to earth, Pollution Degree 2
• Power supply: 4 AA NEDA 1.5A IEC LR6 batteries
• Dimensions (L x W x H): 188mm x 52mm x 84mm
• Weight: 0.5kg
