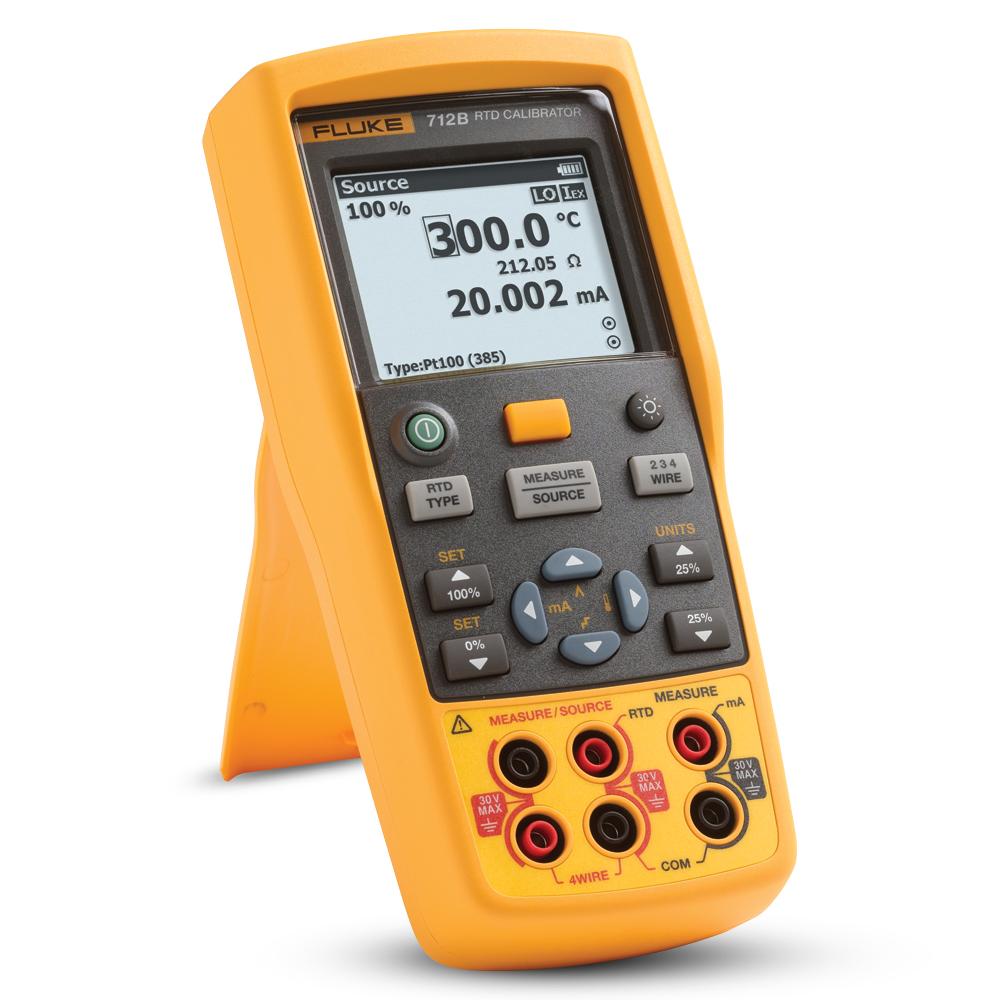

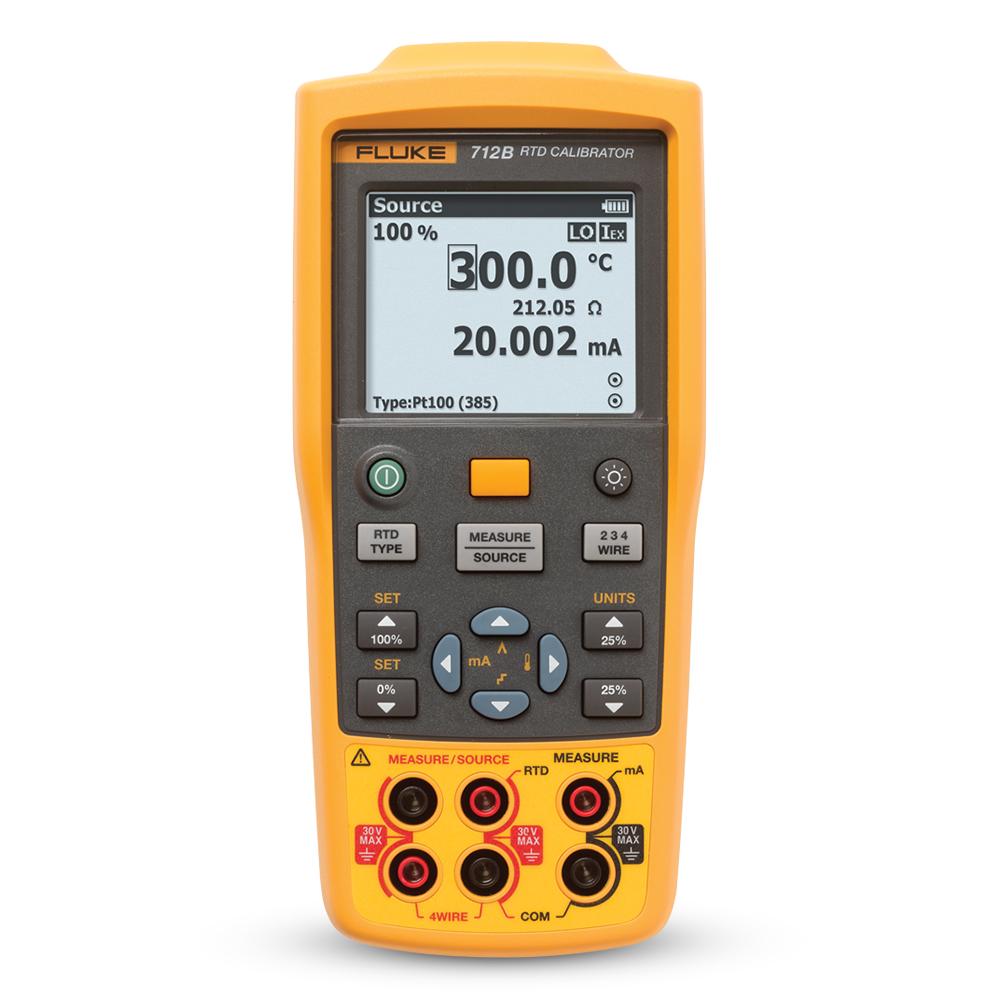

Fluke FLUKE-712B (4387857) RTD Process Calibrators

Fluke 712B RTD Calibrator is a handheld, battery-operated instrument that measures and sources a variety of RTD types and resistances. It also includes an isolated channel to measure 4-20 mA whiles sourcing a temperature signal. It offers configurable 0% and 100% source settings for quick 25% linearity checks. It also provides linear ramp and 25% step auto ramp functionality based on 0% and 100% settings.

Features:

• Highly accurate, full-featured , easy-to-use single function RTD temperature calibrator
• Measures and simulates 13 different RTD types and resistance
• Measures 4 to 20 mA signals while simultaneously sourcing a temperature signal
• Comes with a magnetic hanging tool designed in for convenient hands-free operation
• Features configurable 0% and 100% source settings for quick 25% linearity checks

Specifications:

• Maximum voltage applied between any terminal and earth ground or between any two terminals: 30V
• Operating temperature: -10°C to 50°C
• Storage temperature: -30°C to 60°C
• Operating altitude: 2,000 m
• Storage altitude: 12,000 m
• Relative humidity (% RH operating without condensation):
• Non condensing
  • 90% (10°C to 30°C)
  • 75% (30°C to 40°C)
  • 45% (40°C to 50°C)
• Vibration requirements: MIL-T-28800E, Class 2
• Drop text requirements: 1m
• IP Rating: IEC 60529: IP52
• Electromagnetic environment: IEC 61326-1, Portable
• Safety: IEC 61010-1, Max 30 V to earth, Pollution Degree 2
• Power supply: 4 AA NEDA 1.5A IEC LR6 batteries
• Dimensions (L x W x H): 188mm x 52mm x 84mm
• Weight: 0.5kg
