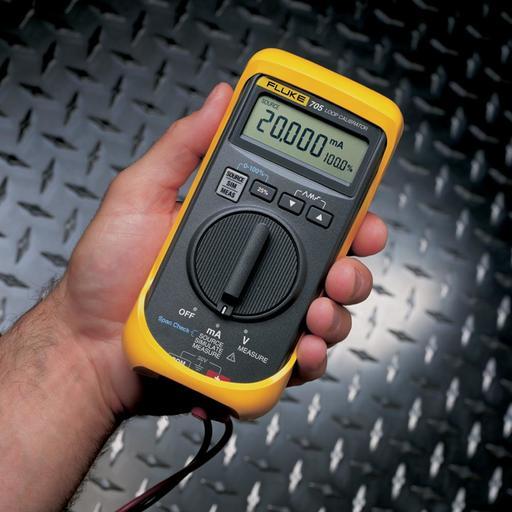

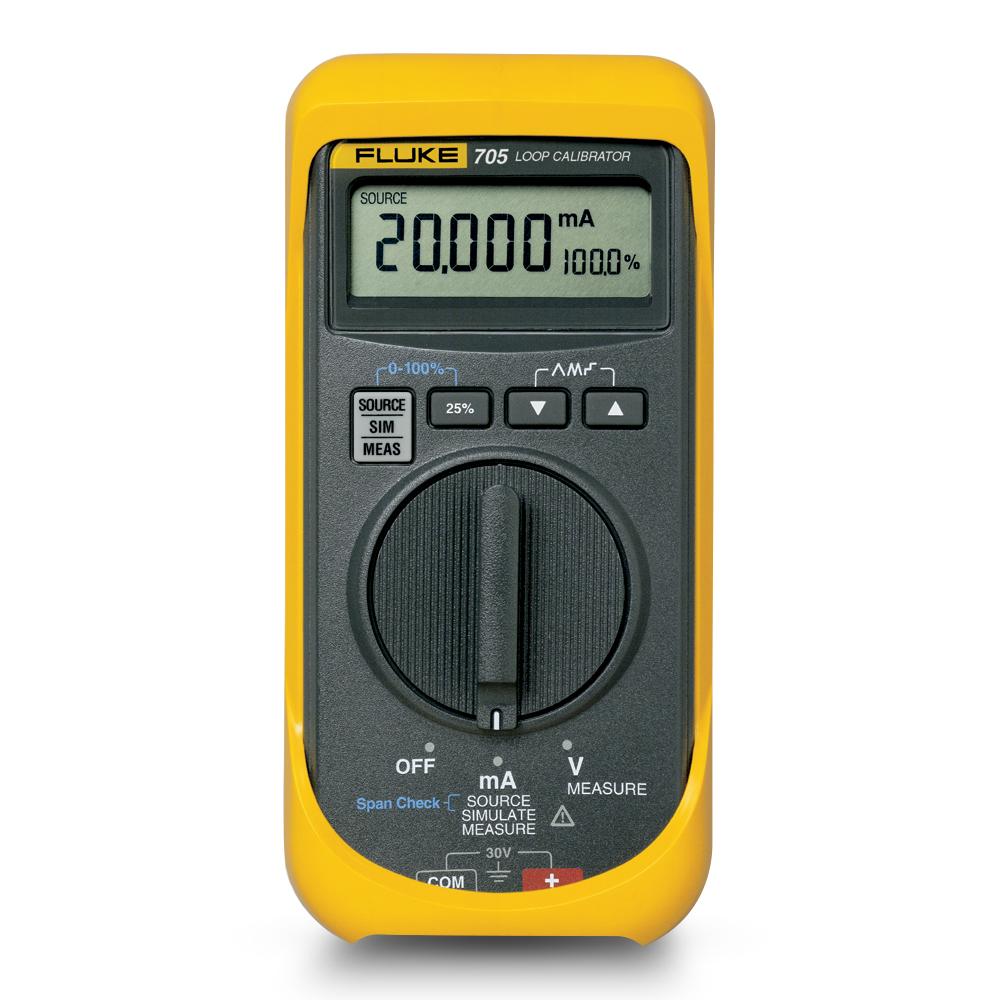

Fluke FLUKE-705 (665091) Loop Calibrator

Fluke FLUKE-705 (665091) Loop Calibrator

The Fluke 705 is a cost-effective, integrated solution for calibration, repair and maintenance of milliamp loops. It features a large display and simple, pushbutton interface for ease of use. Plus, it offers the other capabilities you need most to calibrate mA loops including:

• mA sourcing, simulation and measurement
• 0.02% accuracy and 0.001 mA resolution
• Simultaneous mA and % of span display
• Selectable step or ramp outputs
• 24 V Loop supply with mA measure
• 0-28 VDC measurement to check Loop Voltage
• Easy battery exchange without opening the case
• Includes “span check” for fast confirmation of zero and span.
• Provides selectable slow ramp, fast ramp, and step to provide smooth outputs for valve slewing and loop functional tests.
• Includes a 24 volt internal loop supply, so you can power and read a transmitter at the same time without a DMM.
• Runs on a single 9 V battery that is easily changed without breaking the calibration seal
• Offers 0 - 20 mA or 4 - 20 mA default start up modes

Specifications:

• Maximum voltage: 30 volts: Non-operating temperature: –4 °C to 60 °C
• Operating temperature: –10 °C to 55 °C
• Relative humidity: 95 % (10 °C to 30 °C); 75 % (30 °C to 40 °C); 45 % (40 °C to 50 °C); 35 % (50 °C to 55 °C)
• Operating altitude: 3,000 m max
• Shock: 1 m drop test
• Vibration: Random, 2 g, 5 Hz to 500 Hz Safety: CSA C22.2 No. 1010.1:1992
• EMC: EN50082-1:1992 and EN55022:1994 Class B
• Power: 9 V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline; two batteries in 718
• Voltage measurement:
  • Range: 0 V to 28 V
  • Resolution: 1 mV
  • Accuracy 705: 0.025 % Rdg + 1 counts 707, 707Ex: 0.015 % Rdg + 2 counts
• Current measurement:
  • Range: 0 mA to 24 mA
  • Resolution: 0.001 mA
  • Accuracy 705: 0.02 % Rdg + 2 counts 707, 707Ex: 0.015 % Rdg + 2 counts
• Current sourcing:
  • Range: 0 mA to 20 mA or 4 mA to 20 mA
  • Accuracy 705: 0.02 % Rdg + 2 counts 707, 707Ex: 0.015 % Rdg + 2 counts
  • Drive capability 705: 1000 Ω @ 24 mA 707: 1200 Ω @ 24 mA 707Ex: 700 Ω @ 20 mA
• Loop power while measuring mA: 24 V
• Voltage sourcing: n/a
• Display current and % of span Yes
• Auto ramp: Yes
• Span Check: Yes
• Battery life: 18 hours typical, at 12 mA

Warranty:

• 3 years warranty covered by Fluke
