Fluke FLUKE-381 (3610452) Remote Display True RMS AC/DC Clamp Meter with iFlex

Fluke FLUKE-381 (3610452) Remote Display True RMS AC/DC Clamp Meter with iFlex

Now one technician can do jobs that would otherwise require two people. Clamp the Fluke 381 around a conductor, remove the display and walk across the room to operate controls or remove protective equipment, all while watching real-time readings. The iFlex® Flexible Current Probe (included) expands the measurement range to 2500 A AC while providing increased display flexibility. With a cord that runs 6 feet, you can finally measure those tight spaces, awkward sized conductors and disorganized wires.

Features:

• Wireless technology allows the display to be carried up to 30 ft. away from the point of measurement for added flexibility without interference with measurement accuracy
• The removable magnetic display can be conveniently mounted where it is easily seen
• iFlex® Flexible Current Probe expands the measurement range to 2500 A AC
• CAT IV 600 V, CAT III 1000 V
• Integrated low pass filter and state-of-the-art signal processing allows for use in noisy electrical environments while providing stable readings
• Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it

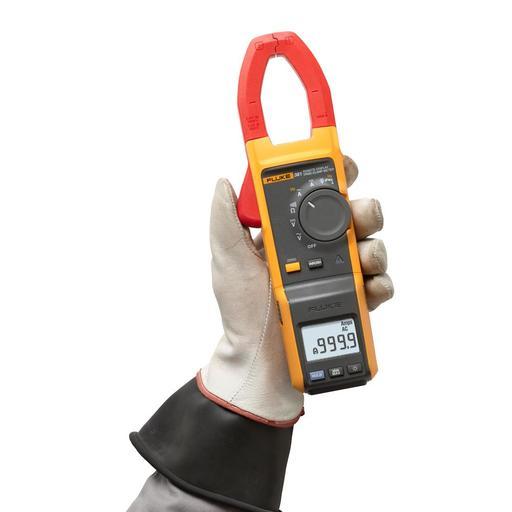

• Ergonomic design fits in your hand and can be used while wearing protective equipment
• Radio transmitter automatically sets the correct measurement range so you do not need to change the switch positions while taking a measurement

Specifications

• AC Current via Jaw Range: 999.9 A
• AC Current via Jaw Resolution: 0.1 A
• AC Current via Jaw Accuracy:
• 2% ± 5 digits (10-100 Hz)
• 5% ± 5 digits (100-500 Hz)
• AC Current via Jaw Crest Factor (50/60 Hz):
• 3 @ 500 A
• 2.5 @ 600 A
• 1.42 @ 1000 A
• Add 2% for C.F. > 2
• AC Current via Flexible Current Probe Range: 999.9 A / 2500 A (45 Hz – 500 Hz)
• AC Current via Flexible Current Probe Resolution: 0.1 A / 1 A
• AC Current via Flexible Current Probe Accuracy: 3% ± 5 digits
• AC Current via Flexible Current Probe Crest Factor (50/60 Hz):
• 3.0 at 1100 A
• 2.5 at 1400 A
• 1.42 at 2500 A
• Add 2% for C.F. > 2
• DC Current:
• Range: 999.9 A
• Resolution: 0.1 A
• Accuracy: 2% ± 5 digits
• AC Voltage:
• Range: 600 V /1000 V
• Resolution: 0.1 V / 1 V
• Accuracy: 1.5% ± 5 digits (20 – 500 Hz)
• DC Voltage:
• Range: 600.0 V /1000 V
• Resolution: 0.1 V / 1 V
• Accuracy: 1% ± 5 digits
• Frequency Range via Jaw: 5.0 – 500.0 Hz
• Frequency Resolution via Jaw: 0.1 Hz
• Frequency Accuracy via Jaw: 0.5% ± 5 digits
• Frequency Trigger Level via Jaw:
• 5 – 10 Hz, ≥ 10 A
• 10 – 100 Hz, ≥ 5 A
• 100 – 500 Hz, ≥ 10 A
• Frequency via Flexible Current Probe:
• Frequency Range via Flexible Current Probe: 5.0 to 500.0 Hz
• Frequency Resolution via Flexible Current Probe: 0.1 Hz
• Frequency Accuracy via Flexible Current Probe: 0.5% ± 5 digits
• Frequency Trigger Level via Flexible Current Probe:
• 5 to 20 Hz, ≥ 25 A
• 20 to 100 Hz, ≥ 20 A
• 100 to 500 Hz, ≥ 25 A
• Resistance:
• Range: 600 Ω/6 kΩ/60 kΩ
• Resolution: 0.1 Ω/1 Ω/10 Ω
• Accuracy: 1% ± 5 digits
• Jaw Opening: 34 mm
• Flexible Current Probe Diameter: 7.5 mm
• Flexible Current Probe Cable Length (head to electronics connector): 1.8 m
• Operating Temperature: -10°C to +50°C
• Storage Temperature: -40°C to +60°C
• Operating Humidity:
• Non condensing (< 10°C)
• ≤ 90% RH (at 10°C to 30°C)
• ≤ 75% RH (at 30°C to 40°C)
• ≤ 45% RH (at 40°C to 50°C)
• (Without Condensation)
• Operating Altitude: 2,000 meters
• Storage Altitude: 12,000 meters
• Temperature Coefficients: Add 0.1 x specified accuracy for each degree C above 28°C or below 18°C
• Wireless Frequency: 2.4 GHz ISM Band 10 meter range
• Safety Compliance:
• ANSI/ISA S82.02.01:2004
• CAN/CSA-C22.2 No. 61010-1-04
• IEC/EN 61010-1:2001 to 1000V CAT III, 600V CAT IV.
• Double Insulation Clearance: Per IEC 61010-2-032
• Double Insulation Creepage: Per IEC 61010-1
• Dimensions (L x W x H): 277mm x 88mm x 43mm
• Weight 0.35kg

Warranty:

• Three Years Warranty Covered By Fluke
