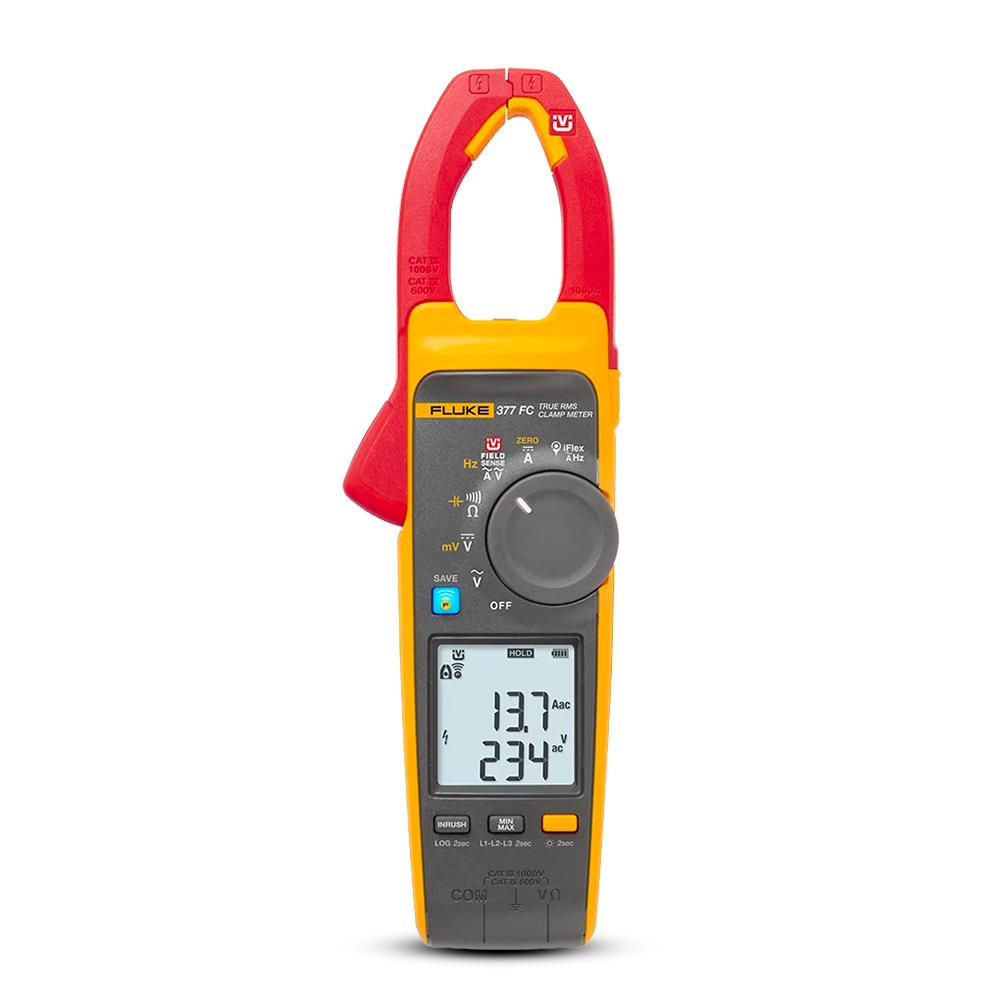

Fluke FLUKE-377 FC (5111781) 1000A AC/DC True-RMS Non-Contact Clamp Meter With iFlex

Fluke FLUKE-377 FC (5111781) 1000A AC/DC True-RMS Non-Contact Clamp Meter With iFlex

The Fluke 377 FC true-rms clamp meter uses FieldSense™ technology to make testing faster and safer, all without contacting a live conductor. You get accurate voltage and current measurements through the clamp jaw. Simply clip the black test lead to any electrical ground, put the clamp jaw around the conductor and see reliable, accurate voltage and current values on the display

Features:

• Complete 3-phase voltage and current tests in 3 quick steps
• Power quality indicator shows whether equipment or power line is faulty
• Faster, safer testing - Contactless voltage measurement - using FieldSense technology
• Measure voltage and current with your clamp jaw
• Full set of phase-to-ground and phase-to-phase values calculated and shown on the meter
• Values are also displayed on your smart phone and saved to the cloud via Fluke Connect software

Includes:

• 1 x 377 FC Non-Contact Voltage True-rms Clamp Meter
• 1 x iFlex flexible current probe (18 inches; 48 cm)
• 1 x TL224 silicone insulated test leads
• 1 x TP175 adjustable length test probes
• 1 x AC285 grounding clip (black, quantity one)
• 1 x TPAK magnetic hanging kit, with 9 inch (23 cm) hanging strap
• 1 x Premium Carrying case
• 1 x Quick reference guide

Specifications:

• Battery:
  • Type: 2 x AA IEC LR6 Alkaline
  • Life: 200h
• AC Current: Jaw
  • Range: 999.9A
  • Accuracy: 2 % ± 5 digits (10 Hz to 100 Hz), 2.5 % ± 5 digits (100 Hz to 500 Hz)
• AC Current: Flexible Current Probe
  • Range: 2500A
  • Accuracy: 3 % ± 5 digits (5 Hz to 500 Hz)
• DC Current:
  • Range: 1000A
  • Accuracy: 2 % ± 5 digits
• AC Voltage: Field Sense
  • Range: 1000A
  • Accuracy: ≤4/0 AWG 3 % ±5 digits (45 Hz to 66 Hz), ≥4/0 AWG 5 % ±5 digits (45 Hz to 66 Hz)
• AC Voltage: Test Leads
  • Range: 600.0V - 1000A
  • Accuracy: 1 % ±5 digits (20 Hz to 500 Hz)
• DC Voltage:
  • Range: 600.0A - 1000V
  • Accuracy: 1 % ±5 digits
• Capacitance:
  • Range: 1000 μF
  • Range: 0.1 μF (≤100.0 μF) - 1 μF (≤1000 μF)
  • Accuracy: 1 % ±4 digits
• Display: Dual Readout
• Jaw Opening: 34mm
• Flexible Current Prode Diameter: 7.5mm
• Flexible Current Probe Cable Length: 1.8m
• Operating Temperature: -10ºC ~ 50ºC
• Storage Temperature: -40ºC ~ 60C
• Dimensions (L x W x H): 274mm x 86mm x 47mm
• Weight: 0.463kg
