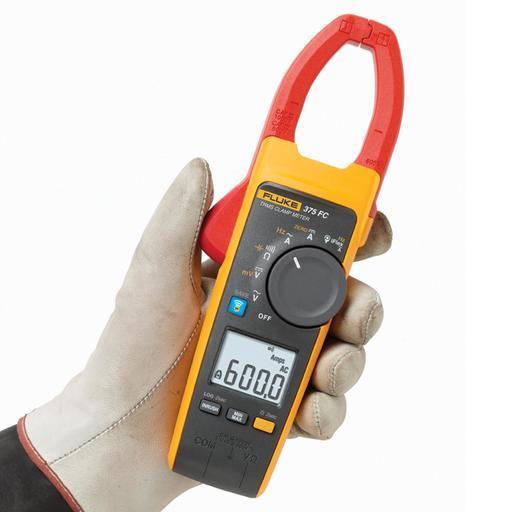

Fluke FLUKE-375FC (4695932) 375 FC True-RMS AC/DC Clamp Meter

Fluke FLUKE-375FC (4695932) 375 FC True-RMS AC/DC Clamp Meter

The Fluke 375 FC, part of the Fluke Connect family of wireless test tools, delivers high performance features and ease of use. It features a VFD low-pass filter for accurate motor drive measurements and wireless communications to transmit results to a smartphone via Fluke Connect. The 375 FC offers most of the features of the Fluke 376 FC including compatibility with the iFlex flexible current probe but, unlike the 376 FC, it does not include the iFlex® probe in the package. You can measure AC and DC current to 600 A and voltage up to 1000 V with the fixed jaw clamp. Or connect an optional iFlex® flexible current probe to expand your measurement range to 2500 A AC. The large diameter and flexible design of the iFlex probe make it easier to measure around large conductors in tight spaces or to access individual wires.

Features:

• High performance clamp meter that measures very low voltage and high resistance
• Transmits measurements to your smartphone via Fluke Connect® so you can view them at a safer distance
• Measures AC and DC current to 600 A, and AC and DC voltage to 1000 V
• Measures AC current to 2500 A AC with optional iFlex flexible current probe
• Features CAT III 1000 V, CAT IV 600 V safety rating
• Measures capacitance to 1000 µF
• Includes True-RMS voltage and current measurements to accurately measure non-linear signals
• Measures frequency to 500 Hz and resistance to 60 kΩ with continuity detection
• Includes Min/Max/Avg and inrush recording to capture variations automatically
• Offers 500 mV DC measurement range to interface with other accessories

Specifications:

• AC Current via Jaw Range: 600.0 A
• AC Current via Jaw Resolution: 0.1 A
• AC Current via Jaw Accuracy:
• 2% ±5 digits (10 Hz to 100 Hz),
• 2.5% ±5 digits (100-500 Hz)
• Crest Factor (50 Hz/60 Hz):
• 3 @ 500 A
• 2.5 @ 600 A
• Add 2% for C.F. >2
• AC Current via Flexible Current Probe
• Range: 2500 A
• Resolution: 0.1 A (≤ 600 A), 1 A (≤ 2500 A)
• Accuracy: 3% ±5 digits (5 – 500 Hz)
• Crest Factor (50/60Hz):
• 3.0 at 1100 A
• 2.5 at 1400 A
• 1.42 at 2500 A
• Add 2% for C.F. > 2
• DC Current:
• Range: 600.0 A
• Resolution:0.1 A
• Accuracy 2% ±5 digits
• AC Voltage:
• Range: 1000 V
• Resolution: 0.1 V (≤600.0 V), 1 V (≤1000 V)
• Accuracy: 1.5% ±5 digits (20 Hz to 500 Hz)
• DC Voltage:
• Range: 1000 V
• Resolution: 0.1 V (≤600.0 V)
• 1 V: (≤1000 V)
• Accuracy: 1% ±5 digits
• mV dc:
• Range: 500.0 mV
• Resolution: 0.1 mV
• Accuracy: 1% ±5 digits
• Frequency via Jaw:
• Range: 5.0 Hz to 500.0 Hz
• Resolution: 0.1 Hz
• Accuracy: 0.5% ±5 digits
• Trigger level: 5 Hz to 10 Hz, ≥10 A, 10 Hz to 100 Hz, ≥5 A
• Frequency via Flexible Current Probe:
• Range: 5.0 Hz to 500.0 Hz
• Resolution: 0.1 Hz
• Accuracy: 0.5% ±5 digits
• Trigger level: 5 Hz to 20 Hz, ≥25 A, 20 Hz to 100 Hz, ≥20 A, 100 Hz to 500 Hz, ≥25 A
• Resistance:
• Range: 60 kΩ
• Resolution: 0.1 Ω (≤600 Ω), 1 Ω (≤6000 Ω), 10 Ω (≤60 kΩ)
• Accuracy: 1% ±5 digits
• Capacitance:
• Range: 1000 μF
• Resolution: 0.1 μF (≤ 100 μF), 1 μ F (≤ 1000 μF)
• Accuracy 1% ±4 digits
• Maximum voltage between any terminal and earth ground: 1000 V
• Batteries: 2 x AA, NEDA 15A, IEC LR6
• Operating temperature: -10 °C to +50 °C
• Storage temperature: -40 °C to +60 °C
• Operating humidity - non-condensing (< 10°C):
• ≤90% RH (at 10 °C to 30 °C)
• ≤75% RH (at 30 °C to 40 °C)
• Operating altitude: 3000 m
• Storage altitude: 12,000 m
• Jaw opening: 34 mm
• Flexible current probe diameter: 7.5 mm
• Flexible current probe cable length (head to electronics connector): 1.8 m
• Safety:
• IEC 61010-1, Pollution Degree 2
• IEC 61010-2-032: CAT III 1000 V / CAT IV 600 V
• IP rating: IEC 60529: IP30, non-operating
• Radio Frequency Certification FCC ID: T68-FBLE IC:6627A-FBLE
• Dimensions (L x W x H): 249mm x 85mm x 45mm
• Weight 0.39kg

Warranty:

• Three Years Warranty Covered By Fluke
