Fluke FLUKE-289/IMSK (3449156) Industrial Multimeter Service Kit

Fluke FLUKE-289/IMSK (3449156) Industrial Multimeter Service Kit

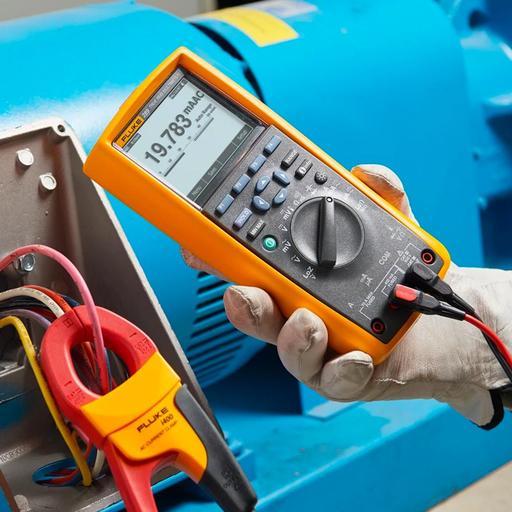

This combo kit is built around the Fluke 289, Fluke’s next-gen high performance industrial logging multimeter, combined with the i400 AC current clamp. Together, they help solve complex problems in electronics, plant automation, power distribution, and electro-mechanical equipment. The kit includes special accessories to make you even more productive on the job and will save over 15% compared with the individually priced items. Plus, you'll be working with the most trusted tools in the world.

Includes:



Features:

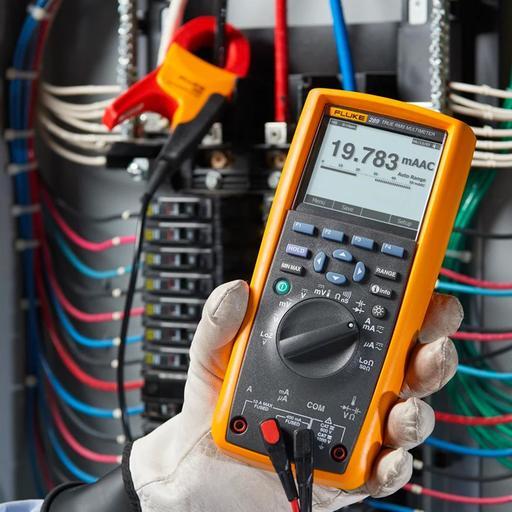

Fluke 289 DMM Features

• Provides the ability to log data and graphically
• TrendCapture graphically displays logged data session to quickly determine whether anomalies may have occurred.
• Review up 10,000 recorded events and logged readings with on-board TrendCapture
• Zoom on trend provides unprecedented ability to view and analyze TrendCapture data; zoom in up to 14 times.
• Low Pass filter for accurate voltage and frequency measurements at the same time on adjustable speed motor drives and other electrically noisy equipment.
• Includes premium test leads, alligator clips, and amp jack plugs

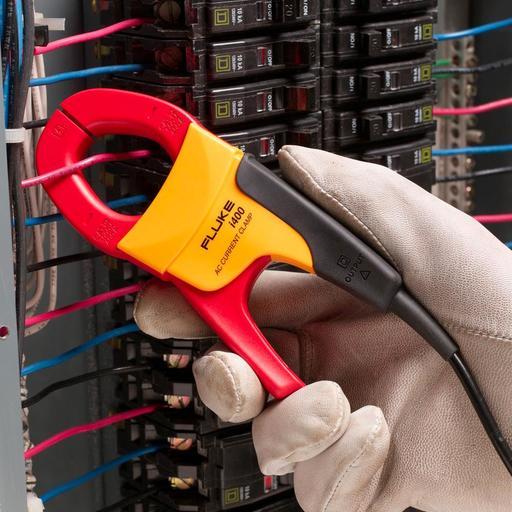

Fluke i400 AC Current Clamp Features

• Provides accurate current measurements up to 400 A ac without breaking electric circuits.
• Flexible, heat resistant test leads and alligator clips complete this high-performance kit.
• Soft non-slippery over mold handle prevents from accidental touching live wiring
• Max. conductor Ø 32 mm

1000V voltage detection range for wide range of applications use:

• Measures up to 1000 V AC/DC voltage
• Measures up to 10 A AC/DC current
• Measure resistance up to 500 MΩ
• Measure frequency up to 1000 kHz max

Safety Features:

• Rated for CAT III 1000 V for added protection
• Rated for CAT IV 600 V for added protection
• CE and CSA approved

Specifications:

• DC volts:
• Range / resolution: 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V
• Basic accuracy: 0.025%
• AC volts:
• Range / resolution: 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V
• Basic accuracy: 0.4% (True-RMS)
• DC current:
• Range / resolution: 500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A
• Basic accuracy: 0.05%
• AC current:
• Range / resolution: 500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A
• Basic accuracy: 0.6% (True-RMS)
• Temperature (excluding probe):
• Range / resolution: -200.0°C to 1350.0°C (-328.0°F to 2462.0°F)
• Basic accuracy: 1.0%
• Resistance:
• Range / resolution: 50.000 Ω, 500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 500.00 kΩ, 5.0000 MΩ, 50.00 MΩ, 500.0 MΩ
• Basic accuracy: 0.05%
• Capacitance:
• Range / resolution: 1.000 nF,10.00 nF 100.0 nF, 1.000 μF, 10.00 μF, 100.0 μF, 1000 μF, 10.00 mF, 100 mF
• Basic accuracy: 1.0%
• Frequency:
• Range / resolution: 99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz
• Basic accuracy: 0.005%
• Connectivity: Optional infrared connector via Fluke ir3000 FC
• Maximum voltage between any terminal and earth ground: 1000 V
• Battery type: 6 x AA alkaline batteries, NEDA 15A IECLR6
• Battery life: 100 hours minimum, 200 hours in logging mode
• Operating Temperature: -20°C to 55°C
• Storage Temperature: -40°C to 60°C
• Relative humidity:
• 0 to 90% (0 to 37°C)
• 0 to 65% (37°C to 45°C)
• 0 to 45% (45°C to 55°C)
• Electromagnetic compatibility: EMC EN61326–1
• Vibration: Random vibration per MIL-PRF-28800F Class 2
• Shock: 1 meter drop per IEC/EN 61010–1 3rd Edition
• Multiple on screen displays: Yes
• True-RMS AC bandwidth: 100 kHz
• dBV/dBm: Yes
• DC mV resolution: 1 μV
• Megohm range: Up to 500 MΩ
• Conductance: 50.00 nS
• Continuity beeper: Yes
• Battery/fuse access: Yes/Yes
• Elapse time clock: Yes
• Time of day clock: Yes
• Min-max-avg: Yes
• Duty cycle: Yes
• Pulse width: Yes
• Isolated optical interface: Yes
• Auto/touch hold: Yes
• Reading memory: Yes
• Log to PC: Yes
• Interval/event logging: Yes
• Logging memory: Up to 15,000 readings
• Wireless connectivity (optional): Yes
• Dimensions (L x W x H): 222mm x 102mm x 60mm
• Weight 0.871kg

Warranty:

• Limited Lifetime Warranty Covered By Fluke
