Fluke FLUKE-2062 (5353866) Advanced Pro Wire Tracer Kit

Fluke FLUKE-2062 (5353866) Advanced Pro Wire Tracer Kit

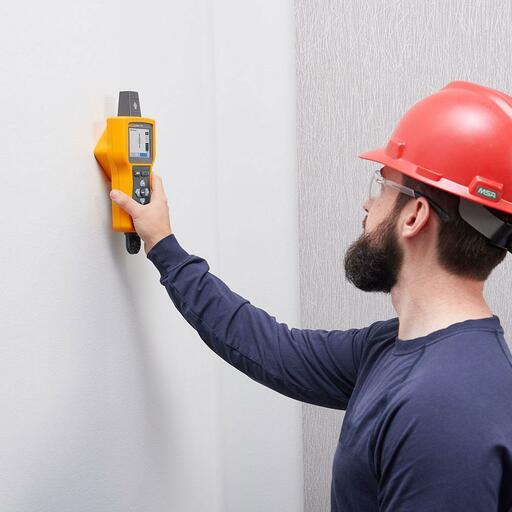

The Fluke 2062 Advanced Pro Wire Tracer accurately and safely troubleshoots energised and de-energised wires in residential, commercial, and industrial environments up to CAT IV 600 V. This CAT rating offers the highest protection available on any wire tracer. It’s designed to protect you from the most dangerous levels of transient overvoltage, spikes up to 8,000 V, that can occur in industrial and utility environments. The patented Smart SensorTM, available only on the Fluke 2062 Receiver, makes wire tracing faster and easier. It locates and displays energised wires within walls, floors, and ceilings on a high-resolution 3.5-inch TFT LCD color display. Embedded help screens on the display makes use easy, whether you’re a beginner or an expert. While the tip sensor provides an audible tone when locating wires, the Smart Sensor helps visualise and pinpoint the orientation of energised wires, eliminating guesswork. The Fluke 2062 Advanced Pro Wire Tracer Kit conveniently comes with everything required to start tracing wires and circuits. The accessory kit includes test leads, test probes, blade and round outlet adapters, and alligator clips to connect the transmitter to electrical systems. The kit also includes a magnetic hanger strap, batteries, and a hard carrying case.

Includes:

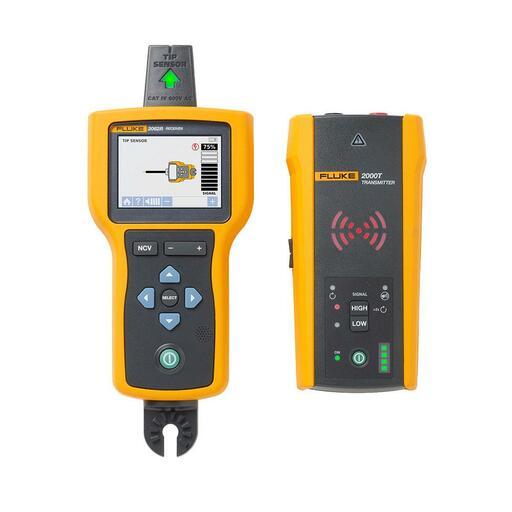

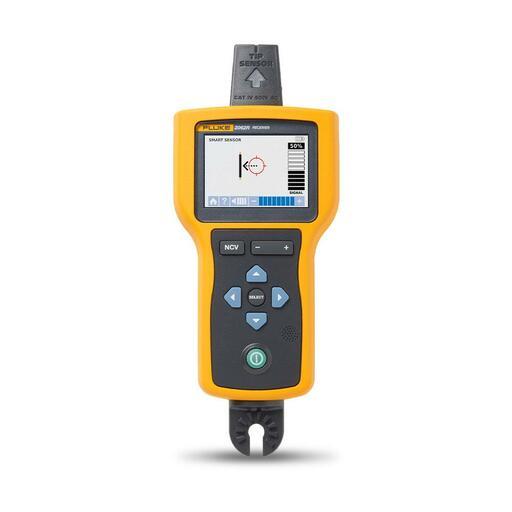

• 1 x Fluke 2062R Advanced Pro Wire Tracer Receiver with Smart Sensor™
• 1 x Fluke 2000T Advanced Wire Tracer Transmitter
• 1 x i400 AC Current Clamp
• 1 x Fluke 2000ACC Test Lead Accessory Kit for 2052/2062
• 1 x Smart Strap Magnetic Hanger
• 1 x Premium Hard Carrying Case
• 12 x Batteries

Features:

• Smart Sensor™ makes wire tracing faster and easier
• Four receiver tracing modes:
  • Smart Sensor: For energised wire detection and visualisation on the large colour LCD
  • Tip Sensor: For more precise detection of a wire
  • Breaker: For easy breaker and fuse identification based on the highest recorded signal detected from the transmitter
  • Non-Contact Voltage Detection: To trace energised wires without the use of the transmitter
• Works on energised and de-energised circuits up to CAT IV 600 V and features high, low, and loop modes for more accurate results
• Automatically senses whether the system is energised or de-energised and selects a 6 kHz or 33 kHz output frequency
• Eight receiver sensitivity levels for more flexibility and accuracy when tracing

Specifications:

• Measurement Category:
  • 2062R Receiver: CAT IV 600 V
  • 2000T Transmitter: CAT IV 600 V
  • i400 AC Current Clamp: CAT IV 600 V, CAT III 1000 V
• Operating Voltage:
  • 2062R Receiver: 600 V AC/DC
  • 2000T Transmitter: 600 V AC/DC
  • i400 AC Current Clamp: 1000 V AC
• Display Size:
  • 2062R Receiver: LCD 89mm
  • 2000T Transmitter: LEDs
• Receiver Display Dimensions (W x H): 70mm x 52mm
• Receiver Display Resolution: 480 x 320
• Operating Temperature: -20ºC to 50ºC
• Operating Altitude: 2000m
• IP Rating: IP 40
• Drop Test: 1m
• Power Supply:
  • 2062R Receiver: 4 x AA (Alkaline)
  • 2000T Transmitter: 8 x AA (Alkaline)
• Approx. Battery Life
  • 2062R Receiver: 20h
  • 2000T Transmitter: High/Low Mode: 25h / Loop Mode: 18h
• Approx. Dimensions (L x W x H):
  • 2062R Receiver: 177mm x 112mm x 65mm
  • 2000T Transmitter: 183mm x 93mm x 50mm
  • i400 AC Current Clamp: 150mm x 70mm x 30mm
• Approx. Weight:
  • 2062R Receiver: 0.54kg
  • 2000T Transmitter: 0.57kg
  • i400 AC Current Clamp: 0.12kg
