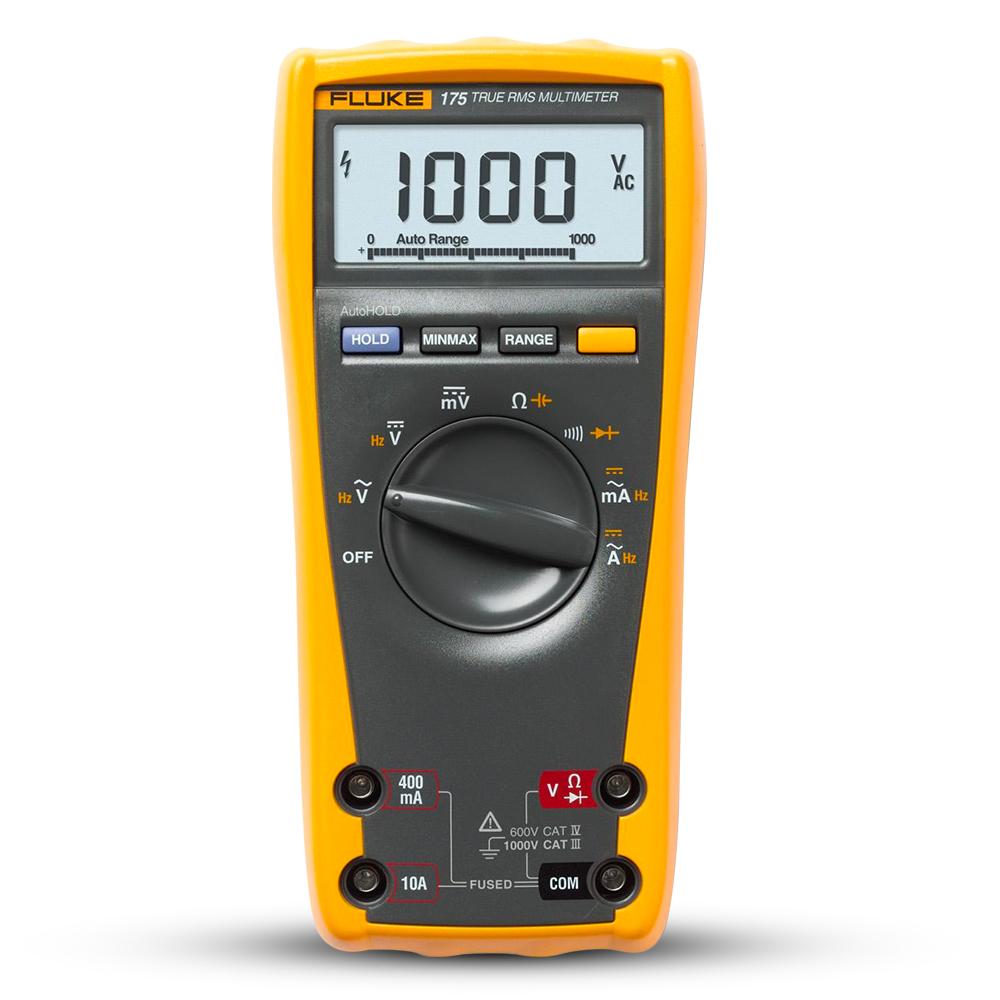

Fluke FLUKE-175 ESFP (1564551) 175 True-RMS Digital Multimeter

Fluke FLUKE-175 ESFP (1564551) 175 True-RMS Digital Multimeter

The Fluke 175 True RMS Digital Multimeter delivers the baseline general purpose features required by professional technicians around the world. You can find problems fast with all the basic troubleshooting measurements such as frequency, capacitance, resistance, continuity, and diode. And Display Hold and Auto Hold will help you capture significant events.

Features:

• Provides the baseline multimeter features you need for troubleshooting and repairing electrical and electronic systems
• Delivers accurate true-RMS AC current and voltage plus frequency, capacitance, resistance, continuity and diode measurements
• Increases productivity with manual and automatic ranging, Display Hold, Auto Hold, and Min/Max-average recording
• Safety rated CAT III 1000 V, CAT IV 600 V
• Comes with a lifetime warranty
• Allows closed-case calibration through front panel
• Includes ergonomic case with integrated protective holster

Specifications:

• Voltage DC:
• Accuracy: ±(0.15% + 2)
• Max. resolution: 0.1 mV
• Maximum: 1000 V
• Voltage AC:
• Accuracy: ±(1.0% + 3)
• Max. resolution: 0.1 mV
• Maximum: 1000 V
• Current DC:
• Accuracy: ±(1.0% + 3)
• Max. resolution: 0.01 mA
• Maximum: 10 A
• Current AC:
• Accuracy: ±(1.5% + 3)
• Max. resolution: 0.01 mA
• Maximum: 10 A
• Resistance:
• Accuracy: ±(0.9% + 1)
• Max. resolution: 0.1 Ω
• Maximum: 50 MΩ
• Capacitance:
• Accuracy: ±(1.2% + 2)
• Max. resolution: 1 nF
• Maximum: 10,000 µF
• Frequency:
• Accuracy: ±(0.1% + 1)
• Max. resolution: 0.01 Hz
• Maximum: 100 kHz
• Operating temperature: -10°C to +50°C
• Storage temperature: -30°C to +60°C
• Humidity (without condensation):
• 0% – 90% (0°C – 35°C)
• 0% – 70% (35°C – 50°C)
• Overvoltage category:
• EN 61010–1 to 1000 V CAT III
• EN 61010–1 to 600 V CAT IV
• Agency approvals: UL, CSA, TÜV listed and VDE Pending
• Battery life: ~200 hours typical, without backlight
• Dimensions (L x W x H): 185mm x 90mm x 43mm
• Weight 0.420kg

Warranty:

• Limited Lifetime Warranty Covered By Fluke
