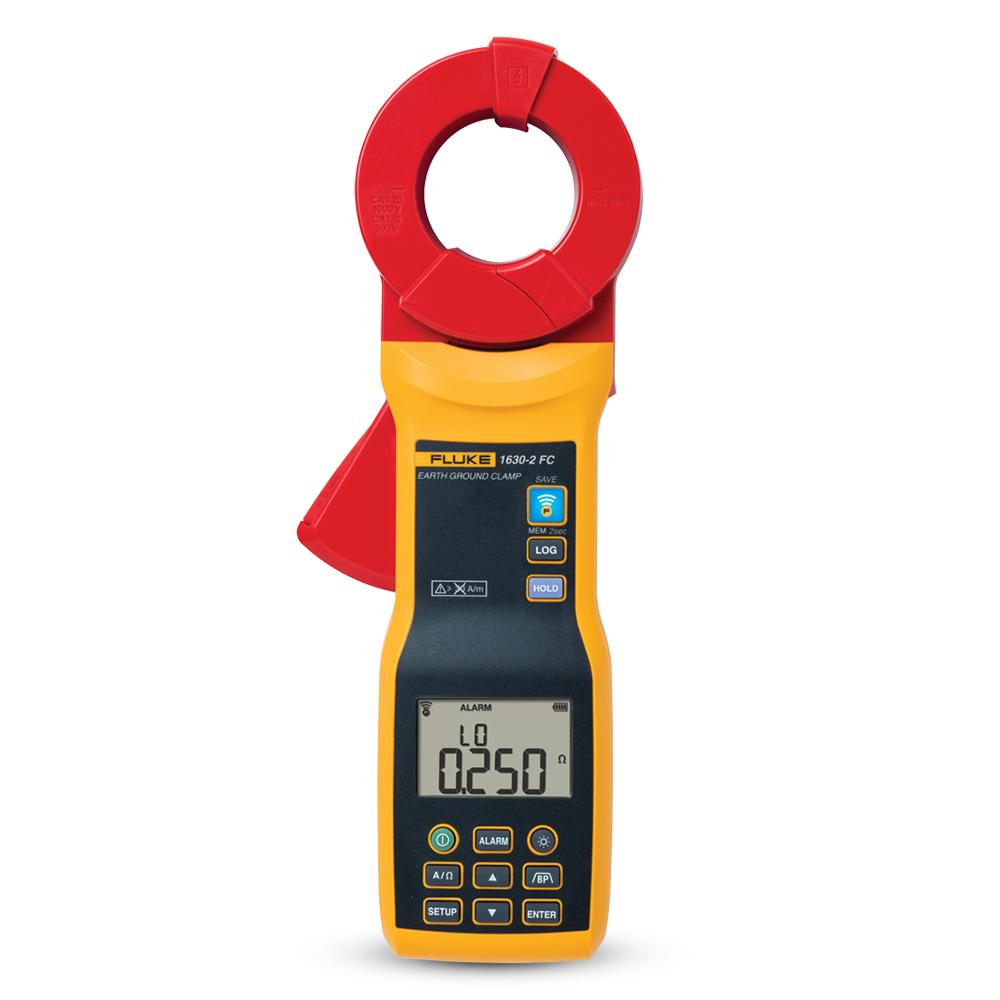

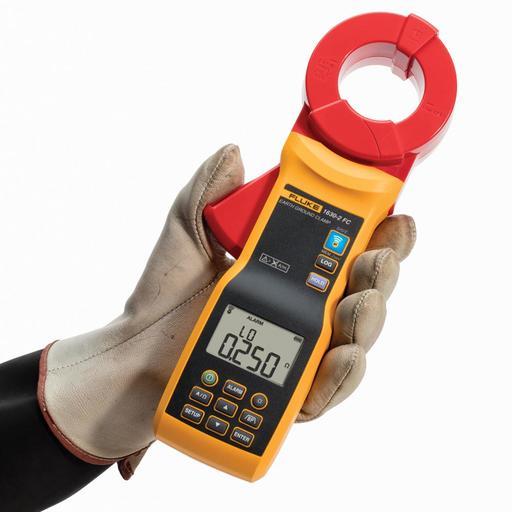

Fluke FLUKE-1630-2-FC (4829532) Earth Ground Clamp

Fluke FLUKE-1630-2-FC (4829532) Earth Ground Clamp

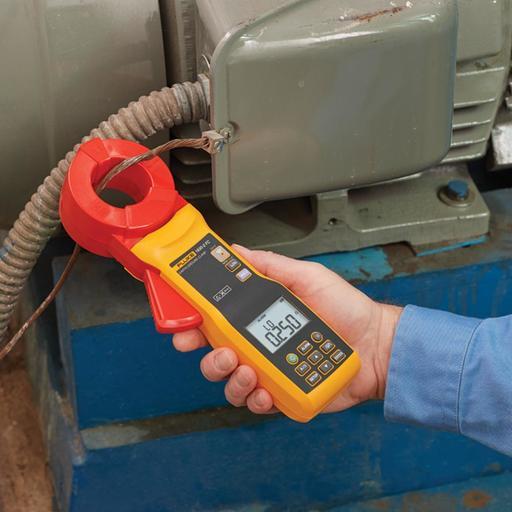

The 1630-2 FC clamp measures earth ground loop resistances for multi-grounded systems using the dual-clamp jaw. This test technique eliminates the dangerous and time-consuming activity of disconnecting parallel grounds, as well as the process of finding suitable locations for auxiliary test stakes. You can also perform ground tests in places that were previously difficult: inside buildings, on power pylons or anywhere you don't have access to soil to place auxiliary test stakes.

Features:

• Identify ac leakage currents without disconnecting the earth ground stake from the grounding system–ideal for system troubleshooting
• Rugged heavy-duty clamp jaw stays in alignment and in calibration even in every day, on-the-job industrial environments
• The earth ground clamp saves time by automatically recording data at pre-set intervals
• Saves up to 32,760 measurements in memory at the set logging interval
• Saves time by recording and storing measured values
• User-defined high/low alarm limits, for rapid measurement evaluation
• Selectable band-pass filter function removes unwanted noise from the ac leakage current measurement
• The 1630-2 FC supports the Fluke Connect Wireless System connects the clamp with an app on your smartphone or tablet
• You can save these measurements, and images to Fluke Connect Cloud storage and share with your team
• Maximize uptime and make confident maintenance decisions with data you can trust and trace
• Access baseline, historical and current measurements by asset
• Share your measurement data using ShareLive™ video calls and emails
• The 1630-2 FC is part of a growing system of connected test tools and equipment maintenance software. Visit the website to learn more about the Fluke Connect system

Specifications:

• Maximum voltage to earth ground: 1000V
• Battery type: AA alkaline IEC/EN LR6 (x4)
• Frequency range: 40 Hz to 1 kHz
• Ingress protection: IEC/EN 60529: IP30 with jaw closed
• LCD:
  • Digital reading: 9999 counts
  • Refresh rate: 4 per second
• Operating temperature: -10 °C to + 50 °C
• Storage temperature: -20 °C to + 60 °C
• Operating humidity:
• Non condensing (<10 °C) (< 50 °F)
  • ≤90% RH (at 10 °C to 30 °C [50 °F to 86 °F]
  • ≤75% RH (at 30 °C to 40 °C [86 °F to 104 °F])
  • ≤45% RH (at 40 °C to 50 °C [104 °F to 122 °F])
• Operating altitude: 2000 m (6561 feet
• Storage altitude: 12 000 m (39,370 feet)
• Reference temperature: 23 °C ±5 °C (73 °F ±9 °F)
• Temperature coefficient: 0.15% x (specified accuracy)/ °C (<18 °C or >28 °C [<64.4 °F or >82.4 °F])
• Overload indication: OL
• Data logging capacity: Minimum of 32,760 measurements
• General: IEC/EN 61010-1: Pollution Degree 2 IEC/EN 61557-1
• Measurement: IEC/EN 61010-2-032: CAT IV 600 V / CAT III 1000 V
• Current clamp for leakage current measurements: IEC/EN 61557-13: Class 2, ≤30 A/m
• Resistance to earth: IEC/EN 61557-5
• Effectiveness of thepProtective measures: IEC/EN 61557-16
• Electromagnetic compatibility (EMC):
  • International: IEC/EN 61326-1: Portable Electromagnetic Environment, CISPR 11: Group 1, Class B, IEC/EN 61326-2-2
• Wireless Radio:
• Frequency range: 2412 MHz to 2462 MHz
• Output power: <10 mW
• Radio frequency certification: FCC ID:T68-FBLE IC:6627A-FBLE
• Conductor size: 40 mm (1.57 in) approximately
• Earth Ground Loop Resistance:
• Range:
  • 0.025 Ω to 0.249 Ω
  • 0.250 Ω to 0.999 Ω
  • 1.000 Ω to 9.999 Ω
  • 10.00 Ω to 49.99 Ω
  • 50.00 Ω to 99.99 Ω
  • 100.0 Ω to 199.9 Ω
  • 200.0 Ω to 399.9 Ω
  • 400 Ω to 599 Ω
  • 600 Ω to 1500 Ω
• Accuracy¹  ± (% of reading + Ω):
  • 1.5% + 0.02 Ω
  • 1.5% + 0.05 Ω
  • 1.5% + 0.10 Ω
  • 1.5% + 0.30 Ω
  • 1.5% + 0.50 Ω
  • 3.0% + 1.0 Ω
  • 5.0% + 5.0 Ω
  • 10.0% + 10 Ω
  • 20.00%
• Dimensions (L x W x H): 283mm x 105mm x 48 mm
• Weight: 0.8kg
