Fluke FLUKE-1587/MDT FC (4692716) 2-in-1 Insulation Advanced Motor and Drive Multimeter Troubleshooting Kit

Fluke FLUKE-1587/MDT FC (4692716) 2-in-1 Insulation Advanced Motor and Drive Multimeter Troubleshooting Kit

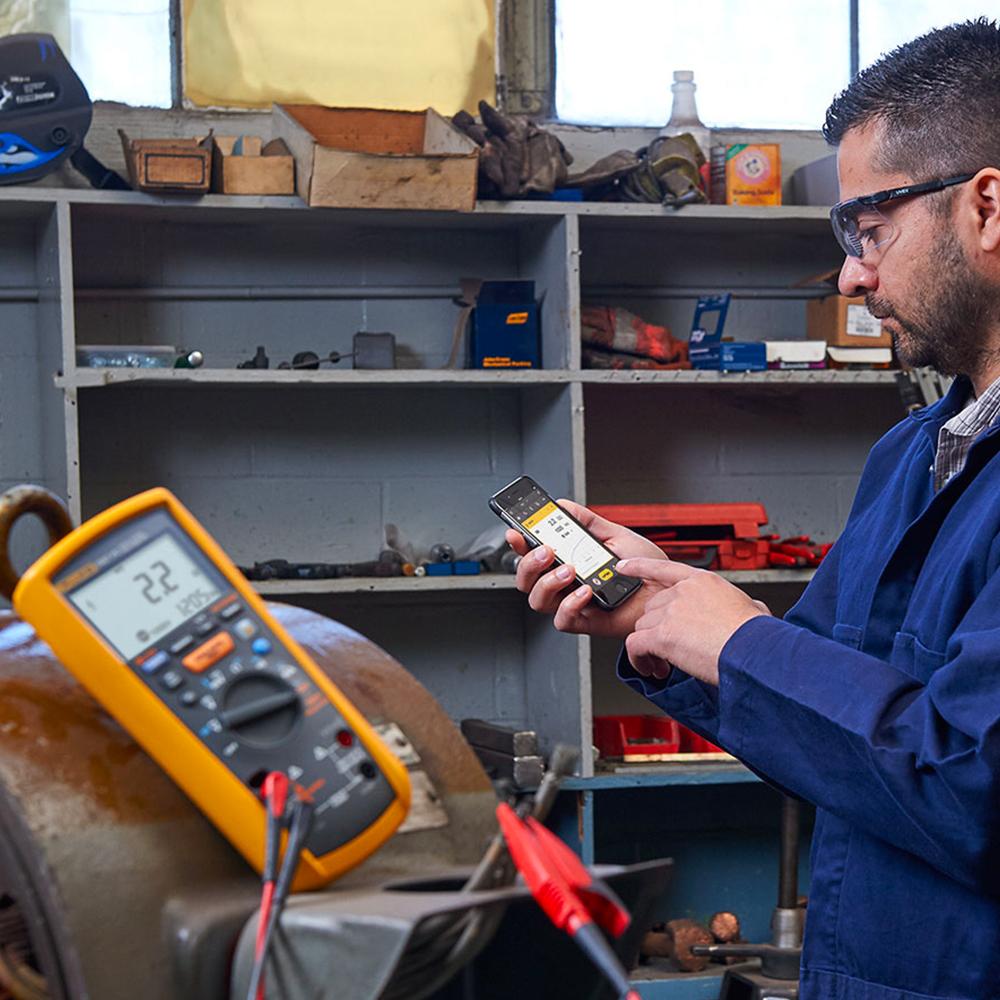

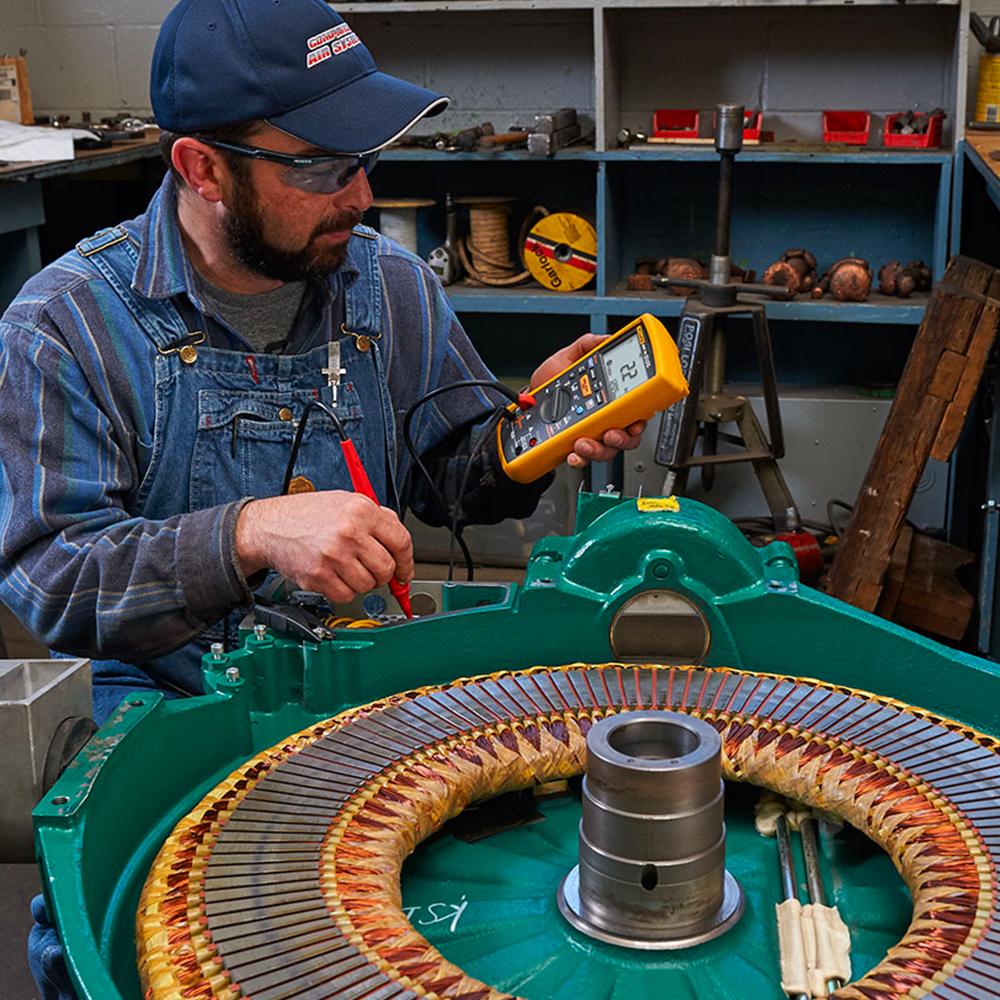

Fluke Connect + Fluke's 1587 FC Insulation Multimeter helps you identify tough problems, fix, and wirelessly communicate your work quickly and easily - all at a safe distance. The Fluke i400 AC Current Clamp is a high-safety current clamp for digital multimeters. The current clamp provides accurate current measurements without breaking electric circuits, helping you take measurements safely with industry standard safety ratings. Fluke 9040 Phase Rotation Indicator is effective for measuring phase rotation in all areas where three phase supplies are used to feed motors, drives and electrical systems. It allows rapid determination of phase sequence and ideally suited for commercial and industrial applications.

Features:

• The Fluke 1587 FC 2-in-1 Insulation DMM:
• Pl/DAR measurements with TrendIt™ graphs
• Memory storage through Fluke Connect Measurements app
• Temperature Compensation through Fluke Connect Measurements app
• VFD low-pass filter for accurate motor drive measurements
• Insulation test voltages 50 V, 100 V, 250 V, 500 V, 1000 V
• Insulation test voltages 500 V, 1000 V
• Insulation test: 0.01 MΩ to 2.0 GΩ
• Insulation test: 0.1 MΩ to 600 MΩ
• Auto-discharge of capacitive voltage
• Insulation test smoothing reading
• Frequency / Capacitance / Diode test / Temperature
• Min/Max / AC/DC Voltage / DC Millivolts / AC/DC Milliamps
• Resistance (0.1 Ω to 50 MΩ) / Continuity / Auto power off
• Fluke i400 AC Current Clamp:
• Use with your Fluke 1587 FC to measure 1A AC to 400 A AC
• 1 mA/Amp output guarantees easy reading
• CAT III 1000 V / CAT IV 600 V overvoltage rating for added user protection
• Specially designed to offer maximum utility in a very compact shape
• Maximum conductor: Ø 32 mm
• Fluke 9040 Phase Rotation Indicator:
• Large display to easily determine field rotation and phase sequence
• Indication for all three phases
• CAT III 600 V overvoltage rating

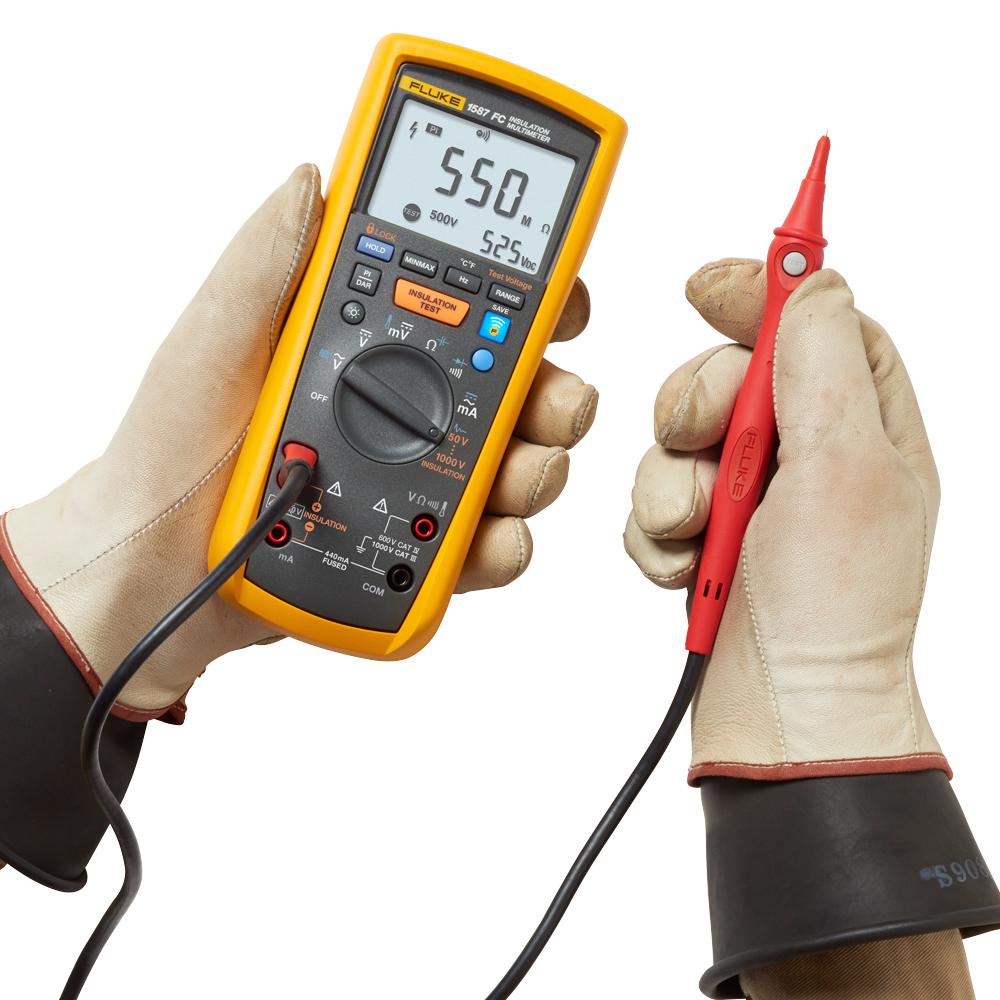

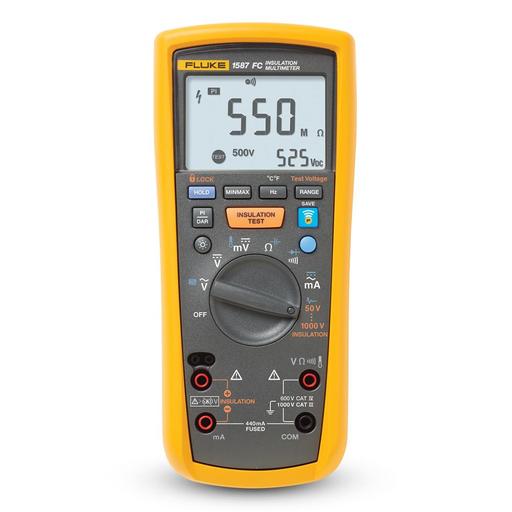

Fluke 1587 FC Insulation Multimeter

Specifications:

• AC voltage Range - 600.0 mV:
• Resolution: 0.1 mV
• Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts): ±(1% + 3)
• Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts): ±(2% + 3)
• AC voltage Range - 6.000 V:
• Resolution: 0.001 V
• Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts): ±(1% + 3)
• Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts): ±(2% + 3)
• AC voltage Range - 60.00 V:
• Resolution: 0.01 V
• Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts): ±(1% + 3)
• Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts): ±(2% + 3)
• AC voltage Range - 600.0 V:
• Resolution: 0.1 V
• Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts): ±(1% + 3)
• Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts): ±(2% + 3)
• AC voltage Range - 1000 V:
• Resolution: 1 V
• Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts): ±(2% + 3)
• Accuracy 60 Hz to 5000 Hz ±(% of Rdg + Counts): ±(2% + 3)
• Low-Pass Filter Voltage Range 600.0 mV:
• Resolution: 0.1 mV
• Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts): ±(1% + 3)
• Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts): +(2% + 3), -(6% - 3)
• Low-Pass Filter Voltage Range 6.000 V:
• Resolution: 0.001 V
• Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts): ±(1% + 3)
• Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts): +(2% + 3), -(6% - 3)
• Low-Pass Filter Voltage Range 60.00 V:
• Resolution: 0.01 V
• Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts): ±(1% + 3)
• Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts): +(2% + 3), -(6% - 3)
• Low-Pass Filter Voltage Range 600.0 V:
• Resolution: 0.1 V
• Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts): ±(1% + 3)
• Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts): +(2% + 3), -(6% - 3)
• Low-Pass Filter Voltage Range 1000 V:
• Resolution: 1 V
• Accuracy 50 Hz to 60 Hz ±(% of Rdg + Counts): ±(2% + 3)
• Accuracy 60 Hz to 400 Hz ±(% of Rdg + Counts): +(2% + 3), -(6% - 3)
• DC Voltage Measurement Range - 6.000 V dc:
• Resolution: 0.001 V
• Accuracy ±(% of Rdg + Counts): ±(0.09% + 2)
• DC Voltage Measurement Range - 60.00 V dc:
• Resolution: 0.01 V
• Accuracy ±(% of Rdg + Counts): ±(0.09% + 2)
• DC Voltage Measurement Range - 600.0 V dc:
• Resolution: 0.1 V
• Accuracy ±(% of Rdg + Counts): ±(0.09% + 2)
• DC Voltage Measurement Range - 1000 V dc:
• Resolution: 1 V
• Accuracy ±(% of Rdg + Counts): ±(0.09% + 2)
• DC Voltage Input impedance: 10 MΩ (nominal), <100 pF
• DC Voltage Normal mode rejection ratio: >60 dB @ 50 Hz or 60 Hz
• DC Voltage Common mode rejection ratio: >120 dB @ dc, 50 Hz or 60 Hz (1 k unbalance)
• DC Millivolts Measurement Range - 600.0 mVdc:
• Resolution: 0.1 mV
• Accuracy ±(% of Rdg + Counts): ±(0.1% + 1)
• DC and AC Current Measurement (AC 45 Hz to 1000 Hz):
• Range: 400 mA
• Resolution: 0.1 mA
• Accuracy ±(% of Rdg+Counts): ±(1.5% + 2)¹
• Burden voltage (Typical): 2 mV/mA
• Range: 60 mA
• Resolution: 0.01 mA
• Accuracy ±(% of Rdg+Counts): ±(1.5% + 2)¹
• Burden voltage (Typical): 2 mV/mA
• DC Range - 400 mA:
• Resolution: 0.1 mA
• Accuracy ±(% of Rdg+Counts): ±(0.2% + 2)
• Burden voltage (Typical): 2 mV/mA
• DC Range - 60 mA:
• Resolution: 0.01 mA
• Accuracy ±(% of Rdg+Counts): ±(0.2% + 2)
• Burden voltage (Typical): 2 mV/mA
• DC Overload: 600 mA for 2 minutes maximum
• DC Fuse protection for mA input: 0.44 mA, 1000 V, IR 10 kA
• AC conversion: Inputs are ac-coupled and calibrated to the rms value of sine wave input
• Ohms Measurement Range - 600.0 Ω:
• Resolution: 0.1 Ω
• Accuracy +(% of Rdg+Counts): ±(0.9% + 2)
• Ohms Measurement Range - 6.000 kΩ:
• Resolution: 0.001 kΩ
• Accuracy +(% of Rdg+Counts): ±(0.9% + 2)
• Ohms Measurement Range - 60.00 kΩ:
• Resolution: 0.01 kΩ
• Accuracy +(% of Rdg+Counts): ±(0.9% + 2)
• Ohms Measurement Range - 600.0 kΩ:
• Resolution: 0.1 KΩ
• Accuracy +(% of Rdg+Counts): ±(0.9% + 2)
• Ohms Measurement Range - 6.000 MΩ:
• Resolution: 0.001 MΩ
• Accuracy +(% of Rdg+Counts): ±(0.9% + 2)
• Ohms Measurement Range - 50.0 MΩ:
• Resolution: 0.01 MΩ
• Accuracy +(% of Rdg+Counts): ±(1.5% + 3)
• Ohms Overload protection: 1000 V rms or dc
• Ohms Open circuit test voltage: <8.0 V dc
• Short circuit current: <1.1 mA
• Diode test indication: Display voltage drop: 0.6 V at1.0 mA nominal test current:
• Diode Test Accuracy: ±(2% + 3)
• Continuity Test:
• Continuity indication: Continuous audible tone for test resistance below 25 Ω and off above 100 Ω. Maximum Reading; 1000 Ω
• Open circuit voltage: <8.0 V
• Short circuit current: 1.0 mA typical
• Overload protection: 1000 V rms
• Response time: >1 m sec
• Frequency Measurement Range - 99.99 Hz:
• Resolution: 0.01 Hz
• Accuracy ±(% of Rdg+Counts): ±(0.1% + 1)
• Frequency Measurement Range - 999.9 Hz:
• Resolution: 0.1 Hz
• Accuracy ±(% of Rdg+Counts): ±(0.1% + 1)
• Frequency Measurement Range - 9.999 kHz:
• Resolution: 0.001 kHz
• Accuracy ±(% of Rdg+Counts): ±(0.1% + 1)
• Frequency Measurement Range - 99.99 kHz:
• Resolution: 0.01 kHz
• Accuracy ±(% of Rdg+Counts): ±(0.1% + 1)
• Frequency Counter Sensitivity - 600.0 mV ac:
• V ac Sensitivity (RMS Sine Wave) 5 Hz to 20 kHz: 100.0 mV
• V ac Sensitivity (RMS Sine Wave) 20 kHz to 100 kHz: 150.0 mV
• DC Trigger Levels to 20 kHz: NA
• Frequency Counter Sensitivity - 6.0 V:
• V ac Sensitivity (RMS Sine Wave) 5 Hz to 20 kHz: 1.0 V
• V ac Sensitivity (RMS Sine Wave) 20 kHz to 100 kHz: 1.5 V
• DC Trigger Levels to 20 kHz: -400.0 mV and 2.5 V
• Frequency Counter Sensitivity - 60.0 V:
• V ac Sensitivity (RMS Sine Wave) 5 Hz to 20 kHz: 10.0 V
• V ac Sensitivity (RMS Sine Wave) 20 kHz to 100 kHz: 36.0 V
• DC Trigger Levels to 20 kHz: 1.2 V and 4.0 V
• Frequency Counter Sensitivity - 600.0 V:
• V ac Sensitivity (RMS Sine Wave) 5 Hz to 20 kHz: 100.0 V
• V ac Sensitivity (RMS Sine Wave) 20 kHz to 100 kHz: -
• DC Trigger Levels to 20 kHz: 12.0 V and 40.0 V
• Frequency Counter Sensitivity - 1000.0 V:
• V ac Sensitivity (RMS Sine Wave) 5 Hz to 20 kHz: 300.0 V
• V ac Sensitivity (RMS Sine Wave) 20 kHz to 100 kHz: -
• DC Trigger Levels to 20 kHz: 12.0 V and 40.0 V
• Capacitance Range 1000 nF:
• Resolution: 1nF
• Accuracy ±(% of Rdg+Counts): ±(1.2% + 2)
• Capacitance Range 10.00 μF
• Resolution: 0.01 μF
• Accuracy ±(% of Rdg+Counts): ±(1.2% + 2)
• Capacitance Range 100.0 μF
• Resolution:0.1 μF
• Accuracy ±(% of Rdg+Counts): ±(1.2% ±90 counts)
• Capacitance Range 9999 μF
• Resolution:1 μF
• Accuracy ±(% of Rdg+Counts): ±(1.2% ±90 counts)
• Temperature Measurement Range -40°C to 537°C:
• Resolution: 0.1 °C
• Accuracy ±(% of Rdg+Counts): ±(1% + 10 counts)
• Temperature Measurement Range -40°F to 998°F:
• Resolution: 0.1 °F
• Accuracy ±(% of Rdg+Counts): ±(1% + 18 counts)
• Insulation Specifications:
• Measurement range: 0.01 MΩ to 2 GΩ
• Test voltages: 50, 100, 250, 500, 1000 V
• Test voltage accuracy: +20%, -0%
• Short-circuit test current: 1 mA nominal
• Auto discharge: Discharge time <0.5 second for C = 1 μF or less
• Live circuit detection: Inhibit test if terminal voltage > 30 V prior to initialization of test
• Maximum capacitive load: Operable with up to 1 μF load
• Output Voltage 50 V (0% to +20%):
• Display range: 0.01 to 6.00 MΩ
• Resolution: 0.01 MΩ
• Test current: 1 mA @ 50 kΩ
• Resistance accuracy ±(% of Rdg + Counts): ±(3% + 5 counts)
• Display range: 6.0 to 50.0 MΩ
• Resolution: 0.1 MΩ
• Test current: 1 mA @ 50 kΩ
• Resistance accuracy ±(% of Rdg + Counts): ±(3% + 5 counts)
• Output Voltage 100 V (0% to +20%):
• Display range: 0.01 to 6.00 MΩ
• Resolution: 0.01 MΩ
• Test current: 1 mA @ 100 kΩ
• Resistance accuracy ±(% of Rdg + Counts): ±(3% + 5 counts)
• Display range: 6.0 to 60.0 MΩ
• Resolution: 0.1 MΩ
• Test current: 1 mA @ 100 kΩ
• Resistance accuracy ±(% of Rdg + Counts): ±(3% + 5 counts)
• Display range: 60 to 100 MΩ
• Resolution: 1 MΩ
• Test current: 1 mA @ 100 kΩ
• Resistance accuracy ±(% of Rdg + Counts): ±(3% + 5 counts)
• Output Voltage 250 V (0% to +20%):
• Display range: 0.1 to 60.0 MΩ
• Resolution: 0.1 MΩ
• Test current: 1 mA @ 250 kΩ
• Resistance accuracy ±(% of Rdg + Counts): ±(1.5% + 5 counts)
• Display range 60 to 250 MΩ
• Resolution 1 MΩ
• Test current 1 mA @ 250 kΩ
• Resistance accuracy ±(% of Rdg + Counts): ±(1.5% + 5 counts)
• Output Voltage 500 V (0% to +20%):
• Display range:0.1 to 60.0 MΩ
• Resolution: 0.1 MΩ
• Test current: 1 mA @ 500 kΩ
• Resistance accuracy ±(% of Rdg + Counts): ±(1.5% + 5 counts)
• Display range: 60 to 500 MΩ
• Resolution: 1 MΩ
• Test current: 1 mA @ 500 kΩ
• Resistance accuracy ±(% of Rdg + Counts): ±(1.5% + 5 counts)
• Output Voltage 1000 V (0% to +20%):
• Display range:0.1 to 60.0 MΩ
• Resolution: 0.1 MΩ
• Test current: 1 mA @ 1 MΩ
• Resistance accuracy ±(% of Rdg + Counts): ±(1.5% + 5 counts)
• Display range: 60 to 600 MΩ
• Resolution: 1 MΩ
• Test current: 1 mA @ 1 MΩ
• Resistance accuracy ±(% of Rdg + Counts): ±(1.5% + 5 counts)
• Display range: 0.6 to 2.0 GΩ
• Resolution: 100 MΩ
• Test current: 1 mA @ 1 MΩ
• Resistance accuracy ±(% of Rdg + Counts): ±(10% + 3 counts)
• Maximum voltage applied to any terminal and common: 1000 V
• Storage temperature: -40 °C to 60 °C (-40 °F to 140 °F)
• Operating temperature: -20 °C to 55 °C (-4 °F to 131 °F)
• Temperature coefficient: 0.05 x (specified accuracy) per °C for temperatures <18 °C or >28 °C (<64 °F or >82 °F)
• Relative humidity:
• Noncondensing
• 0% to 95% @ 10 °C to 30 °C (50 °F to 86 °F)
• 0% to 75% @ 30 °C to 40 °C (86 °F to 104 °F)
• 0% to 40% @ 40 °C to 55 °C (104 °F to 131 °F)
• Vibration: Random, 2 g, 5-500 Hz per MIL-PRF-28800F, Class 2 instrument
• Radio frequency communication: 2.4 GHz ISM Band
• Radio frequency certification: FCC: T68-FBLE, IC: 6627A-FBLE
• IEC 61010-1: Pollution Degree 2
• IEC 61010-2-033: CAT IV 600 V / CAT III 1000 V
• Batteries: 4 x AA batteries (NEDA 15A or IEC LR6)
• Battery life: Meter use 1000 hours; Insulation test use: Meter can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty cycle of 5 seconds on and 25 seconds off.
• Operating Altitude: 2000 m
• Storage Altitude: 12,000 m
• Over-range capability: 110% of range except for capacitance which is 100%
• Frequency overload protection: <107 V Hz
• Fuse protection for mA input: 0.44A, 1000 V, IR 10 kA
• Dimensions (L x W x H): 203mm x 100mm x 50mm
• Weight 0.55kg

Warranty:

• Three Years Warranty Covered By Fluke

Fluke i400 AC Current Clamp

Specifications:

• Nominal current range:400 A
• Continuous current range: 1 A - 400 A
• Maximum non-destructive current: 1000 A
• Lowest measurable current: 1 A
• Basic accuracy:
• 2% + 0.06 A
• (45-400 Hz)
• (% reading + floorspec)
• Useable frequency: 5 Hz - 20 kHz
• Output level(s): 1 mA/A
• Safety: CAT IV 600 V, CAT III, 1000 V
• Maximum voltage: 1000 V AC rms from earth to ground, in compliance with EN61010
• Maximum conductor diameter: 32 mm (1.25 in)
• Maximum conductor size (busbar): 750 MCM
• Output cable length: 1.5 m (59 in)
• Shrouded banana plugs: Yes

Warranty:

• 12 Months Limited Warranty Covered By Fluke

Fluke 9040 Phase Rotation Indicator

Specifications:

• Voltage range: 40-700 V
• Frequency range: 15-400 Hz
• Operating timer: Continuous
• Operating temperature: 0 °C to 40 °C
• Dust/water resistance: IP 40
• Electrical safety: EN 61010, EN 61557-7
• Overvoltage category:
• CAT III, 600 V
• CAT IV, 300V
• Power supply: From unit under test
• Dimensions (L x W x H): 124mm x 61mm x 27mm
• Weight 0.20kg

Warranty:

• Two Years Warranty Covered By Fluke
