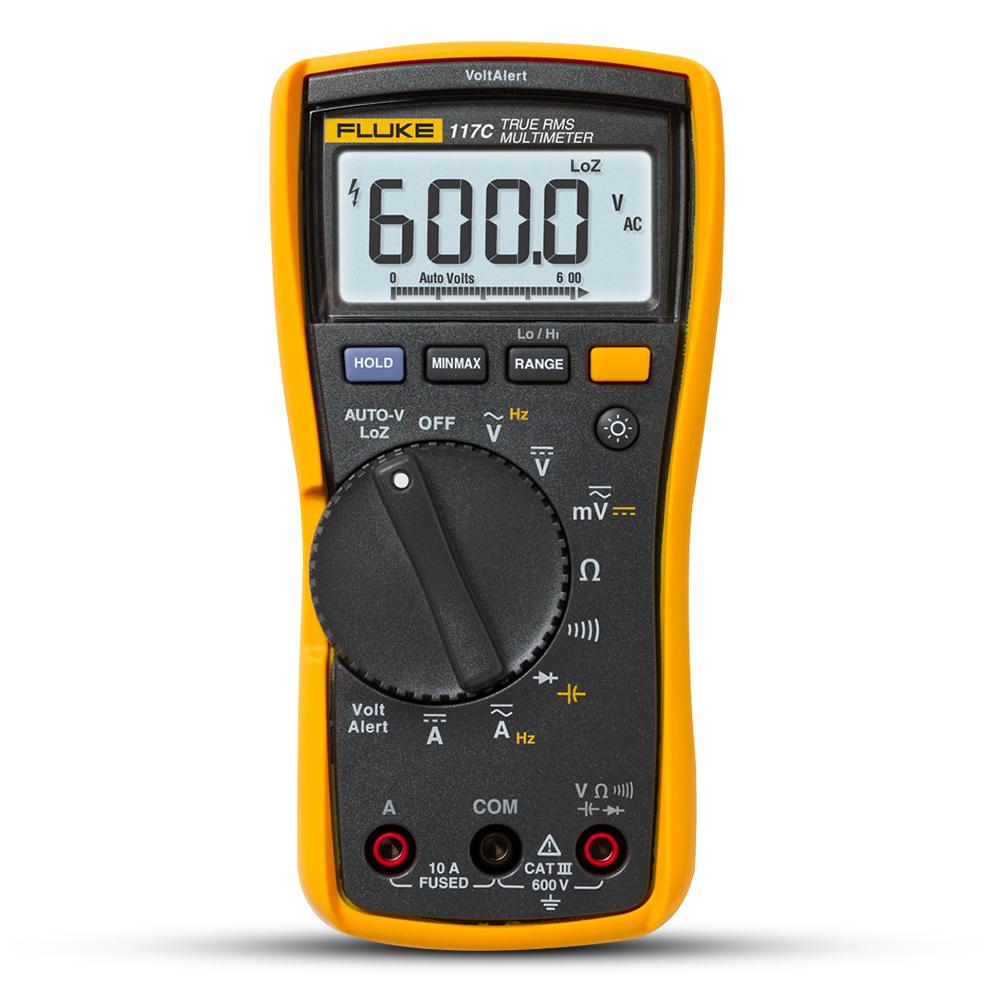

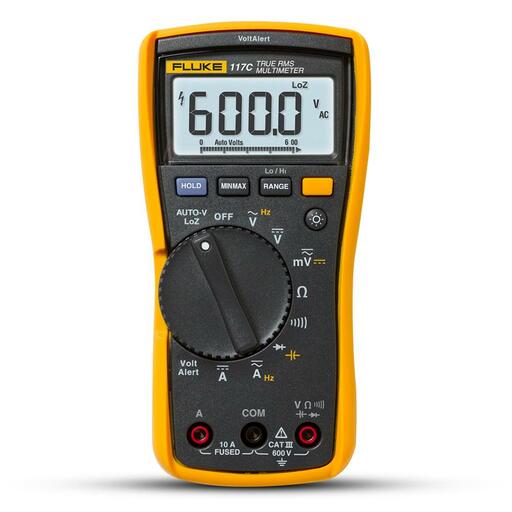

Fluke FLUKE-117/APAC (5294292) 600V Electricians Multimeter with Non-Contact Voltage

Fluke FLUKE-117/APAC (5294292) 600V Electricians Multimeter with Non-Contact Voltage

Designed by electricians and engineered by Fluke, the Fluke 117 is a compact True-RMS meter for demanding applications like commercial buildings, hospitals, and schools. With its integrated non-contact voltage detection, Auto Volts and LoZ functions that help prevent false readings caused by ghost voltage, the Fluke 117 is a great choice for electricians. In fact, users around the world have said their 117 is an investment in accuracy. The Fluke 117 provides Min/Max/Average readings and measures frequency and capacitance. Plus, its easy-to-use interface can save you time and enable you to move from job to job more quickly.

Features:

• VoltAlert built in non contact voltage detector. The sensing circuit is located on the top of the meter above the LCD display
• Measures 10 A (20 A overload for 30-seconds)
• Measures resistance, continuity, frequency, and capacitance
• Provides Min/Max/Average to record signal fluctuations
• Features compact ergonomic design for one-handed operation
• Fits into optional ToolPak magnetic hanger for hands-free operation
• CAT III 600 V safety rated
• A large white LED backlight to improve measurement visibility in poorly lit areas
• VoltAlert technology for fast, go/no go non-contact voltage detection
• AutoVolt and low input impedance modes to provide faster, more accurate readings

Specifications:

• Max Voltage: 600V
• Safety:
  • IEC 61010–1: Pollution Degree 2
  • IEC 61010-2-033: CAT III 600V
• Display Digital: 6,000 counts, updates 4 per second
• Bar graph: 33 segments, updates 32 per second
• Operating temperature: -10°C to + 50°C
• Storage temperature: -40°C to + 60°C
• Battery type: 9 volt Alkaline, IEC 6LR61
• Battery life: 400 hours typical, without backlight
• DC millivolts:
  • Range/resolution: 600.0 mV / 0.1 mV
  • Accuracy: ± ([% of reading] + [counts]): 0.5% + 2
• DC volts:
  • Range/resolution: 6.000 V / 0.001 V, 60.00 V / 0.01 V, 600.00 V / 0.1 V
  • Accuracy: ± ([% of reading] + [counts]): 0.5% + 2
• Auto volts:
  • Range/resolution: 600.0 V / 0.1 V
  • Accuracy: 2.0% + 3 (DC, 45 Hz to 500 Hz), 4.0% + 3 (500 Hz to 1 kHz)
• AC millivolts1 True RMS:
  • Range/resolution: 600.0 mV / 0.1 mV
  • Accuracy: 1.0% + 3 (DC, 45 Hz to 500 Hz), 2.0% + 3 (500 Hz to 1 kHz)
• AC volts1 True RMS:
  • Range/resolution: 6.000 V / 0.001 V, 60.00 V / 0.01 V, 600.0 V / 0.1 V
  • Accuracy: 1.0% + 3 (DC, 45 Hz to 500 Hz), 2.0% + 3 (500 Hz to 1 kHz)
• Continuity:
  • Range/resolution: 600 Ω / 1 Ω
  • Accuracy: Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of 500 μs or longer.
• Ohms:
  • Range/resolution: 600.0 Ω / 0.1 Ω, 6.000 kΩ / 0.001 kΩ, 60.00 kΩ / 0.01 kΩ, 600.0 kΩ / 0.1 kΩ, 6.000 MΩ / 0.001 MΩ
  • Accuracy: 0.9% + 1
  • Range/resolution: 40.00 MΩ / 0.01 MΩ
  • Accuracy: 5% + 2
• Diode test:
  • Range/resolution: 2.00 V / 0.001 V
  • Accuracy: 0.9% + 2
• Capacitance:
  • Range/resolution: 1000 nF / 1 nF, 10.00 μF / 0.01 μF, 100.0 μF / 0.1 μF, 9999 μF / 1 μF, 100 μF to 1000 μF
  • Accuracy: 1.9% + 2
  • Range/resolution: > 1000 μF
  • Accuracy: 5% + 20%
• Lo-Z capacitance:
  • Range: 1 nF to 500 μF
  • Accuracy: 10% + 2 typical
• AC Amps True RMA(45Hz to 500Hz):
  • Range/Resolution: 6.000 A / 0.001 A, 10.00 A / 0.01 A
  • Accuracy: 1.5% +3 (20 A Continuous overload for 30 seconds Max)
• DC Amps:
  • Range/Resolution: 6.000 A / 0.001 A, 10.00 A / 0.01 A
  • Accuracy: 1.0% +3 (20 A Continuous overload for 30 seconds Max)
• Hz )V or A Input)^2:
  • Range/Resolution: 99.99 Hz / 0.01 Hz, 999.9 Hz / 0.1 Hz, 9.999 kHz / 0.001 Hz, 50 kHz / 0.01 Hz
  • Accuracy: 0.1% + 2
• Dimensions (L x W x H): 167mm x 84mm x 46mm
• Weight: 0.55kg
