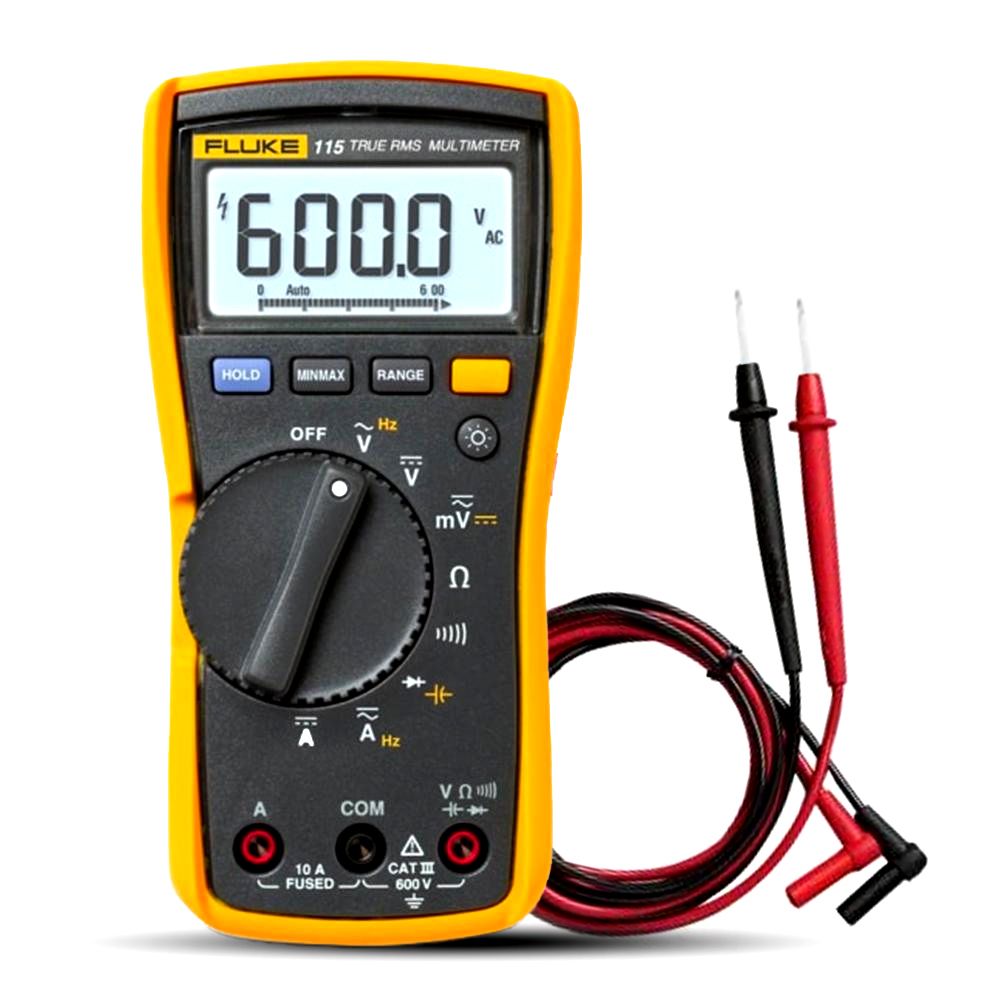

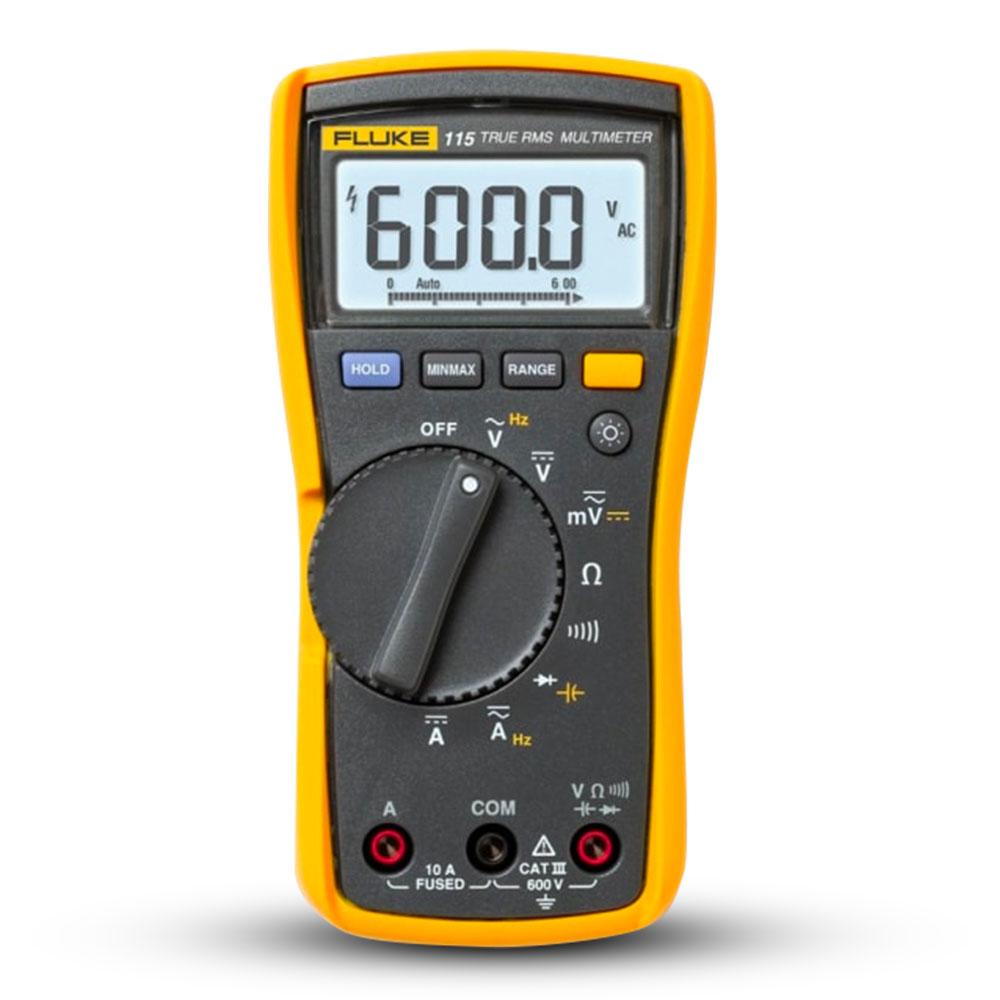

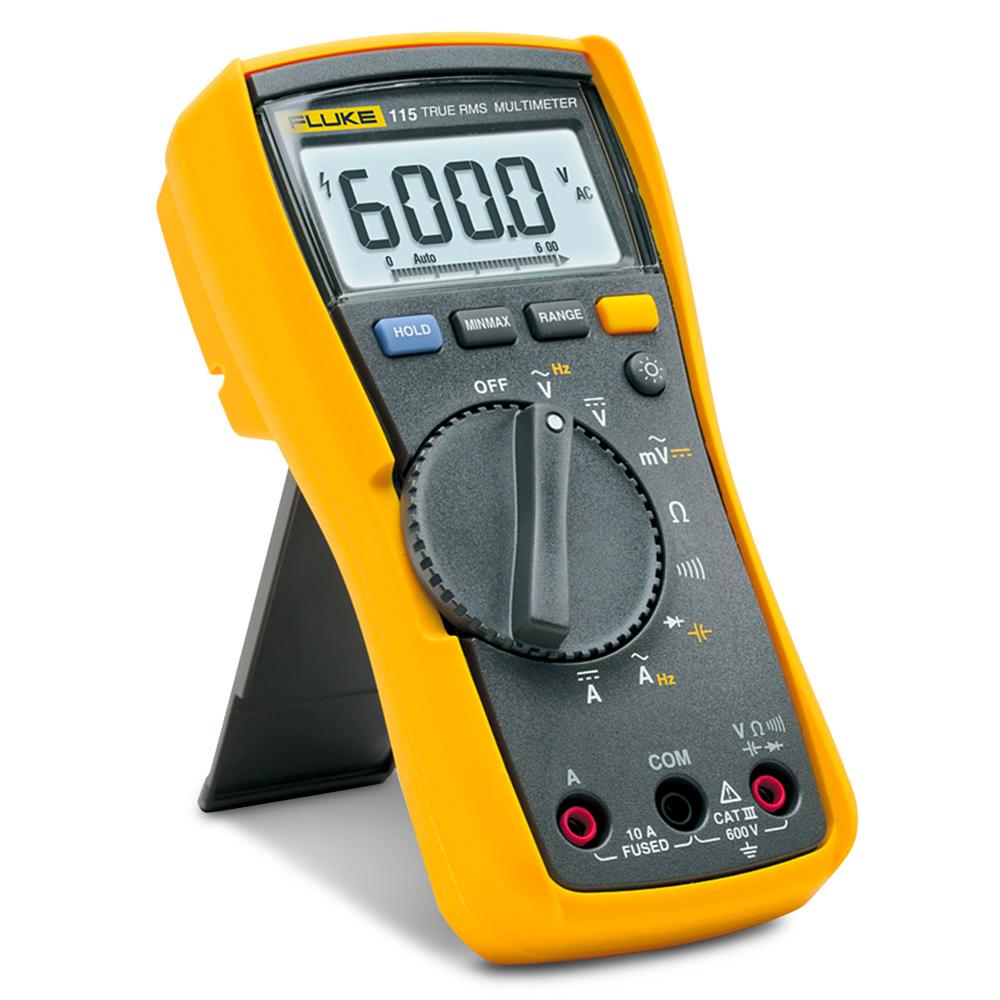

Fluke FLUKE-115/APAC (5294289) Electrician True-RMS Digital Multimeter

Fluke FLUKE-115/APAC (5294289) Electrician True-RMS Digital Multimeter

For general purpose electrical and electronic test requirements, the Fluke 115 True RMS digital multimeter provides the perfect answer. Its simple, one-handed operation and compact design meets the needs of a wide variety of field service technicians. It measures True RMS voltage and current with 6000 count resolution as well as resistance, continuity, frequency and capacitance for quick verifications.

Fluke 115 Digital Multimeters are independently tested for safe use in CAT III 600V environments.

Includes:

• 1 x Installed 9V battery
• 1 x 4 mm PVC-Insulated test lead
• 1 x User manual

Features:

• Measures resistance, continuity, frequency, and capacitance
• Provides Min/Max/Average with elapsed time to record signal fluctuations
• Comes with a holster with probe holders for easy storage
• Features a compact ergonomic design for one-handed operation
• Fits into optional ToolPack magnetic hanger for hands-free operation
• CAT III 600 V safety rated

Specifications:

• Max Voltage: 600V
• Surge protection: 6 kV peak per IEC 61010–1 600 VCAT III, Pollution Degree 2
• DisplayDigital: 6,000 counts, updates 4 per second
• Bar graph: 33 segments, updates 32 per second
• Operating temperature: -10°C to + 50°C
• Storage temperature: -40°C to + 60°C
• Battery type: 9 volt Alkaline, NEDA 1604A / IEC 6LR61
• Battery life: 400 hours typical, without backlight
• DC millivolts:
• Range/resolution: 600.0 mV / 0.1 mV
• Accuracy: ± ([% of reading] + [counts]): 0.5% + 2
• DC volts:
• Range/resolution: 6.000 V / 0.001, V 60.00 V / 0.01, V 600.00 V / 0.1 V
• Accuracy: ± ([% of reading] + [counts]): 0.5% + 2
• Auto volts:
• Range/resolution: 600.0 V / 0.1 V
• Accuracy: 2.0% + 3 (DC, 45 Hz to 500 Hz), 4.0% + 3 (500 Hz to 1 kHz)
• AC millivolts1 True RMS:
• Range/resolution: 600.0 mV / 0.1 mV
• Accuracy: 1.0% + 3 (DC, 45 Hz to 500 Hz), 2.0% + 3 (500 Hz to 1 kHz)
• AC volts1 True RMS:
• Range/resolution: 6.000 V / 0.001, V60.00 V / 0.01, V600.0 V / 0.1 V
• Accuracy: 1.0% + 3 (DC, 45 Hz to 500 Hz), 2.0% + 3 (500 Hz to 1 kHz)
• Continuity:
• Range/resolution: 600 Ω / 1 Ω
• Accuracy: Beeper on < 20 Ω, off > 250 Ω detects opens or shorts of 500 μs or longer.
• Ohms:
• Range/resolution: 600.0 Ω / 0.1 Ω, 6.000 kΩ / 0.001 kΩ, 60.00 kΩ / 0.01 kΩ, 600.0 kΩ / 0.1 kΩ, 6.000 MΩ / 0.001 MΩ
• Accuracy: 0.9% + 1
• Range/resolution: 40.00 MΩ / 0.01 MΩ
• Accuracy: 5% + 2
• Diode test:
• Range/resolution: 2.00 V / 0.001 V
• Accuracy: 0.9% + 2
• Capacitance:
• Range/resolution: 1000 nF / 1 nF, 10.00 μF / 0.01 μF, 100.0 μF / 0.1 μF, 9999 μF / 1 μF, 100 μF to 1000 μF
• Accuracy: 1.9% + 2
• Range/resolution: > 1000 μF
• Accuracy: 5% + 20%
• Lo-Z capacitance:
• Range: 1 nF to 500 μF
• Accuracy: 10% + 2 typical
• AC amps True RMS (45 Hz to 500Hz):
• Range/resolution:
• 6.000 A / 0.001 A
• 10.00 A / 0.01 A
• Accuracy: 1.5% + 3
• 20 A overload for 30-seconds max
• DC amps:
• Range/resolution: 6.000 A / 0.001 A
• 10.00 A / 0.01 A
• Accuracy1.0% + 3
• 20 A overload for 30-seconds max
• Hz (V or A input)2
• Range/resolution: 99.99 Hz / 0.01 Hz, 999.9 Hz / 0.01 Hz, 9.999 kHz / 0.001 kHz, 50 kHz / 0.01 kHzAccuracy0.1% + 2
• Dimensions (W x D x H): 167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
• Weight: 0.55kg
