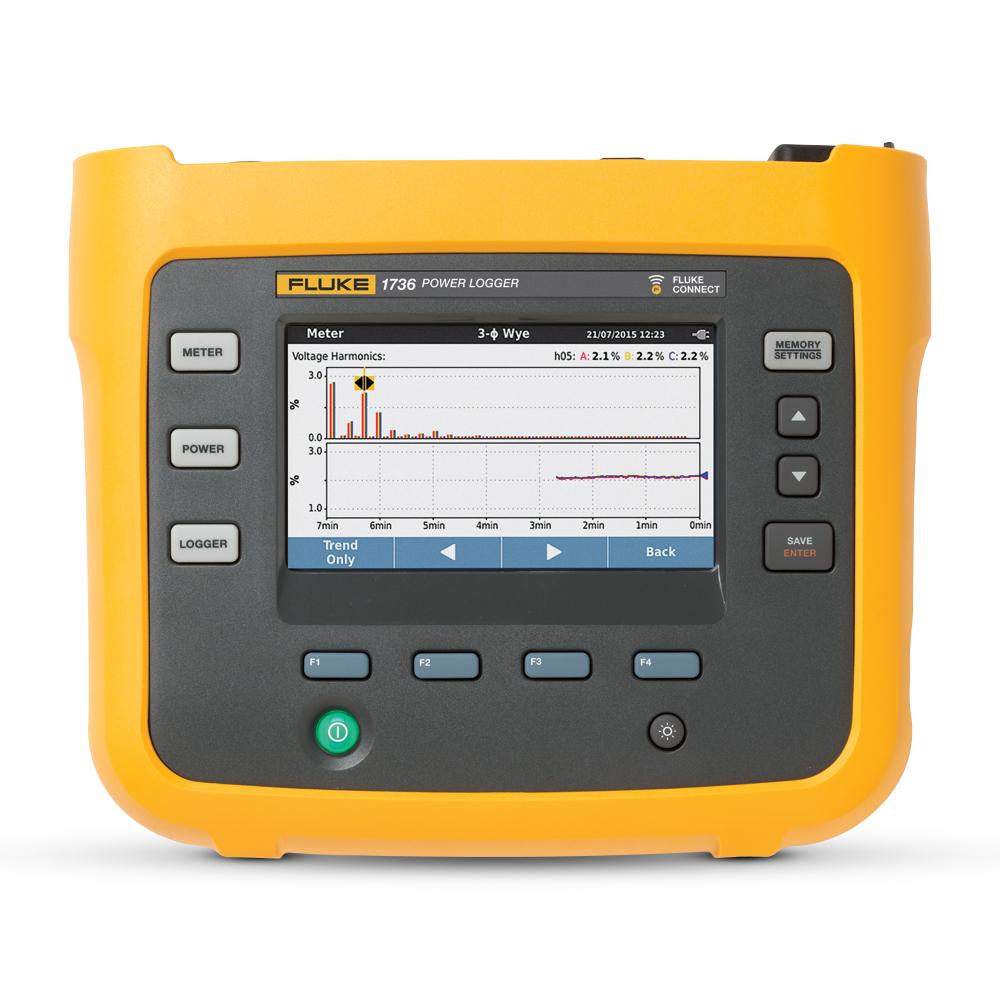

Fluke FLUKE 1736/EUS (4534519) Three-Phase Power Quality Loggers

Fluke FLUKE 1736/EUS (4534519) Three-Phase Power Quality Loggers



Features:

• Key measurements: Automatically capture and log voltage, current, power, harmonics and associated power quality values, and capture dips, swells, and inrush currents with event waveform snapshots and high-resolution RMS profiles
• Convenient instrument powering: Power instrument directly from the measured circuit
• Energy Analyze Plus application software: Download and analyze every detail of energy consumption and power quality state of health with our automated reporting and use the integrated power quality health summary to get an at-a-glance understanding of system health

Specifications:

• Harmonics: IEC 61000-4-7: Class 1 IEEE 519 (short time harmonics)
• Power quality: IEC 61000-4-30 Class S, IEC62586-1 (PQI-S device)
• Power: IEEE 1459
• Power quality compliance: EN50160 (for measured parameters)
• USB-A: File transfer via USB flash drive, firmware updates, max. supply current: 120 mA
• WiFi: File transfer and remote control via direct connection or WiFi infrastructure
• Bluetooth: Read auxiliary measurement data from Fluke Connect® 3000 series modules (requires 1738, or 1736 upgrade option)
• USB-mini: Data download device to PC
• Voltage inputs:
  • Number of inputs: 4 (3 phases and neutral)
  • Maximum input voltage: 1000 Vrms, CF 1.7
  • Input impedance: 10 MΩ
  • Bandwidth: 42.5 Hz - 3.5 kHz
  • Scaling: 1:1 and variable
  • Measurement category: 1000 V CAT III/600 V CAT IV
• Current inputs:
• Number of inputs: 4, mode selected automatically for attached sensor
• Input voltage: Clamp input: 500 mVrms/50 mVrms; CF 2.8
• Rogowski coil input: 150 mVrms/15 mVrms at 50 Hz, 180 mVrms/18 mVrms at 60 Hz; CF 4; all at nominal probe range
• Range:
  • 1 A to 150 A/10 A to 1500 A with thin flexible current probe i17XX-flex1500 12”
  • 3 A to 300 A/30 A to 3000 A with thin flexible current probe i17XX-flex3000 24”
  • 6 A to 600 A/60 A to 6000 A with thin flexible current probe i17XX-flex6000 36”
  • 40 mA to 4 A/0.4 A to 40 A with 40 A clamp i40s-EL
• Bandwidth: 42.5 Hz - 3.5 kHz
• Auxiliary inputs:
  • Number of inputs: 2
  • Input range: 0 to ± 10 V dc, 1 reading/s
  • Scale factor Format: mx + b (gain and offset) user configurable
  • Displayed units: User configurable (7 characters, for example, °C, psi, or m/s)
• Wireless connection:
  • Number of inputs: 2
  • Supported modules: Fluke Connect® 3000 series
  • Acquisition: 1 reading/s
• Operating temperature: -10 °C to +50 °C (14 °F to 122 °F)
• Storage temperature: -20 °C to +60 °C (−4 °F to 140 °F), with battery: -20 °C to +50 °C (−4 °F to 122 °F)
• Operating humidity:
  • 10 °C to 30 °C (50 °F to 86 °F) max. 95 % RH
  • 30 °C to 40 °C (86 °F to 104 °F) max. 75 % RH
  • 40 °C to 50 °C (104 °F to 122 °F) max. 45 % RH
• Operating altitude: 2000 m (up to 4000 m derate to 1000 V CAT II/600 V CAT III/300 V CAT IV)
• Storage altitude: 12,000m
• Enclosure:  IP50 in accordance with EN60529
• Vibration: MIL-T-28800E, Type 3, Class III, Style B
• Safety:
  • IEC 61010-1 IEC Mains Input: Overvoltage Category II, Pollution Degree 2 Voltage Terminals: Overvoltage Category IV, Pollution Degree 2
  • IEC 61010-2-031: CAT IV 600 V / CAT III 1000 V
• Electromagnetic compatibility (EMC):
• EN 61326-1: Industrial CISPR 11: Group 1, Class A
• Korea (KCC): Class A Equipment (industrial broadcasting and communication equipment)
• USA (FCC): 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103
• Temperature coefficient 0.1 x accuracy specification/°C
• Color LCD display: 4.3-inch active matrix TFT, 480 pixels x 272 pixels, resistive touch panel
• Dimensions Instrument: 198mm x 167mm x 55mm
• Weight: 1.1 kg

Warranty:

• 1 year warranty covered by Fluke
