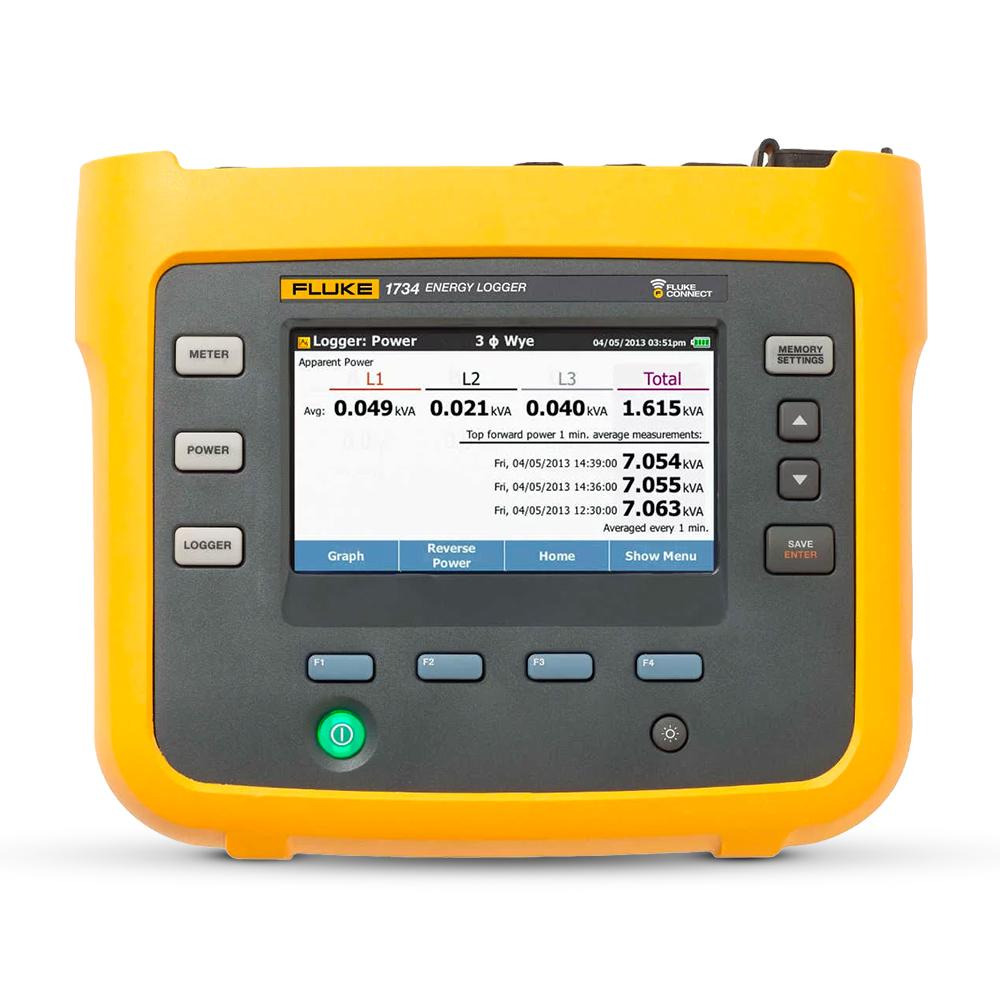

Fluke FLUKE 1734/EUS (4706594) Three-Phase Electrical Energy Loggers, WiFi with current probes

Fluke FLUKE 1734/EUS (4706594) Three-Phase Electrical Energy Loggers, WiFi with current probes

Features:

• Key measurements: voltage, current, power, power factor and associated values enable energy saving strategies to be implemented
• Bright, color touch screen: perform convenient in-the-field analysis and data checks with full graphical display
• Comprehensive logging: all measured values are automatically logged and can be reviewed during logging and before downloading for on the-go analysis. More than 20 separate logging sessions can be stored on the instrument
• Optimized user interface: quick, guided, graphical setup ensures you're capturing the right data every time, and the intelligent verification function indicates correct connections have been made, reducing user uncertainty
• Complete 'in-the-field' setup through the front panel: no need to return to the workshop for download and setup or to take a computer to the electrical panel
• Fluke Connect Enabled: Connect to up to two FC modules for associated analog values and view live data wirelessly for the Fluke 1734
• Wide range power: power instrument directly from the measured circuit eliminating the need to find a power outlet while allowing the instrument to be secured safely inside electrical panels
• Two USB ports: one for PC connection and another for fast, simple download to standard USB thumb drives, or other USB devices.
• Compact size: designed to fit in tight spaces and panels
• Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for use at the service entrance and downstream
• Optimized measurement accessories: flat voltage cable and thin flexible current probes ensure easy installation even in tight spaces
• Battery life: four-hour operating time (backup time) per charge on lithium-ion battery
• Security: safeguard against theft with a Kensington lock

Applications:

• Energy Studies - full range of electrical power and energy parameters
• Load Studies - simple current only logging for load sizing
• General Facilities Staff
• Facilities Engineers
• Building Managers concerned with Energy Costs
• Residential/Commercial Electricians
• Energy Consultants
• Advanced Energy and Load Studies with connected analog data from Fluke connect modules

Specifications:

• Voltage:
  • Range: 1000 V
  • Resolution: 0.1 V
  • Intrinsic Accuracy at Reference Conditions (% of Reading +% of Full Scale): ±(0.2% + 0.01%)
• Currenty Direct input:
• i17xx-flex 1500 12":
  • Range: 150 A - 1500 A
  • Resolution: 0.1 A -
  • Intrinsic Accuracy at Reference Conditions (% of Reading +% of Full Scale): ±(0.2% + 0.01%) - ±(1% + 0.02%)
• i17xx-flex 3000 24":
  • Range: 300 A - 3000 A
  • Resolution: 1 A - 10 A
  • Intrinsic Accuracy at Reference Conditions (% of Reading +% of Full Scale): ±(1% + 0.03%) - ±(1% + 0.03%)
• i17xx-flex 6000 36":
  • Range: 600 A - 6000 A
  • Resolution: 1 A - 10 A
  • Intrinsic Accuracy at Reference Conditions (% of Reading +% of Full Scale): ±(1.5% + 0.03%) - ±(1.5% + 0.03%)
• i40s-EL clamp:
  • Range: 4 A - 40 A
  • Resolution: 1 mA - 10 mA
  • Intrinsic Accuracy at Reference Conditions (% of Reading +% of Full Scale): ±(0.7% + 0.02%) - ±(0.7% + 0.02%)
• Frequency:
  • Range: 42.5 Hz to 69 Hz
  • Resolution: 0.01 Hz
  • Intrinsic Accuracy at Reference Conditions (% of Reading +% of Full Scale): ±(0.1%)
• Auxillary input:
  • Range: ±10 V dc
  • Resolution: 0.1 mV
  • Intrinsic Accuracy at Reference Conditions (% of Reading +% of Full Scale): ±(0.2% + 0.02%)
• Voltage min/max:
  • Range: 1000 V
  • Resolution: 0.1 V
  • Intrinsic Accuracy at Reference Conditions (% of Reading +% of Full Scale): ±(1% + 0.1%)
• THD on voltage:
  • Range: 1000%
  • Resolution: 0.1%
  • Intrinsic Accuracy at Reference Conditions (% of Reading +% of Full Scale): ±0.5
• THD on current:
  • Range: 1000%
  • Resolution: 0.1%
  • Intrinsic Accuracy at Reference Conditions (% of Reading +% of Full Scale): ±0.5
• Voltage range: 100 V to 500 V using safety plug input when powering from the measurement circuit
• Power consumption: Maximum 50 VA (max. 15 VA when powered using IEC 60320 input)
• Efficiency: ≥ 68.2% (in accordance with energy efficiency regulations)
• Maximum no-load consumption: < 0.3 W only when powered using IEC 60320 input
• Mains power frequency: 50/60 Hz ±15%
• Battery: Li-ion 3.7 V, 9.25 Wh, customer-replaceable
• On-battery runtime: Four hours in standard operating mode, up to 5.5 hours in power saving mode
• Resolution: 16-bit synchronous sampling
• Sampling frequency: 10.24 kHz at 50/60 Hz, synchronized to mains frequency
• Input signal frequency: 50/60 Hz (42.5 to 69 Hz)
• Circuit types: 1-φ, 1-φ IT, Split phase, 3-φ delta, 3-φ wye, 3-φ wye IT, 3-φ wye balanced, 3-φ Aron/Blondel (2-element delta), 3-φ delta open leg, Currents only (load studies)
• Data storage: Internal flash memory (not user replaceable)
• Memory size: Typical 10 logging sessions of 8 weeks with 1-minute intervals and 500 events
• Power: IEEE 1459
• Power quality compliance: EN50160 (for measured parameters)
• USB-A: File transfer via USB flash drive, firmware updates, max. supply current: 120 mA
• WiFi: File transfer and remote control via direct connection or WiFi infrastructure
• Bluetooth: Read auxiliary measurement data from Fluke Connect® 3000 series modules (requires 1738, or 1736 upgrade option)
• USB-mini: Data download device to PC
• Voltage inputs:
  • Number of inputs: 4 (3 phases and neutral)
  • Maximum input voltage: 1000 Vrms, CF 1.7
  • Input impedance: 10 MΩ
  • Bandwidth: 42.5 Hz - 3.5 kHz
  • Scaling: 1:1 and variable
  • Measurement category: 1000 V CAT III/600 V CAT IV
• Current inputs:
• Number of inputs: 4, mode selected automatically for attached sensor
• Input voltage: Clamp input: 500 mVrms/50 mVrms; CF 2.8
• Rogowski coil input: 150 mVrms/15 mVrms at 50 Hz, 180 mVrms/18 mVrms at 60 Hz; CF 4; all at nominal probe range
• Range:
  • 1 A to 150 A/10 A to 1500 A with thin flexible current probe i17XX-flex1500 12”
  • 3 A to 300 A/30 A to 3000 A with thin flexible current probe i17XX-flex3000 24”
  • 6 A to 600 A/60 A to 6000 A with thin flexible current probe i17XX-flex6000 36”
  • 40 mA to 4 A/0.4 A to 40 A with 40 A clamp i40s-EL
• Bandwidth: 42.5 Hz - 3.5 kHz
• Auxiliary inputs:
  • Number of inputs: 2
  • Input range: 0 to ± 10 V dc, 1 reading/s
  • Scale factor Format: mx + b (gain and offset) user configurable
  • Displayed units: User configurable (7 characters, for example, °C, psi, or m/s)
• Wireless connection:
  • Number of inputs: 2
  • Supported modules: Fluke Connect® 3000 series
  • Acquisition: 1 reading/s
• Operating temperature: -10 °C to +50 °C (14 °F to 122 °F)
• Storage temperature: -20 °C to +60 °C (−4 °F to 140 °F), with battery: -20 °C to +50 °C (−4 °F to 122 °F)
• Operating humidity:
  • 10 °C to 30 °C (50 °F to 86 °F) max. 95 % RH
  • 30 °C to 40 °C (86 °F to 104 °F) max. 75 % RH
  • 40 °C to 50 °C (104 °F to 122 °F) max. 45 % RH
• Operating altitude: 2000 m (up to 4000 m derate to 1000 V CAT II/600 V CAT III/300 V CAT IV)
• Storage altitude: 12,000m
• Enclosure:  IP50 in accordance with EN60529
• Vibration: MIL-T-28800E, Type 3, Class III, Style B
• Safety:
  • IEC 61010-1 IEC Mains Input: Overvoltage Category II, Pollution Degree 2 Voltage Terminals: Overvoltage Category IV, Pollution Degree 2
  • IEC 61010-2-031: CAT IV 600 V / CAT III 1000 V
• Dimensions Instrument: 198mm x 167mm x 55mm
  • Weight: 1.1 kg

Warranty:

• 1 year warranty covered by Fluke
