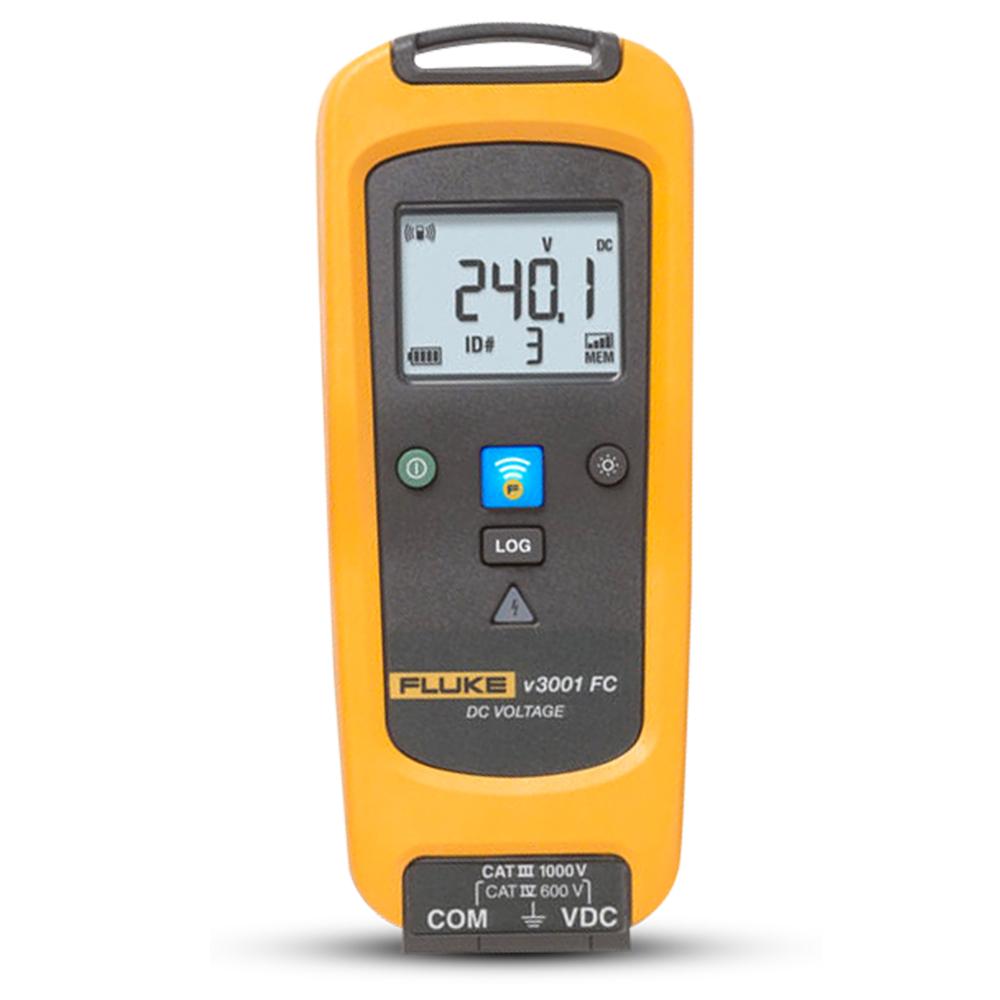

Fluke FLK-V3001 FC (4459421) v3001 FC Wireless DC Voltage Module

Fluke FLK-V3001 FC (4459421) v3001 FC Wireless DC Voltage Module

All the facts, right in the field. The Fluke v3001 FC Wireless DC Voltage Module is one member of a family of wireless test tools that let you share test data using the Fluke Connect® app with ShareLive™ video call. Fluke Connect Wireless Test Tools put tools, not your body, near live electrical panels. It's simple. Connect the v3001 FC wireless DC voltage module, or any of the other Fluke Connect remote modules, and read the results on the Fluke Connect Wireless Multimeter or a portable PC from a safe distance.

Features:

• Measure up to 1000 VDC
• Use as a standalone meter or as part of the system
• Use the logging function for recording and saving up to 65,000 readings

Specifications:

• mVDC Range / Resolution: 600.0 mV / 0.1 mV
• mVDC Accuracy: 0.09% + 3
• VDC Range / Resolution:
• 6.000 V / 0.001 V
• 60.00 V / 0.01 V
• 600.0 V / 0.1 V
• VDC Accuracy: 0.09% + 3
• VDC Range / Resolution: 1000 V / 1 V
• VDC Accuracy: 0.15% + 2
• LCD w/backlight: 3 ½ digits, 6000 counts, 4/sec update rate
• Battery type: 2 x AA Alkaline batteries, NEDA 15A, IEC LR6
• Log rate/interval: Adjustable by PC from 1 sec to 1 hr, default 1 min
• Battery life: 400 hours minimum
• Memory: Record up to 65,000 readings
• RF communications: 2.4 GHz ISM Band
• RF communication range:
• Open air, unobstructed: Up to 20 m
• Obstructed, sheetrock wall: Up to 6.5 m
• Obstructed, concrete wall or steel electrical enclosure: Up to 3.5 m
• Operating temperature: -10°C to +50°C
• Storage temperature: -40°C to +60°C
• Temperature coefficient: 0.1 x (specified accuracy)/ °C (< 18°C or > 28°C)
• Relative humidity:
• 0% to 90% (0°C to 35°C)
• 0% to 75% (35°C to 40°C)
• 0% to 45% (40°C to 50°C)
• EMC: IEC 61236-1, Portable
• Safety compliance: IEC 61010-1, 600 V CAT IV / 1000 V CAT III, 3rd edition, Pollution Degree 2
• Certifications: CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE
• Ingress Protection (IP) rating: IP42
• Dimensions (L x W x H): 38mm x 66mm x 160mm
• Weight 0.255kg

Warranty:

• 3 Years Warranty Covered By Fluke
