Fluke FLK-SMFT-1000/PRO (5416417) Solar Tools Pro Kit: Fluke Multifunction PV Tester, I-V Curve Tracer with TruTest™ Software and MC4 Leads

Fluke FLK-SMFT-1000/PRO (5416417) Solar Tools Pro Kit: Fluke Multifunction PV Tester, I-V Curve Tracer with TruTest™ Software and MC4 Leads

Introducing the NEW Fluke SMFT-1000 Solar Mutifunction PV Tester, Performance Analyser and I-V Curve Tracer. This tool presents a complete, all-in-one testing solution to verify photovoltaic (PV) system performance and safety, while also expediting client reporting with Fluke’s new and intuitive TruTest™ software. The Fluke SMFT-1000 is designed for PV professionals who provide installation, commissioning, and maintenance services on solar systems that operate up to 1000 V DC and provides a complete PV testing solution that conforms to IEC 62446-1. Combine the SMFT-1000 with the included TruTest™ software to seamlessly store, organise, and analyse captured data to easily generate professional and visual client reports. The Fluke SMFT-1000 is the single most important Fluke tool in a PV professional’s toolbag.

The Fluke SMFT-1000 performs a series of critical tests for the periodic inspection of PV systems, including:

• Full sequence safety testing – IEC 62446-1 Category 1:
  • Protective resistance earth (RLO mode/RPE)
  • Voltage on open circuit, including polarity (VOC)
  • Short circuit current (ISC)
  • Insulation resistance (RINS)
• ROI and system performance testing – IEC 62446-1 Category 2:
  • I-V Curve tracing and software analysis with TruTest™ software
  • Irradiance, temperature, tilt, and cardinal direction

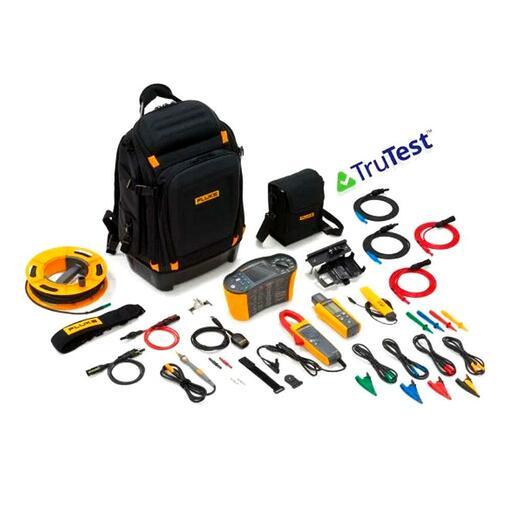

Includes:

• Fluke SMFT-1000-BP Professional Tool Backpack
• Fluke SMFT-1000 Multifunction PV Analyser (including carry strap, fuse pack, adapter cable IRDA optical-to-USB, and zero adapter)
• Advanced TruTest™ software
• MC4 Solar Clamp Test Lead Set
• Fluke IRR2-BT Wireless Solar Irradiance Meter Pro (including Fluke 80PR-IRR External Temperature Probe, mounting bracket for solar panel, and carry case)
• Fluke i100 AC/DC Current Clamp 100 A (including a Fluke TPAK Magnet Magnetic Meter Hanger)
• Fluke TP1000 Test Probe with Remote Test Button
• Fluke TL1000 Test Lead Set
• Fluke TL1000-MC4 Test Lead Set
• Fluke TL1000/30M Test Lead on Reel, coupler set, and (6) AA Batteries

Features:

• Wireless irradiance meter – no leads required: To perform precise I-V curve measurements, real-time irradiance and temperature data is needed. The included Fluke IRR2-BT Irradiance Meter wirelessly connects to the SMFT-1000 to communicate data in real-time, providing the most accurate I-V curve measurements possible.
• Setup only once with “Keep the Leads” Using Fluke’s patented “Keep the Leads” system, users can quickly and easily setup for testing by following simple on-screen guided test setup instructions. Users can then enter Auto Test Mode to perform automatic sequences of tests in various combinations – all without needing to adjust the leads once they have been setup. This system minimises setup time, reduces user errors, and allows users to confidently get more done in less time.
• Integrated on-screen experience for I-V curve: While taking an I-V curve reading in the field, the Fluke SMFT-1000 will display the curve as it loads in the test data and compares it against the module specifications defined by the manufacturer. This makes it easy to immediately confirm measurements in the field without the use of a laptop or tablet
• Visual inspections made easy: To meet the PV system IEC regulations for visual inspections, the Fluke SMFT-1000 features a convenient setting that allows users to record observations directly into the device’s local memory. Users can then download this data into the TruTest™ software and seamlessly incorporate it into their project reports.
• Spend less time processing test results and compiling reports with TruTest™
  Fluke TruTest™ software allows users to quickly and easily import measurement results
  directly from their Fluke SMFT-1000 to their PC, intuitively organise and analyse captured
  data, and compare individual asset data against previously imported measurements to provide comprehensive and visual client reports.

Specifications:

• Battery: 6 AA IEC LR6
• Operating Temperature: 0 °C to 50 °C
• Storage Temperature: -30 °C to 60 °C (batteries removed)
• Operating altitude: up to 2000 m
• Storage altitude: up to 2000 m
• Dimensions: 100mm x 250mm x 125mm
• Weight: 1.4kg

Warranty:

• 3 Year Standard Warranty Covered by Fluke
