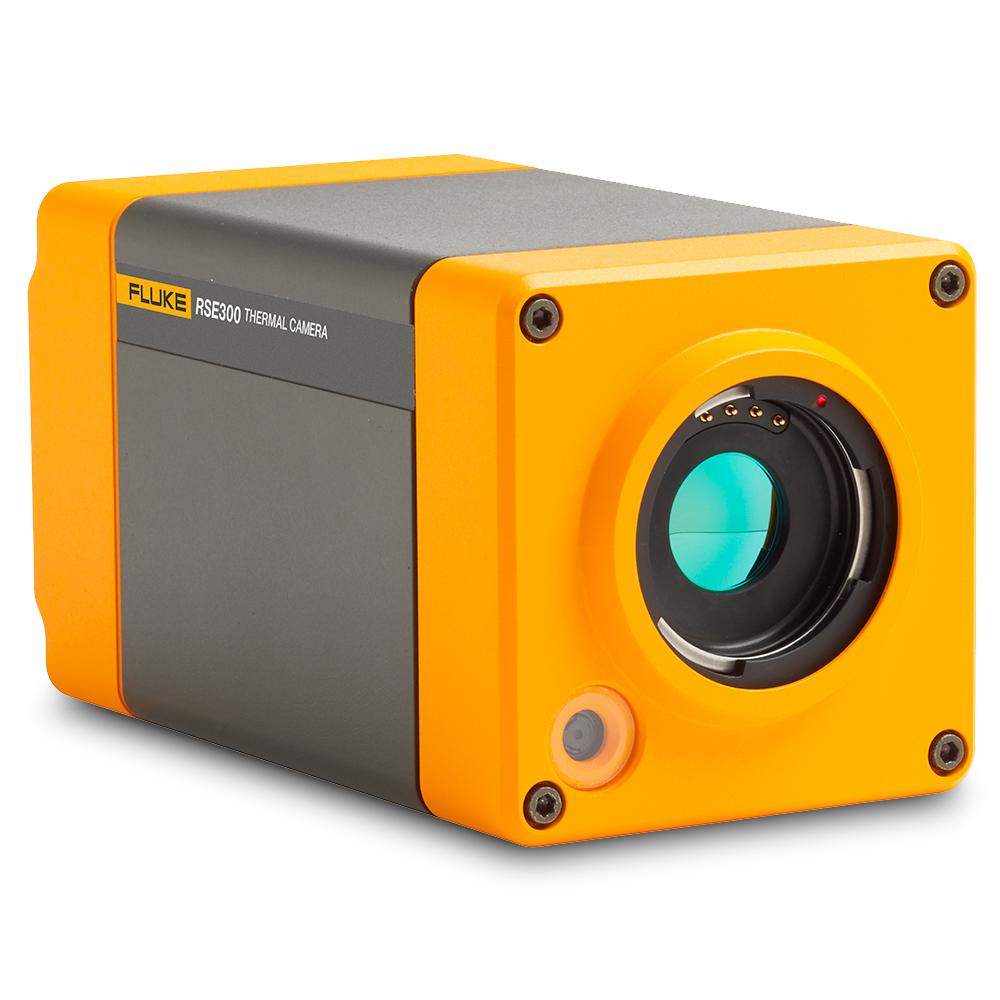

Fluke FLK-RSE300 60HZ (4944776) Mounted Infrared Camera

Fluke FLK-RSE300 60HZ (4944776) Mounted Infrared Camera

Features:

• MATLAB and LabVIEWsoftware compatibility allows users to integrate infrared data, images and videos to support R&D analysis
• 320 x 240 resolution
• See the details you need with optional smart lenses: 2x and 4x telephoto, wide angle and macro lenses
• Optimize images, generate customizable reports and export images to the format of your choice with SmartView desktop software
• Wirelessly connect your camera to the Fluke Connect® system to easily share and edit images

Specifications:

• IFOV with standard lens (spatial resolution): 1.85 mRad
• Detector resolution: 320 x 240 (76,800 pixels)
• Field of view: 24 °H x 18 °V
• Minimum focus distance: 15 cm (approx. 6 in)
• Camera focus options: Focus is adjusted in SmartView® desktop software
• Wireless connectivity: Yes, to PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available)
• IR-Fusion® technology: Yes, in SmartView® desktop software. Five modes of image blending (AutoBlend™ mode, Picture-in-Picture (PIP), IR/Visible alarm, Full IR, Full visible light) add the context of the visible details to your infrared image
• Thermal sensitivity (NETD)
• Filter mode (NETD improvement): Smooth auto and manual scaling, in SmartView® desktop software
• Fast auto toggle between manual and auto modes: Yes, in SmartView® desktop software
• Fast auto-rescale in manual mode: Yes, in SmartView® desktop software
• Minimum span (in manual mode): 0.1 °C (0.18 °F), in SmartView® desktop software
• Minimum span (in auto mode): <1.0 °C (<1.8 °F), in SmartView® desktop software
• Built-in digital camera (visible light): 5 megapixel industrial performance
• Frame rate: 60 Hz or 9 Hz versions
• Digital zoomL: Variable up to 16x in SmartView® desktop software
• Operating temperature: -10 °C to +50 °C (14 °F to 122 °F)
• Storage temperature: -20 °C to +50 °C (-4 °F to 122 °F) without batteries
• Relative humidity: 10 % to 95 % non-condensing
• Dimensions: 83mm x 83mm x 165mm
• Weight: 1kg

Warranty:

• 2 year warranty covered by Fluke
