Fluke FLK-FEV300/TY2 (5347987) EV Charging Station Test Adapter Kit With Type 2 Connector

Fluke FLK-FEV300/TY2 (5347987) EV Charging Station Test Adapter Kit With Type 2 Connector

The FEV300 test adapter kit with Type 2 connector is designed to test function and safety of charging stations mode 3 for AC charging. The adapter imitates an electric vehicle and opens up a charging cycle, activating voltage and current output, allowing you to conduct tests in combination with appropriate test instruments like an installation tester (Fluke 1664 FC) and/or a ScopeMeter® (Fluke 120B Series). With the adapter kit, charging stations can be tested in accordance with IEC/EN 61851-1 and IEC/HD 60364-7-722.

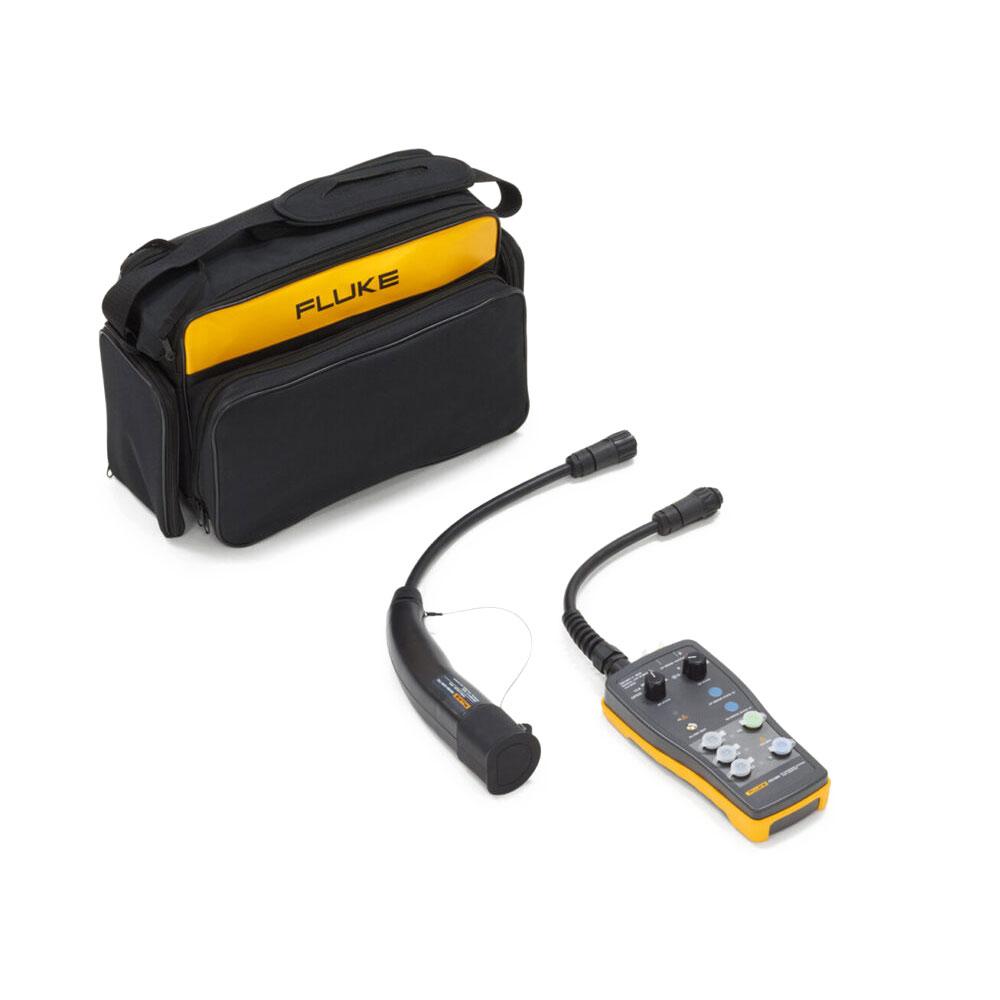

What's included:

• 1 x FEV300/BASIC Test Adapter
• 1 x FEV300-CON-TYP Type 2 Plug
• 1 x Carrying case

Features:

• PE conductor can be tested for possible presence of dangerous voltage against earth
• Perform Cable Simulation with the PP State rotary switch simulating current capabilities of charging cables
• Perform Vehicle Simulation testing in various charging states
• Simulate EP error (Earth fault)
• Test in accordance with IEC/EN 61851-1 and IEC/HD 60364-4-722
• IP 54 Rating: Dust and splashing water protected

Specifications:

• Input voltage: Up to 250V (Single phase system) & up to 480V (three phase system), 50/60 Hz, max 10 A
• Internal power consumption: 3 W max
• Operating temperature: -20°C to 40°C
• Dimensions (H x W x L): 110mm x 45mm x 220mm without connection cable and test cable
• Weight: Approx 1kg
