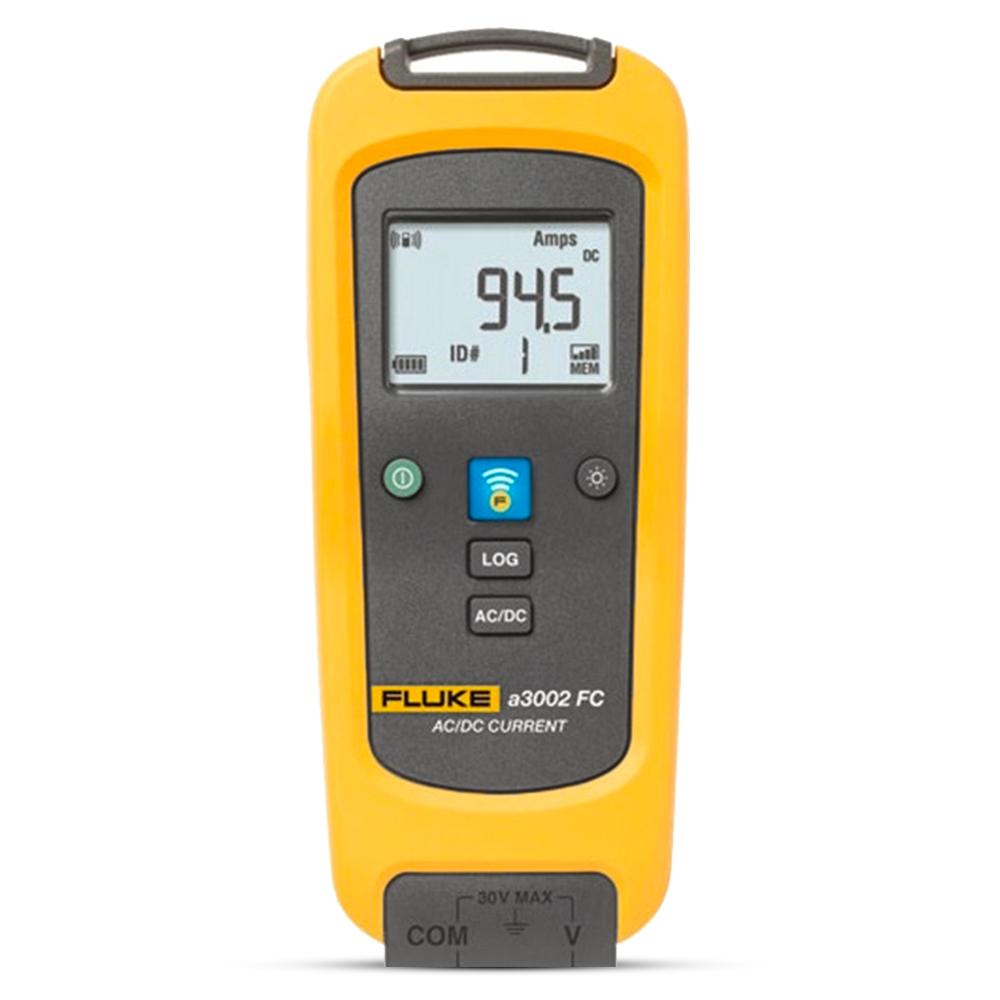

Fluke FLK-A3002 FC (4459442) Wireless AC/DC Current Module

Fluke FLK-A3002 FC (4459442) Wireless AC/DC Current Module

The Fluke a3002 FC Wireless AC/DC Current Module is one member of a family of wireless test tools that let you share test data using the Fluke Connect app with ShareLive video call. Fluke Connect Wireless Test Tools put tools, not your body, near live electrical panels. It's simple. Connect the a3002 FC current module, or any of the other Fluke Connect remote modules, and read the results on the Fluke Connect Wireless Multimeter or a portable PC from a safe distance.

The a3002 FC AC/DC current module wirelessly relays measurements to other Fluke Connect® enabled master units, listed below:

• Fluke 3000 FC DMM
• Fluke Ti200/300/400Thermal Camera
• PC via optional pc3000 FC Adapter
• Fluke Connect Mobile app

Specifications:

AC/DC current:

• DC:
  • Range: 1000 A
  • Resolution: 0.1 A
  • Accuracy: (0.5 % + 3)
• AC:
  • Range: 600.0 A
  • Resolution: 0.1 A
  • Accuracy: (1.0 % + 3)
• Voltage between terminal and earth ground (meter): 30 V dc or ac rms
• LCD w/backlight: 3 ½ digits, 6000 counts, 4/sec update rate
• Log rate/Interval: Adjustable by PC from 1 sec to 1 hr, default 1 min
• Battery type: 2 AA Alkaline batteries, NEDA 15A, IEC LR6
• Battery life: 400 hours minimum
• Memory: Record up to 65,000 readings
• RF communications: 2.4 GHz ISM Band
• RF communication range:
  • Open air, unobstructed: Up to 20 m
  • Obstructed, sheetrock wall: Up to 6.5 m
  • Obstructed, concrete wall or steel electrical enclosure: Up to 3.5 m
• Operating temperature: -10 °C to +50 °C
• Storage temperature: -40 °C to +60 °C
• Temperature coefficient: 0.1 X (specified accuracy)/°C (< 18 °C or > 28 °C)
• Relative humidity: 0 % to 90 % (0 °C to 35 °C), 0 % to 75 % (35 °C to 40 °C), 0 % to 45 % (40 °C to 50 °C)
• EMC: IEC 61236-1:2013 Protected to IEC 61010-1, 3rd edition, Pollution Degree 2
• Certifications cCSAus, CE, FCC: T68-FBLE IC: 6627A-FBLE
• Ingress Protection (IP) rating IP42
• Dimensions (LxWxD): 160mm x 66mm x 38mm
• Weight 0.255kg
