Fluke FLK-A3000 FC (4401588) a3000 FC Wireless AC Current Clamp Module

Fluke FLK-A3000 FC (4401588) a3000 FC Wireless AC Current Clamp Module

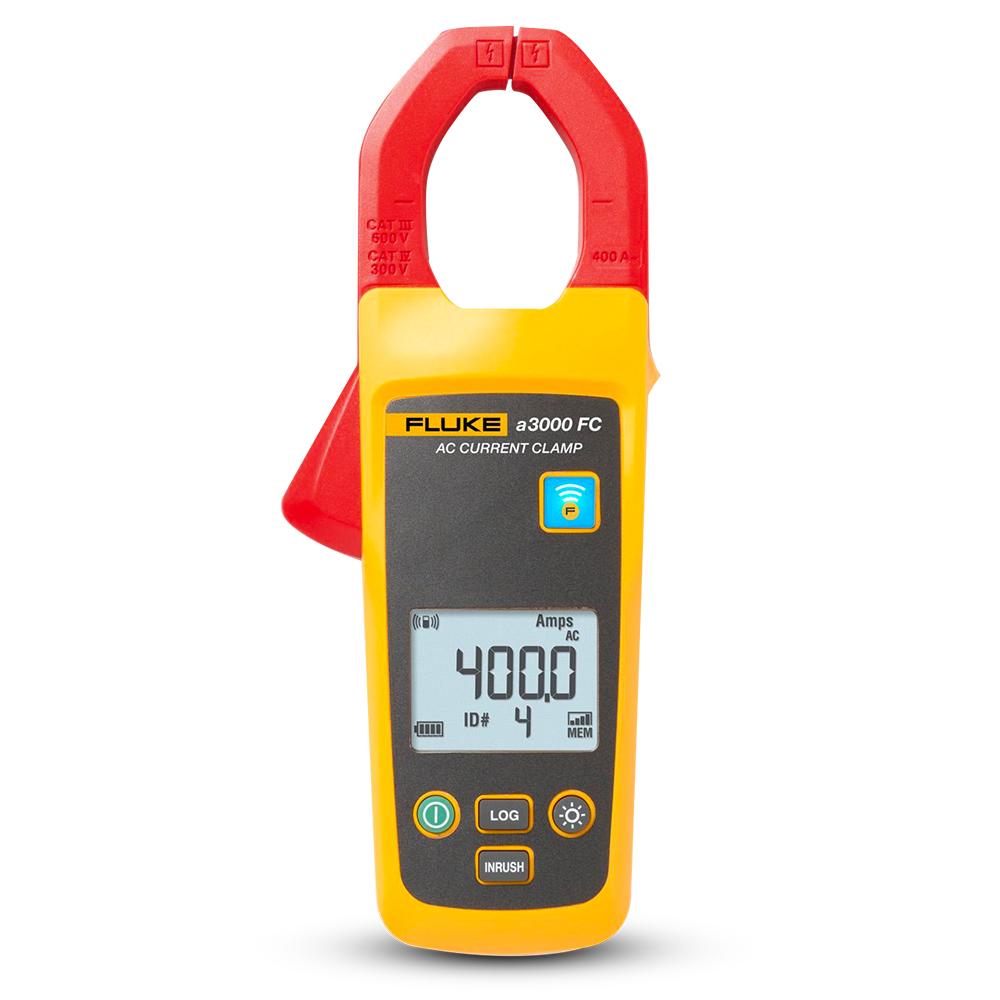

The Fluke a3000 FC Wireless AC Current Clamp Module is a fully functional true-RMS current clamp meter that wirelessly relays measurements to other Fluke Connect® enabled master units

Features:

• True-RMS AC clamp meter
• Measure up to 400 A AC
• Use as a standalone meter or as part of the system
• Logging function for recording and saving up to 65,000 readings
• Inrush function

Specifications:

• Range: 0.5 A to 400.0 A
• Resolution: 0.1 A
• 400.0 A Accuracy:
• 2% ±5 digits (10 Hz to 100 Hz)
• 2.5% ±5 digits (100 Hz to 500 Hz)
• Inrush Max displayed reading: 999.9A
• Crest factor (50 Hz / 60 Hz):
• 3 at 500 A (add 2% for C.F. > 2)
• 2.5 at 600 A (add 2% for C.F. > 2)
• 1.42 at 1000 A (add 2% for C.F. > 2)
• LCD w/ backlight: 3½ digits
• Log rate/interval: 1 sec minimum/adjustable by PC
• Battery type: 2 x AA, NEDA 15 A, IEC LR6
• Battery life: 400 hours
• Memory: Record up to 65,000 readings
• RF communications: 2.4 GHZ ISM Band
• RF communication range:
• Open air, unobstructed: Up to 20 m
• Obstructed, sheetrock wall: Up to 6.5 m
• Obstructed, concrete wall or steel electrical enclosure: Up to 3.5 m
• Operating temperature: -10°C to +50°C
• Storage temperature: -40°C to +60°C
• Temperature coefficient: Add 0.1 x (specified accuracy) / °C (< 18°C or > 28°C)
• Operating humidity:
• 90% at 35°C
• 75% at 40°C
• 45% at 50°C
• Operating Altitude: 2,000 m
• Storage Altitude: 12,000 m
• EMC: EN 61326-1:2006
• Safety compliance: IEC 61010-1, 600 V CAT III, 3rd edition Pollution Degree 2
• Safety rating: CAT III 600 V
• Certifications: CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE
• Ingress Protection (IP) rating: IP30
• Pollution Degree: 2
• Jaw opening: 34 mm (1.33 in)
• Dimensions (L x W x H): 35.5mm x 74.9mm x 203mm
• Weight: 0.22kg

Warranty:

• 3 Years Warranty Covered By Fluke
