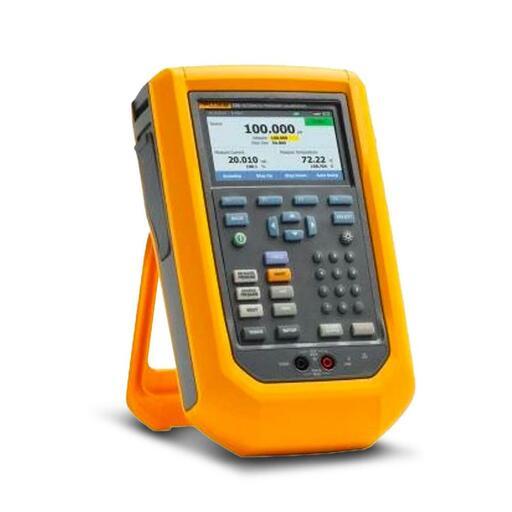

Fluke FLK-729 300G FC (4856882) Automatic Pressure Calibrator

Fluke FLK-729 300G FC (4856882) Automatic Pressure Calibrator

The Fluke 729 Automatic Pressure Calibrator has been designed specifically with process technicians in mind to simplify the pres­sure calibration process and provide faster, more accurate test results. Technicians know that calibrating pressure can be a time-consuming task, but the 729 makes it easier than ever with an internal electric pump that provides automatic pressure generation and regulation in an in an easy-to-use, rugged, portable package.

Includes:

• 1 x Li-Ion battery charger and adapters
• 1 x Quick-Connect pressure fitting, hose and adapter starter kit
• 1 x Stackable test lead
• 1 x AC280 SureGrip hook clips
• 1 x AC175 Alligator clips
• 1 x TP220 test probes (red, black)
• 1 x USB communication cable
• 1 x TPAK ToolPak™ Magnetic Meter Hanger Carrying case with shoulder strap and accessories pouch
• 1 x DPCTrack2™ trial calibration management software
• 1 x Traceable certificate of calibration

Features:

• Automatic pressure generation and regulation to 300 psi
• Easily document the process using onboard test templates
• Automatic internal fine-pressure adjustment
• Measure, source and simulate 4 to 20 mA signals
• 24V loop power for powering transmitters for tests
• Bright dual/triple-channel colour graphical display
• HART communication for testing HART smart transmitters
• Built in leak testing for verifying test setups for leakage
• Rugged portable design with standard 3-year warranty
• Fluke Connect® App compatibility
• Measure temperature with optional 720RTD probe
• Measure Vdc for testing 1 V dc to 5 V dc output transmitters
• Compatible with 700 Series and 750 Series pressure modules
• Upload documented test results to DPCTrack2™ Calibration Management Software
• Innovative semi-rigid carrying case designed for field work

Specifications:

• Voltage dc Measurement: 1mV
• Accuracy: 0.01 % ± 2 LSD all ranges (at 23 °C ± 5 °C)
• Stability: 20 ppm of full scale /°C from -10 °C to +18 °C and 28 °C to +50 °C
• PSI Range, Resolusion: -12.000 to 300.000 psi
• Bar Range, Resolusion: -0.8273 to 20.6843 bar
• kPa Range, Resolusion: -82.73 to 2068.43 kPa
• Operating Temperature:
  • For Measurement: -10°C to 50°C
  • For Pressure Control: 0ºC to 50ºC
• Operating Temperature With Battery: -10ºC to 40ºC
• Storage Temperature: -20ºC to 60ºC
• Operating Altitude: 3000m
• Storage Altitude: 13,000m
• Protection: IP54
• Dimensions (L x W x H): 172.7mm x 279.4mm x 70mm
• Weight: 2.95kg

Warranty:

• 3 Years Warranty Covered by Fluke
