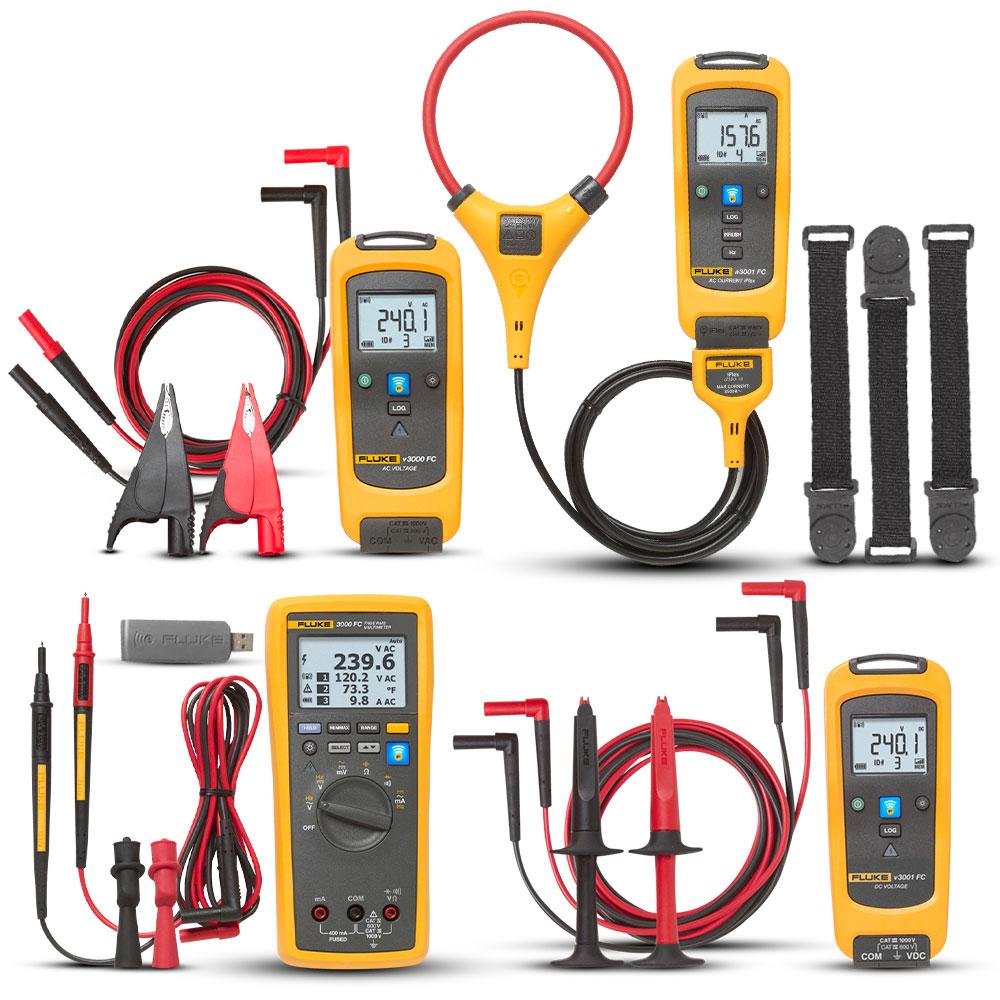

Fluke FLK-3000 FC GM (4467750) General Maintenance System

Fluke FLK-3000 FC GM (4467750) General Maintenance System

Connect the FC Wireless iFlex® AC Current Module to your test point, and view the results up to 20 meters away on the FC Wireless Digital Multimeter. Or connect the FC Wireless AC Voltage Module and view both voltage and current measurements simultaneously. You’ll save time, with less run-around collecting multiple measurements. Use multiple modules for measurements on three-phase systems, as a stand-alone measurement tool or combine with other Fluke Connect™ modules as a system for multiple measurements. From short distances, you can even view readings from modules through closed electrical panels. Plus no more writing down data as the Fluke Connect remote modules capture up to 65,000 sets of time stamped min/max/avg readings, using the optional PC adapter. Fluke Connect wireless test tools also offer increased safety by letting you view readings in a separate location from the test point.

Features:

• The Fluke 3000 FC Series Wireless Multimeter with the Fluke Connect® app has all the essentials for convenient test and measurement troubleshooting:
• AC and DC voltage measurements to 1000V
• AC and DC current with 0.01 mA resolution
• Continuity, resistance, diode test, capacitance and frequency measurements
• MIN/MAX recording
• CAT III 1000 V, Cat IV 600 V; IP54
• The Fluke v3000 FC Wireless AC Voltage Module offers:
• Measurements up to 1000 V true-RMS AC
• Use as a standalone meter or as part of the system
• A logging function for recording and saving up to 65,000 readings
• The Fluke v3001 FC Wireless DC Voltage Module lets you:
• Measure up to 1000 V DC
• Use as a standalone meter or as part of the system
• Use the logging function for recording and saving up to 65,000 readings
• The Fluke a3001 FC Wireless iFlex® AC Current Module allows you to measure around awkward sized conductors or get into tight spaces and makes wire access easier:
• Measure up to 2500 A AC
• Use as a standalone meter or as part of the system
• Logging function for recording and saving up to 65,000 readings
• Inrush function

Fluke 3000 FC Series Wireless Multimeter

Specifications:

• AC Voltage Range / Resolution:
• 600.0 mV / 0.1 mV
• 6.000 V / 0.001 V
• 60.00 V / 0.01 V
• 600.0 V / 0.1 V
• 1000 V / 1 V
• AC Voltage Accuracy:
• 45 Hz to 500 Hz 1.0% + 3
• 500 Hz to 1 kHz 2.0% + 3
• mV Range / Resolution: 600.0 mV / 0.1 mV
• mV Accuracy: 0.09% + 2
• V Range / Resolution:
• 6.000 V / 0.001 V
• 60.00 V / 0.01 V
• 600.0 V / 0.1 V
• 1000 V / 1 V
• V Accuracy:
• 0.09% + 2
• 0.15% + 2
• ))) Range / Resolution: 600 Ω / 1 Ω
• ))) Accuracy: Meter beeps at < 25 Ω, beeper detects opens or shorts of 250 μs or longer.
• Ω Range / Resolution:
• 600.0 Ω / 0.1 Ω
• 6.000 kΩ / 0.001 kΩ
• 60.00 kΩ / 0.01 kΩ
• 60.00 kΩ / 0.1 kΩ
• 600.0 kΩ / 0.001 MΩ
• 50.00 MΩ / 0.01 MΩ
• Ω Accuracy:
• 0.5% + 2
• 0.5% + 1
• 1.5% + 3
• Diode test Range / Resolution: 2.000 V / 0.001 V
• Diode test Accuracy: 1% + 2
• µF Range / Resolution:
• 1000 nF / 1 nF
• 10.00 μF / 0.01 μF
• 100.0 μF / 0.1 μF
• 9999 μF1 / 1 μF
• µF Accuracy:
• 1.2% + 2
• 10% typical
• mA AC (45 Hz to 1 kHz) Range / Resolution:
• 60.00 mA / 0.01 mA
• 400.0 mA 3/ 0.1 mA
• mA AC (45 Hz to 1 kHz) Accuracy: 1.5% + 3
• mA DC Range / Resolution:
• 60.00 mA / 0.01 mA
• 400.0 mA 3/ 0.1 mA
• mA DC Accuracy: 0.5% + 3
• Frequency Range / Resolution:
• 99.99 Hz / 0.01 Hz
• 999.9 Hz / 0.1 Hz
• 9.999 kHz / 0.001 kHz
• 99.99 kHz / 0.01 kHz
• Frequency Accuracy: 0.1% + 1
• mA Function Overload protection: Fused, 44/100 A, 1000 V FAST Fuse
• mA Function Overload: 600 mA overload for 2 minutes maximum, 10 minutes rest minimum
• MIN/MAX Recording Accuracy DC functions: The specified accuracy of the measurement function ±12 counts for changes > 350 mS in duration.
• MIN/MAX Recording Accuracy AC functions: The specified accuracy of the measurement function ±40 counts for changes > 900 mS in duration.
• Maximum voltage between any terminal and earth ground: 1000 V DC or AC RMS
• Ω fuse protection from A inputs:0.44 A (44/100 A, 440 mA), 1000 V FAST Fuse, Fluke specified part only
• Display (LCD):Update rate: 4/sec
• Volts, amps, ohms: 6000 counts
• Frequency: 10,000 counts
• Capacitance: 1,000 counts
• Battery type: 3 x AA Alkaline batteries, NEDA 15A IEC LR6
• Battery life: 250 hours minimum
• RF communications: 2.4 GHZ ISM Band
• RF communication range:
• Open air, unobstructed: Up to 20m
• Obstructed, sheetrock wall: Up to 6.5m
• Obstructed, concrete wall, or steel electrical enclosure: Up to 3.5m
• Operating Temperature: -10°C to 50°C
• Storage Temperature: -40°C to 60°C
• Temperature coefficient: 0.1 X (specified accuracy) / °C (< 18°C or > 28°C)
• Relative humidity:
• 0% to 90% (0°C to 35°C)
• 0% to 75% (35°C to 40°C)
• 0% to 45% (40°C to 50°C)
• Operating Altitude: 2,000 m
• Storage Altitude: 12,000 m
• Electromagnetic compatibility - EMI, RFI, EMC, RF
• EN 61326–1:2006, EN 61326–2–2:2006
• ETSI EN 300 328 V1.7.1:2006, ETSI EN 300 489
• V1.8.1:2008
• FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249
• FCCID : FCC: T68–FDMMBLE IC: 6627A–FDMMBLE
• Safety compliance:
• ANSI / ISA 61010–1 / (82.02.01): 3rd edition
• CAN / CSA-C22.2 No 61010-1-12: 3rd edition
• UL 61010–1: 3rd edition
• IEC / EN 61010–1:2010
• Certifications: CSA, FCC, CE
• Ingress Protection (IP) rating: IP54
• Pollution Degree: 2
• Dimensions (L x W x H): 207mm x 93mm x 47.5mm
• Weight: 0.34kg

Warranty:

• 3 Years Warranty Covered By Fluke

Fluke v3000 FC Wireless AC Voltage Module

Specifications:

• Range / Resolution:
• 6.000 V / 0.001 V
• 60.00 V / 0.01 V
• 600.0 V / 0.1 V
• 1000 V / 1 V
• Accuracy:
• 45 Hz to 500 Hz1.0% + 3
• 500 Hz to 1 kHz2.0% + 3
• LCD w/ backlight: 3½ digits, 6000 counts, updates 4/sec
• Battery type: 2 x AA, NEDA 15 A, IEC LR6
• Battery life: 400 Hours
• Memory: Record up to 65000 readings
• RF communications: 2.4 GHZ ISM Band
• RF communication range:
• Open air, unobstructed: Up to 20 m
• Obstructed, sheetrock wall: Up to 6.5 m
• Obstructed, concrete wall or steel electrical enclosure: Up to 3.5 m
• Operating temperature: -10°C to +50°C
• Storage temperature: -40°C to +60°C
• Temperature coefficient: 0.1 x (specified accuracy)/ °C (< 18°C or > 28°C)
• Operating humidity: 90% at 35°C, 45% at 40°C, 45% at 50°C
• Operating Altitude: 2,000 m
• Storage Altitude: 12,000 m
• EMC: EN 61326-1:2006
• Safety compliance:
• ANSI/ISA 61010-1 / (82.02.01) 3rd edition
• CAN/CSA-C22.2 No 61010-1-12 3rd edition
• UL 61010-1 3rd edition
• IEC/EN 61010-1 2010
• Safety rating: CAT IV 600 V, CAT III 1000 V
• Certifications: CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE
• Ingress Protection (IP) rating: IP42
• Pollution Degree: 2
• Dimensions (L x W x H): 14mm x 63.5mm x 165mm
• Weight: 0.22kg

Warranty:

• 3 Years Warranty Covered By Fluke

Fluke v3001 FC Wireless DC Voltage Module

Specifications:

• mVDC Range / Resolution: 600.0 mV / 0.1 mV
• mVDC Accuracy: 0.09% + 3
• VDC Range / Resolution:
• 6.000 V / 0.001 V
• 60.00 V / 0.01 V
• 600.0 V / 0.1 V
• VDC Accuracy: 0.09% + 3
• VDC Range / Resolution: 1000 V / 1 V
• VDC Accuracy: 0.15% + 2
• LCD w/backlight: 3 ½ digits, 6000 counts, 4/sec update rate
• Battery type: 2 x AA Alkaline batteries, NEDA 15A, IEC LR6
• Log rate/interval: Adjustable by PC from 1 sec to 1 hr, default 1 min
• Battery life: 400 hours minimum
• Memory: Record up to 65,000 readings
• RF communications: 2.4 GHz ISM Band
• RF communication range:
• Open air, unobstructed: Up to 20 m
• Obstructed, sheetrock wall: Up to 6.5 m
• Obstructed, concrete wall or steel electrical enclosure: Up to 3.5 m
• Operating temperature: -10°C to +50°C
• Storage temperature: -40°C to +60°C
• Temperature coefficient: 0.1 x (specified accuracy)/ °C (< 18°C or > 28°C)
• Relative humidity:
• 0% to 90% (0°C to 35°C)
• 0% to 75% (35°C to 40°C)
• 0% to 45% (40°C to 50°C)
• EMC: IEC 61236-1, Portable
• Safety compliance: IEC 61010-1, 600 V CAT IV / 1000 V CAT III, 3rd edition, Pollution Degree 2
• Certifications: CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE
• Ingress Protection (IP) rating: IP42
• Dimensions (L x W x H): 38mm x 66mm x 160mm
• Weight 0.255kg

Warranty:

• 3 Years Warranty Covered By Fluke

Fluke a3001 FC Wireless iFlex AC Current Module

Specifications:

• Range: 0.5 A to 2500 A AC
• Resolution: 0.1 A
• Accuracy: 3% ±5 digits (5 Hz to 500 Hz)
• Crest factor (50 Hz / 60 Hz):
• 3.0 at 1100 A
• 2.5 at 1400 A
• 1.42 at 2500 A
• add 2% for C.F. > 2
• LCD w/ backlight: 3½ digits
• Log rate/interval: 1 sec minimum/adjustable by PC or front panel
• Battery type: 2 x AA, NEDA 15 A, IEC LR6
• Battery life: 400 hours
• Memory: Record up to 65,000 readings
• RF communications: 2.4 GHZ ISM Band
• RF communication range:
• Open air, unobstructed: Up to 20 m
• Obstructed, sheetrock wall: Up to 6.5 m
• Obstructed, concrete wall or steel electrical enclosure: Up to 3.5 m
• Operating temperature: -10°C to +50°C
• Storage temperature: -40°C to +60°C
• Temperature coefficient: Add 0.1 x (specified accuracy) /°C (< 18°C or > 28°C)
• Operating humidity:
• 90% at 35°C
• 75% at 40°C
• 45% at 50°C
• Operating Altitude: 2,000 m
• Storage Altitude: 12,000 m
• EMC: EN 61326-1:2006
• Safety compliance: IEC 61010-1, 600 V CAT IV/1000 V CAT III, 3rd edition
• Safety rating: CAT IV 600 V, CAT III 1000 V
• Certifications: CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE
• Ingress Protection (IP) rating: IP42
• Pollution Degree: 2
• Jaw opening: 25.4 cm (10 in) coil
• Dimensions (L x W x H): 14mm x 63.5mm x 165mm
• Weight: 0.22kg

Warranty:

• 3 Years Warranty Covered By Fluke
