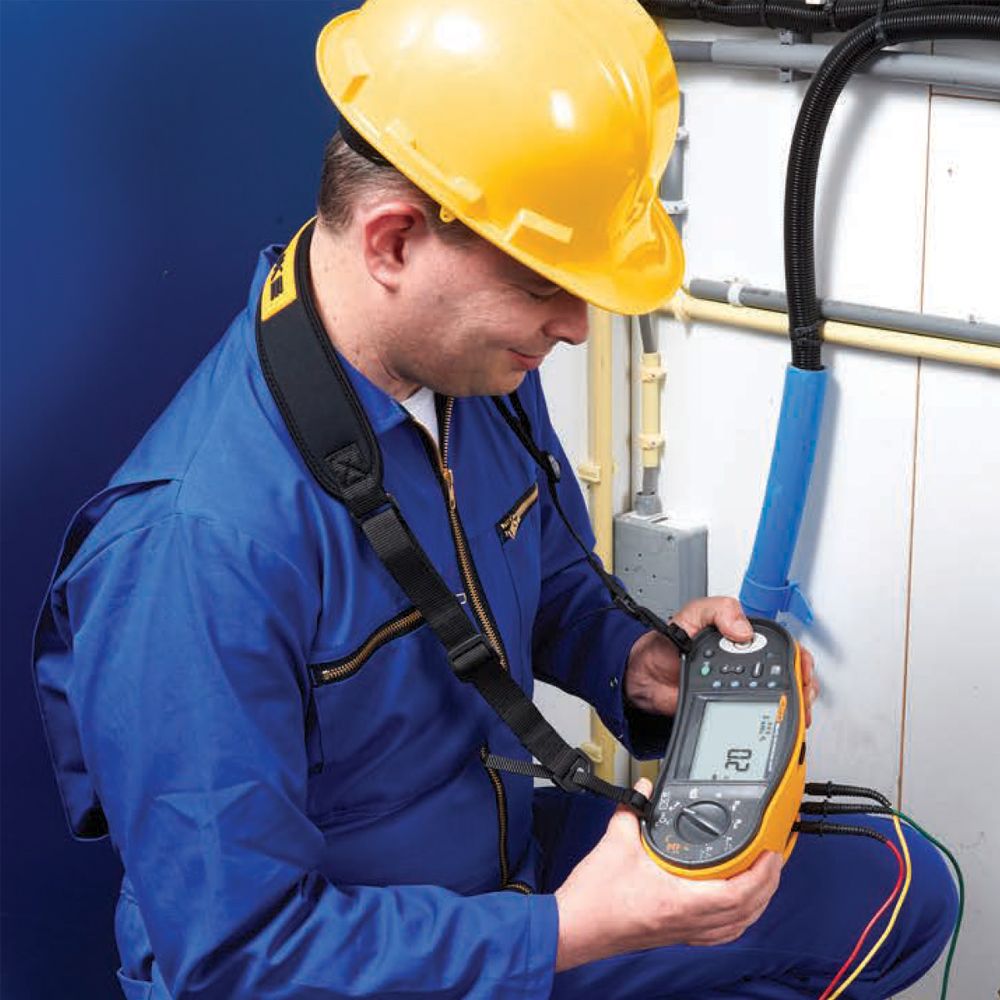

Fluke FLK-1662-AU (4546967) Multifunction Tester With Memory

Fluke FLK-1662-AU (4546967) Multifunction Tester With Memory

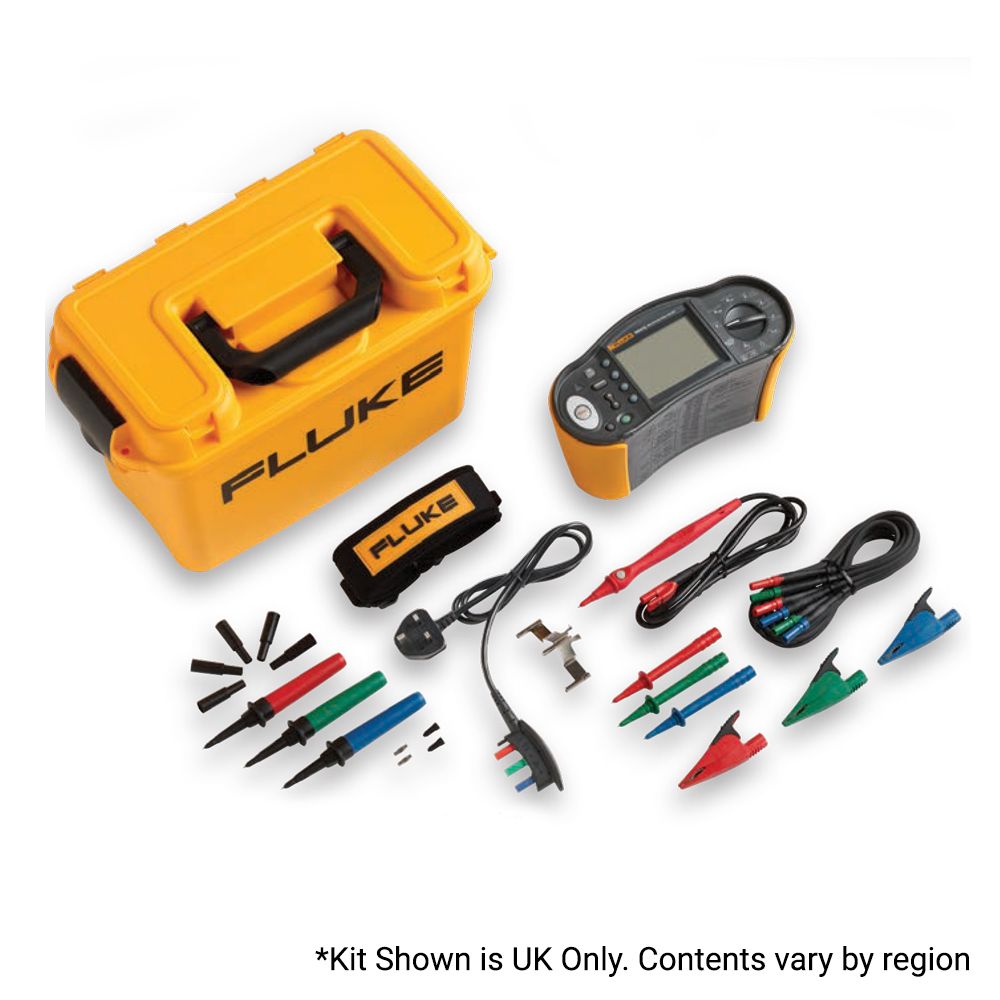

Includes:

• 6x AA (IEC LR6) cell batteries
• 1 x C1600 hard carrying case
• 1 x Zero adapter
• 1 x Heavy duty mains cord
• 1 x STD standard test lead set
• 1 x Padded carrying and waist strap
• 1 x Quick reference guide
• 1 x TP165X remote control probe and lead

Features:

• A solid, reliable, basic installation tester
• Tests voltage and frequency
• Checks wiring polarity to detect broken N wires
• Measures insulation resistance and loop and line resistance
• Measures motor windings with continuity test
• Calculates prospective earth fault current (PEFC/IK) and prospective short-circuit current (PSC/IK)

Specifications:

• Range: 500V
• Resolution: 0.1 V
• Accuracy 45 Hz – 66 Hz: 0.8% + 3
• Input impedance: 360 kΩ
• Overload protection: 660 V rms
• Continuity testing (RLO)
• Range (autoranging): 20 Ω / 200 Ω / 2000 Ω
• Resolution: 0.01 Ω / 0.1 Ω / 1 Ω
• Open Circuit Voltage: >4V
• Insulation resistance measurement (RISO)
• Accuracy of Test voltage (at rated test current): +10%, -0%
• Test voltage:
• 100 V
• 250 V
• 500 V
• 1000 V
• Insulation resistance range:
• 20 MΩ / 50 MΩ
• 20 MΩ / 100 MΩ
• 20 MΩ / 200 MΩ
• 20 MΩ / 200 MΩ / 500 MΩ
• 20 MΩ / 200 MΩ / 1000 MΩ
• Resolution:
• 0.01 MΩ / 0.1 MΩ
• 0.01 MΩ / 0.1 MΩ
• 0.01 MΩ / 0.1 MΩ
• 0.01 MΩ / 0.1 MΩ / 1 MΩ
• 0.01 MΩ / 0.1 MΩ / 1 MΩ
• Test current:
• 1 mA @ 50 kΩ
• 1 mA @ 100 kΩ
• 1 mA @ 250 kΩ
• 1 mA @ 500 kΩ
• 1 mA @ 1 MΩ
• Loop and line impedance (ZI)
• Range: 10 Ω / 0.001 Ω / High current mΩ mode
• Resolution: 0.01 Ω / 0.1 Ω / 1 Ω
• Prospective earth fault current, PSC test
• Range: 1000 A / 10 kA (50 kA)
• Resolution: 1 A / 0.1 kA
• Computation: Prospective earth fault current (PEFC) or Prospective short circuit current (PSC) determined by dividing measured mains voltage by measured loop (L-PE) resistance or line (L-N) resistance, respectively.
• RCD testing, RCD types tested
• RCD Type:
• A4, AC¹, G², S³
• Notes:
• ¹Responds to AC
• ²General, no delay
• ³Time delay
• 4Responds to pulsed signal
• 5Responds to smooth DC signal
• Tripping speed test (ΔT)
• Current settings¹:
• 10-30-100-300-500-1000 mA – VAR
• 10-30-100 mA
• Multiplier: x ½, x 1, x 5
• Measurement range:
• RCD Type G:
• 310 ms
• 50 ms
• RCD Type S:
• 510 ms
• 160 ms
• Specified trip current ranges (EN 61008-1): 50% to 100% for Type AC, 35% to 140% for Type A (>10 mA), 35% to 200% for Type A (≤10 mA), 50% to 200% for Type B, ²5% for Type B
• Battery size: Type AA, 6 ea.
• Sealing: IP-40
• Safety: Complies with EN61010-1 Ed 2.0 (2001-02), UL61010, ANSI/ISA –s82.02.01 2000 and CAN/CSA c22.2 No. 1010 2nd edition
• Overvoltage: CAT III / 500V; CAT IV 300V
• Performance: EN61557-1 to EN61557-7 Second Edition and EN61557-10 Second Edition
• Size (L x W x H): 100 x 250 x 125 mm
• Weight: 1.3kg
