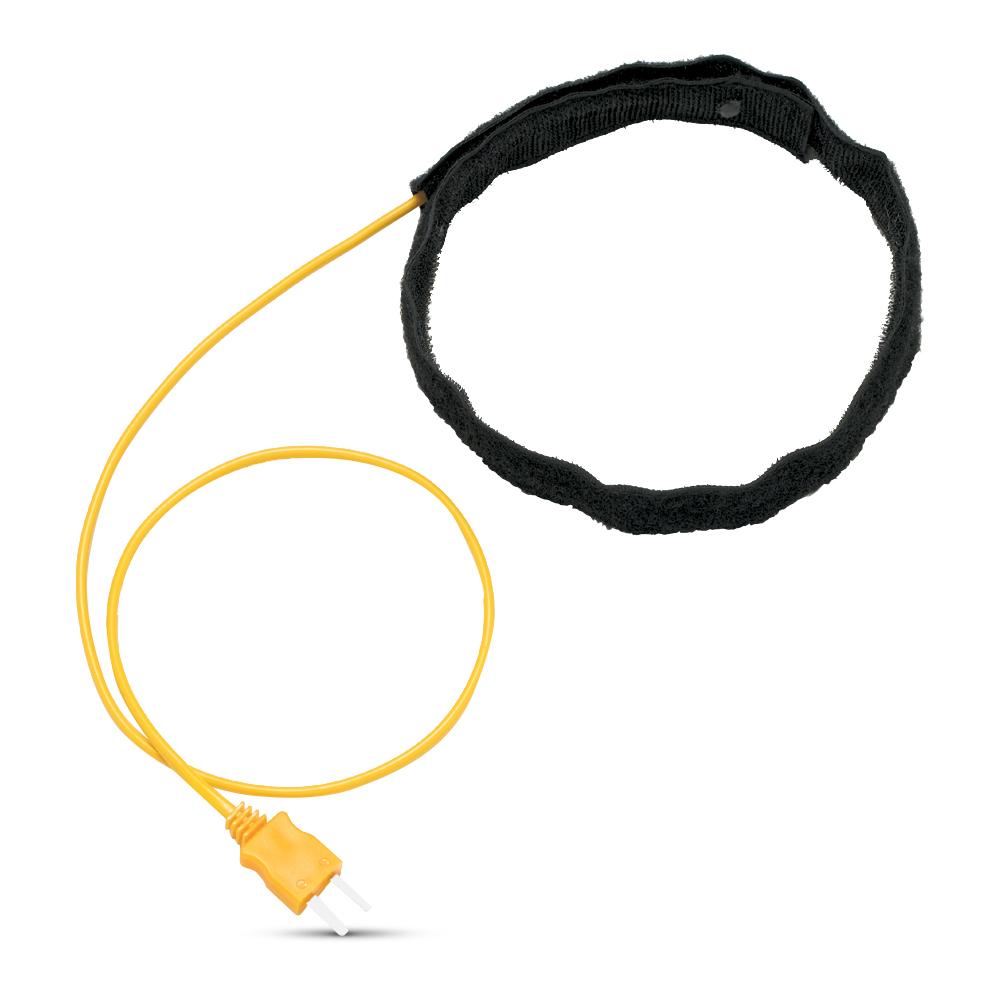

Fluke 80PK-11 (2724500) Type-K Flexible Cuff Thermocouple Temperature Probe

Fluke 80PK-11 (2724500) Type-K Flexible Cuff Thermocouple Temperature Probe

Features:

• Designed for hands free measurement of HVAC temperature measuring applications
• Use multiple and leave in place for route based routine maintenance
• Use with any temperature-measuring instrument designed to accept Type-K thermocouples

Specifications:

• Measurement range: -30°C to 150°C (-19.3°F to 302°F)
• Accuracy: ±1.5°C (±2.7°F)
• Measurement time (time constant): 10 seconds
• Maximum voltage: 24 V AC rms or 60 V DC maximum for proper safe operation.
• Cable:
  • Total length: 1m
  • Insulation material: Hytrel
  • Width of attachment material: 25mm
  • Min usable pipe diameter: 38mm
  • Max. usable pipe diameter: 140mm
• Connector:
  • Type: Yellow mini-thermocouple with 0.500 in pin
  • Material: Hytrel 4774
  • Maximum temperature: 200°C (392°F)
