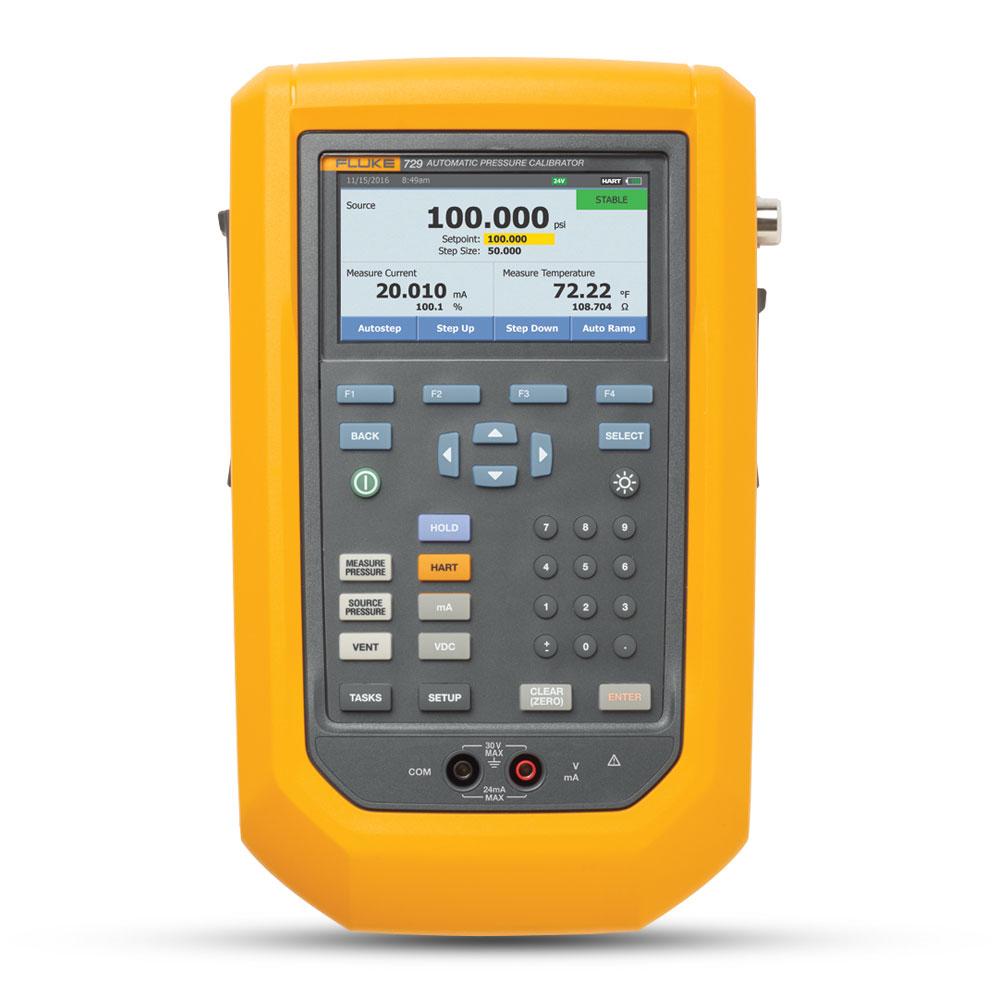

Fluke FLK-729 300G (4856976) 300PSI Automatic Pressure Calibrator

Fluke FLK-729 300G (4856976) 300PSI Automatic Pressure Calibrator

Feature:

• Automatic pressure generation and regulation to 300 psi
• Easily document the process using onboard test templates
• Automatic internal fine-pressure adjustment
• Measure, source and simulate 4 to 20 mA signals
• 24V loop power for powering transmitters for tests
• Bright dual/triple-channel color graphical display
• HART communication for testing HART smart transmitters
• Built-in leak testing for verifying test setups for leakage
• Rugged portable design with standard 3-year warranty
• Fluke Connect® App compatibility
• Measure temperature with optional 720RTD probe
• Measure Vdc for testing 1 V dc to 5 V dc output transmitters
• Compatible with 700 Series and 750 Series pressure modules
• Upload documented test results to DPCTrack2™ Calibration Management Software
• Innovative semi-rigid carrying case designed for field work

Specifications:

• Pressure specification*
  One-year specification: 0.02% of full scale
  Control specification: 0.005% full scale minimum
  (*See manual for detailed specifications)
• 729 300G Psi range, resolution: -12.000 to 300.000 psi
• Bar range, resolution: -0.8273 to 20.6843 bar
• kPa range, resolution: -82.73 to 2068.43 kPa
• No wireless communication
• Size (HxWxL) 7 x 27.94 x 17.27 cm (2.75 x 11 x 6.8 in)
• Weight 6.5 lbs., 2.95 kg
