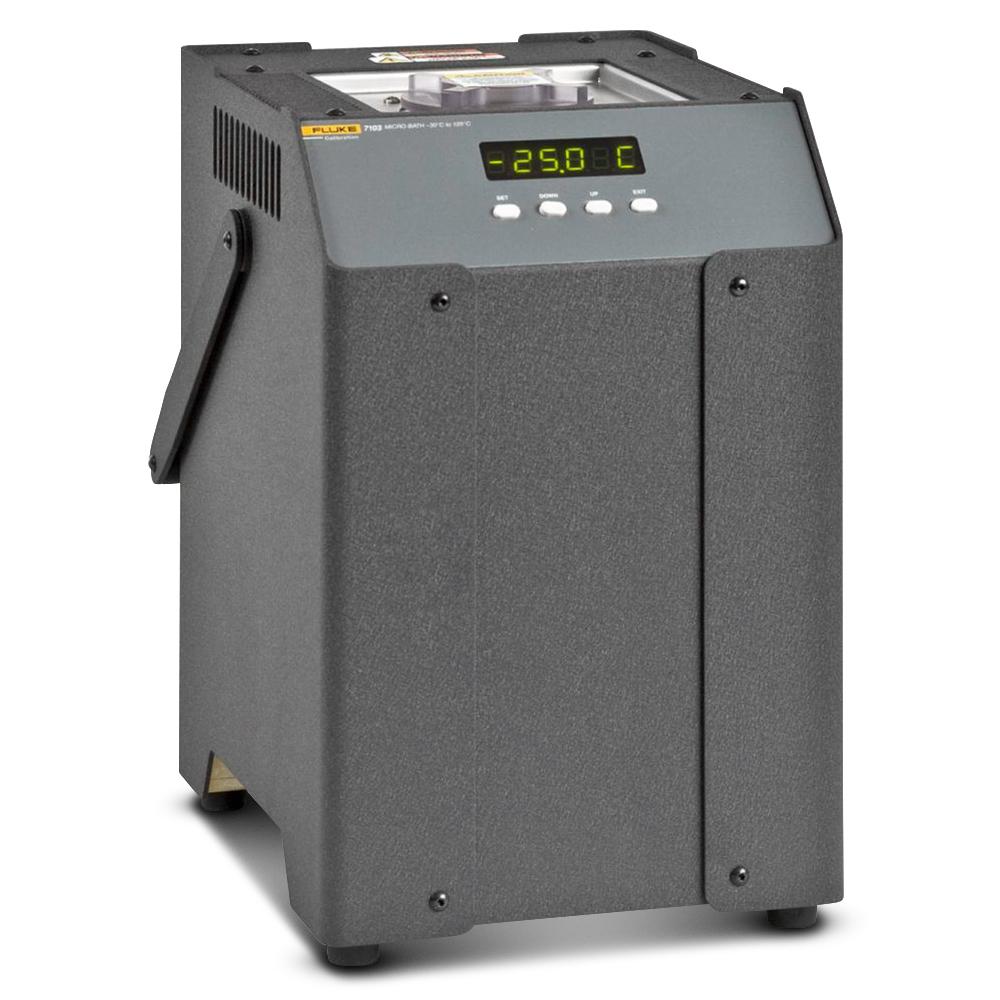

Fluke 7103 400W -30°C to 125°C Micro-Bath Thermometer Calibrator

Fluke 7103 400W -30°C to 125°C Micro-Bath Thermometer Calibrator

Wherever you go with your Micro-Bath, you can count on its performance. Each model is stable to ±0.03°C or better, depending on the fluid you use. Uniformity is ±0.02°C or better for low uncertainties using a reference thermometer. Display accuracy has been improved to ±0.25°C for quick calibrations without a reference thermometer. In short, you get the stability and precision of a liquid bath in a dry-well-sized package. Don’t be fooled by competitors who pour oil into a dry-well and call it a bath. Micro-Baths are maximized for true fluid-bath performance.

With a 48mm diameter, 140mm deep tank, a Micro-Bath can calibrate any type of sensor including short, square, or odd-shaped sensors. The problems of fit and immersion are virtually eliminated by using a fluid medium rather than a dry-block calibrator. Micro-Baths are perfect for liquid-in-glass and bimetal thermometers.

All Micro-Baths have RS-232 ports, come with our Interface-it software, and can be used with MET/TEMP II software. Also included are contacts to calibrate a thermal switch, eight set-point memory storage, ramp-rate adjust, and over-temperature safety cutout.

You may have noticed we haven’t touted our CFC-free refrigeration. Yes, cold Micro-Baths are CFC-free, and also compressor-free. That’s right - no heavy, noisy compressor to lug around. We achieve our temperature range and stability with only one moving part. This means more durability and less weight. Fluke Calibration manufactures and sells temperature calibration baths of every size and shape, and now we have the smallest and lightest baths in the industry to go with the dozens of other models we make.

Refer to the Users Guide for information on selecting the right bath fluid for your application.

Features:

• Micro-Baths can be used anywhere for any type of sensor.
• You can take it where you need to go without carts or excessive effort
• Micro-Baths can even be transported with the fluid in them
• Stable to ±0.03°C or better, depending on the fluid you use
• Uniformity is ±0.02°C or better for low uncertainties using a reference thermometer
• Display accuracy has been improved to ±0.25°C for quick calibrations without a reference thermometer
• Get the stability and precision of a liquid bath in a dry-well-sized package
• Don’t be fooled by competitors who pour oil into a dry-well and call it a bath. Micro-Baths are maximized for true fluid-bath performance.
• Micro-Bath can calibrate any type of sensor including short, square, or odd-shaped sensors
• Micro-Baths are perfect for liquid-in-glass and bimetal thermometers
• All Micro-Baths have RS-232 ports, come with our Interface-it software, and can be used with MET/TEMP II software
• Cold Micro-Baths are CFC-free, and also compressor-free. No heavy, noisy compressor to lug around.
• Increased durability and less weight
• World’s smallest portable calibration baths
• Calibrates sensors of any size or shape
• Portability and extreme stability

Specifciations:

• Power: 94-234V ac (± 10 %), 50/60Hz, 400W
• Range: -30°C to 125°C
• Accuracy: ± 0.25°C
• Stability (Oil 5013):
  • At -25°C: ± 0.03°C
  • At 125°C: ± 0.05°C
• Uniformity: ± 0.02°C
• Resolution: 0.01°C/°F
• Operating Temperature: 5°C to 45°C
• Heating Time (25°C to 100°C): 35minutes
• Cooling Time (25°C to -25°C): 45minutes
• Well Size: 64mm diameter x 140mm deep (working area is 48 mm in diameter)
• Volume: 1L
• Computer Interface: RS-232 Interface
• NIST-Traceable Calibration: Data at -25°C, 0°C, 25°C, 50°C, 75°C, 100°C & 125°C
• Commonly Used Fluids: Water (distilled), Mineral Oil, Silicone Oil
• Dimensions (L x W x H): 260mm x 230mm x 340mm
• Weight (with fluid): 9.8kg
