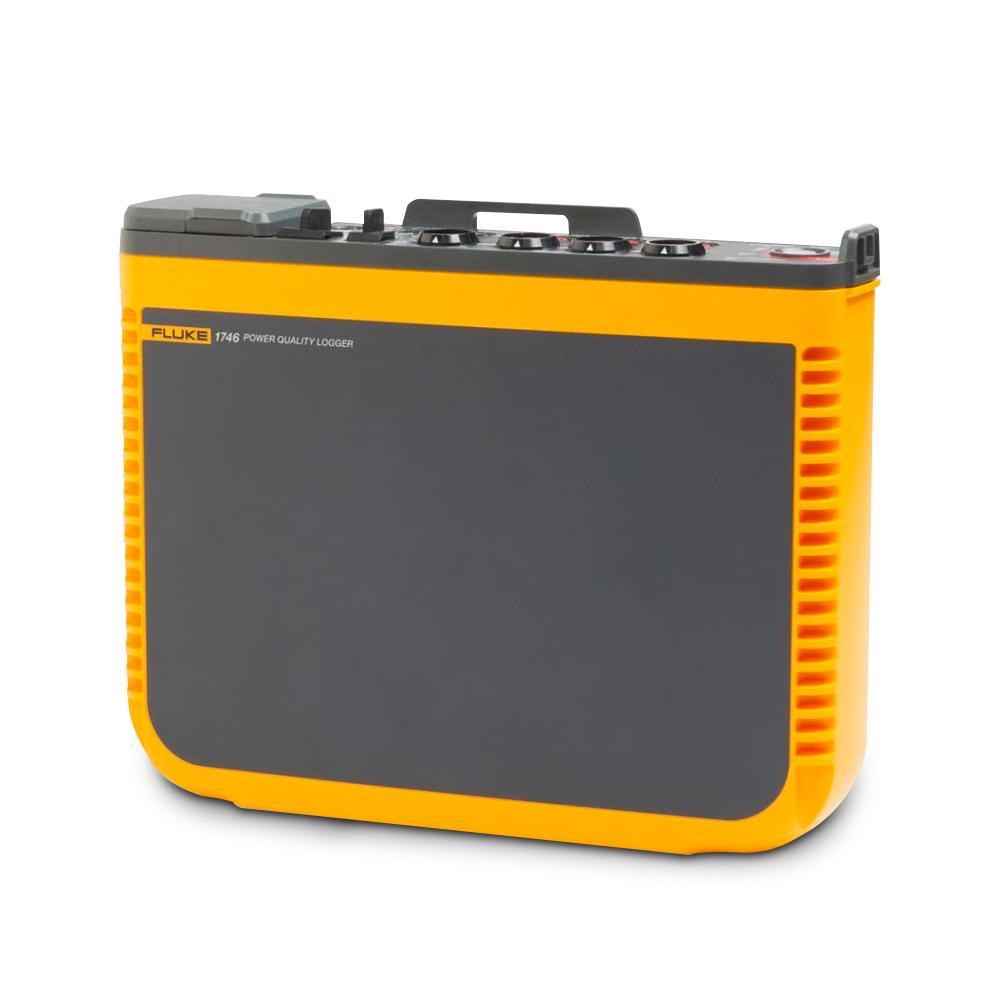

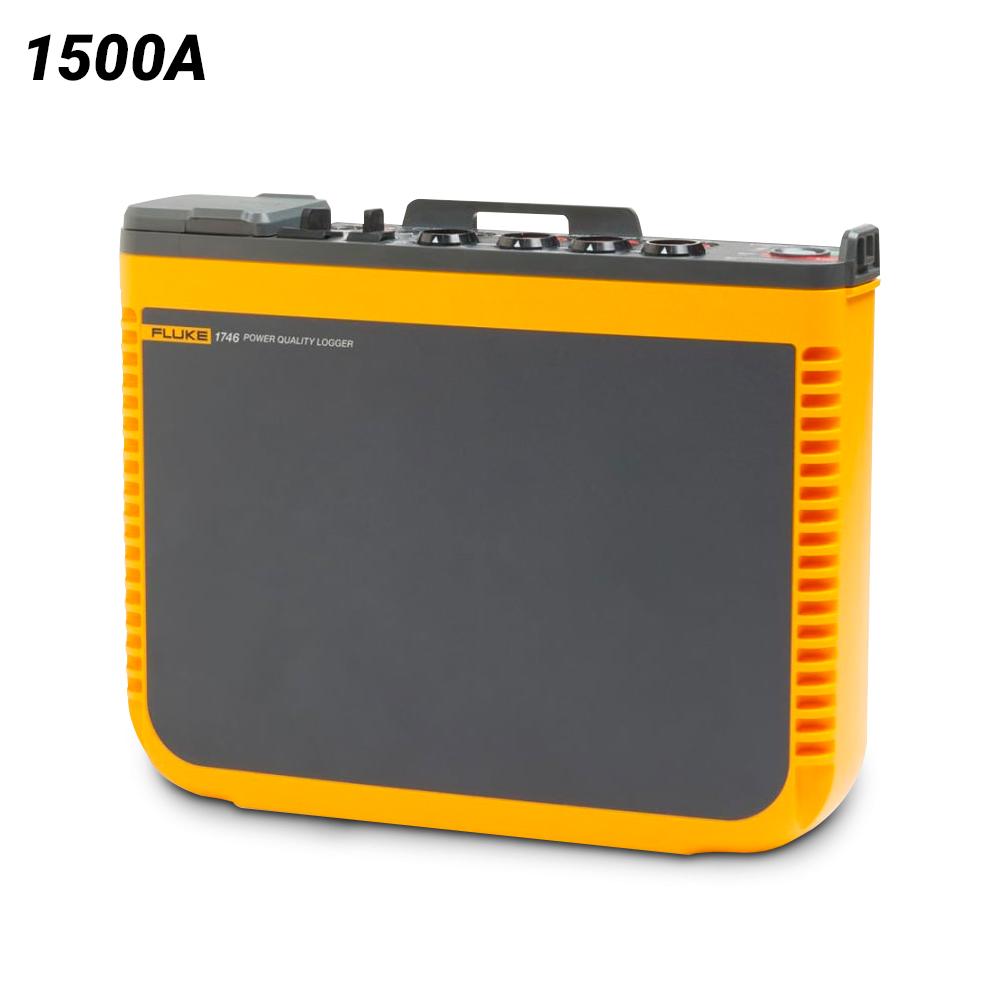

Fluke 1746/15/EUS (4920703) 1500A iFlex 3-Phase Power Quality Logger

Fluke 1746/15/EUS (4920703) 1500A iFlex 3-Phase Power Quality Logger

Compact and rugged, this three-phase power quality logger is specifically for technicians and engineers who need the flexibility to troubleshoot, quantify energy usage and analyze power distribution systems. Fully compliant with international power quality standards such as IEC 61000-4-30 and capable of simultaneously logging up to 500 parameters while also capturing events, this unit helps uncover intermittent and hard-to-find power quality issues more easily than ever. It comes equipped with an Energy Analyze plus software which quickly assesses the quality of power at the service entrance, substation, or at the load, according to national and international standards like EN 50160 and IEEE 519.

Features:

• Measure all three voltage and current phases plus the neutral current
• Comprehensive logging
• Measure with premium accuracy
• Capture dips, swells and interruptions
• Measure key power quality parameters
• Flexible power supply
• Rugged and reliable
• Two external USB ports
• Ethernet connectivity
• Highest safety rating in the industry
• Optimized measurement accessories

Specifications:

• i17xx-flex 1500IP 24 1500A:
  • Range: 150/1500 A
• Voltage range:
  • 100 V to 500 V using safety plug input when powering from the measurement circuit
  • 100 V to 240 V MA-C8 and using standard power cord (IEC 60320 C7)
• Power consumption: Maximum 50 VA (max. 15 VA when powered using MA-C8 adapter)
• Efficiency: ≥ 68.2% (in accordance with energy efficiency regulations)
• Maximum no-load consumption: < 0.3 W only when powered using IEC 60320 input
• Mains power frequency: 50/60 Hz ±15%
• Battery: Li-ion 3.7 V, 9.25 Wh, customer-replaceable
• On-battery runtime: Typically 4 hours
• Charging time < 6 hours
• Data Storage: Internal Flash Memory (not user replaceable)
• Dimensions: 23.0 cm x 18.0 cm x 5.4 cm (9.1 in x 7.1 in x 2.1 in)
• Weight: 1kg

Warranty:

• One year covered by Fluke
