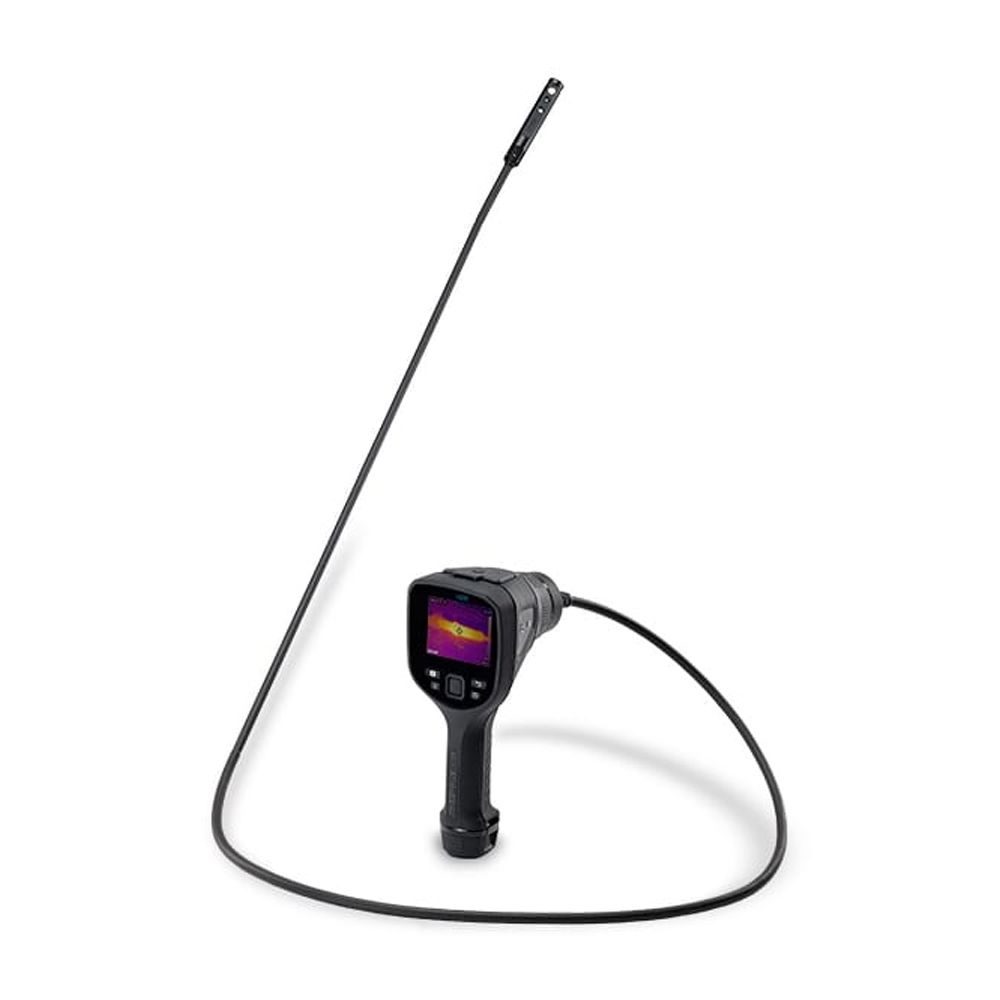

FLIR VS290-33 160 x 120 Pixel 2m Probe Thermal Videoscope

FLIR VS290-33 160 x 120 Pixel 2m Probe Thermal Videoscope

The FLIR VS290-33 is a professional-grade thermal videoscope equipped with a 160 × 120 infrared sensor and a flexible 2-metre probe. Designed for inspecting confined, hazardous, or difficult-to-access environments, it provides thermal and visual imaging to help identify hotspots, moisture intrusion, air leaks, electrical faults, mechanical wear and hidden issues without dismantling equipment. Ideal for industrial maintenance, utilities, HVAC, building diagnostics and electrical inspections.

Features:

• 160 × 120 thermal resolution for detailed temperature imaging
• 2m flexible thermal probe for deep access into tight or restricted areas
• Enables safe inspection around high-risk or energised environments
• Detects overheating components, insulation breakdown, leaks and blockages
• Combines thermal and visual feedback for accurate diagnostics
• Rugged, portable design for field maintenance and industrial use
• Suitable for electrical panels, switchgear, ducting, conduits, machinery and building cavities

Specifications:

• Thermal Resolution: 160 × 120 pixels
• Temperature Range: -10°C to 400°C
• Display: 3.5" colour LCD
• Probe Length: 2 metres
• Probe Tip: 19mm rounded, side-viewing
• Camera Modes: Thermal, visual and MSX®
• Worklight: Integrated LED light
• Image Storage: 16GB SD card
• Image Format: Radiometric JPEG
• Battery Runtime: Over 5 hours
• Protection Rating: IP67 probe tip, IP54 probe cable
• Safety Rating: CAT IV 600V
• Connectivity: USB-C
• Software: Compatible with FLIR Thermal Studio
